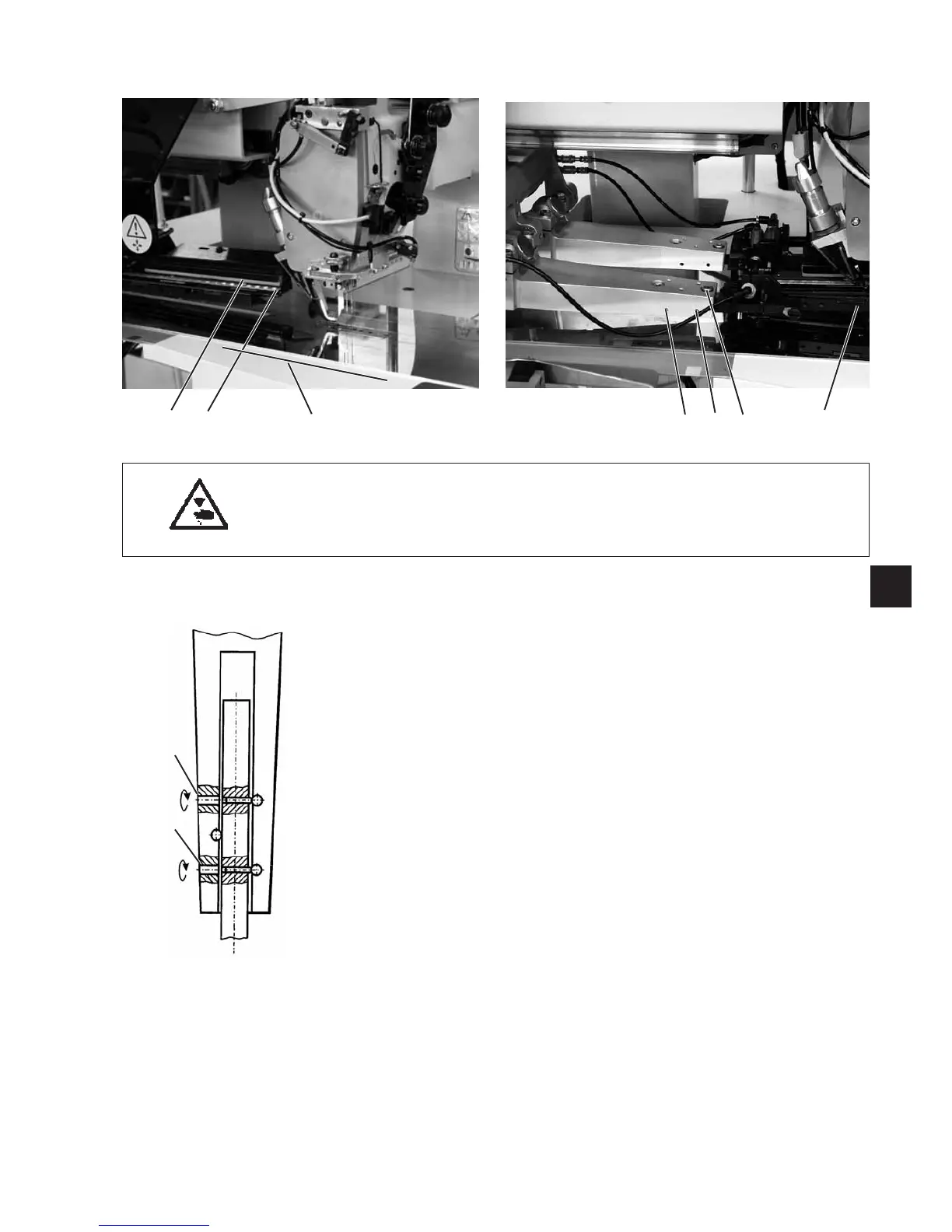

4.2 Aligning the feeding clamps as to the auxiliary line
Caution: Danger of injury !
Switchthemainswitchoff.
Check the parallel position of the feeding clamps only with the sewing
unit switched off.
Standard checking
The feeding clamps 5 must be in parallel position to the pick-up folder
and to the auxiliary line 2.
–
Push the feeding clamps into the pick-up folder area.
–
Check the parallel position of the inner edge of the feeding clamps
to the auxiliary line 2.
Correction
–
Loosen the tightening screws 6 slightly.
–
Set the feeding clamp 5 in parallel position by means of the Allen
screws 7 and 8 (SW 2).
For this purpose please proceed as follows:
–
Turn the Allen screws 7 and 8 to the right or to the left until the
parallel position is reached.
–
Tighten the Allen screws 7 and 8 slightly.
–
Tighten the tightening screws 6.
3
57
54 2 876 5
8
7
