DURKOPP ADLER 745-34 Speedpocket

3

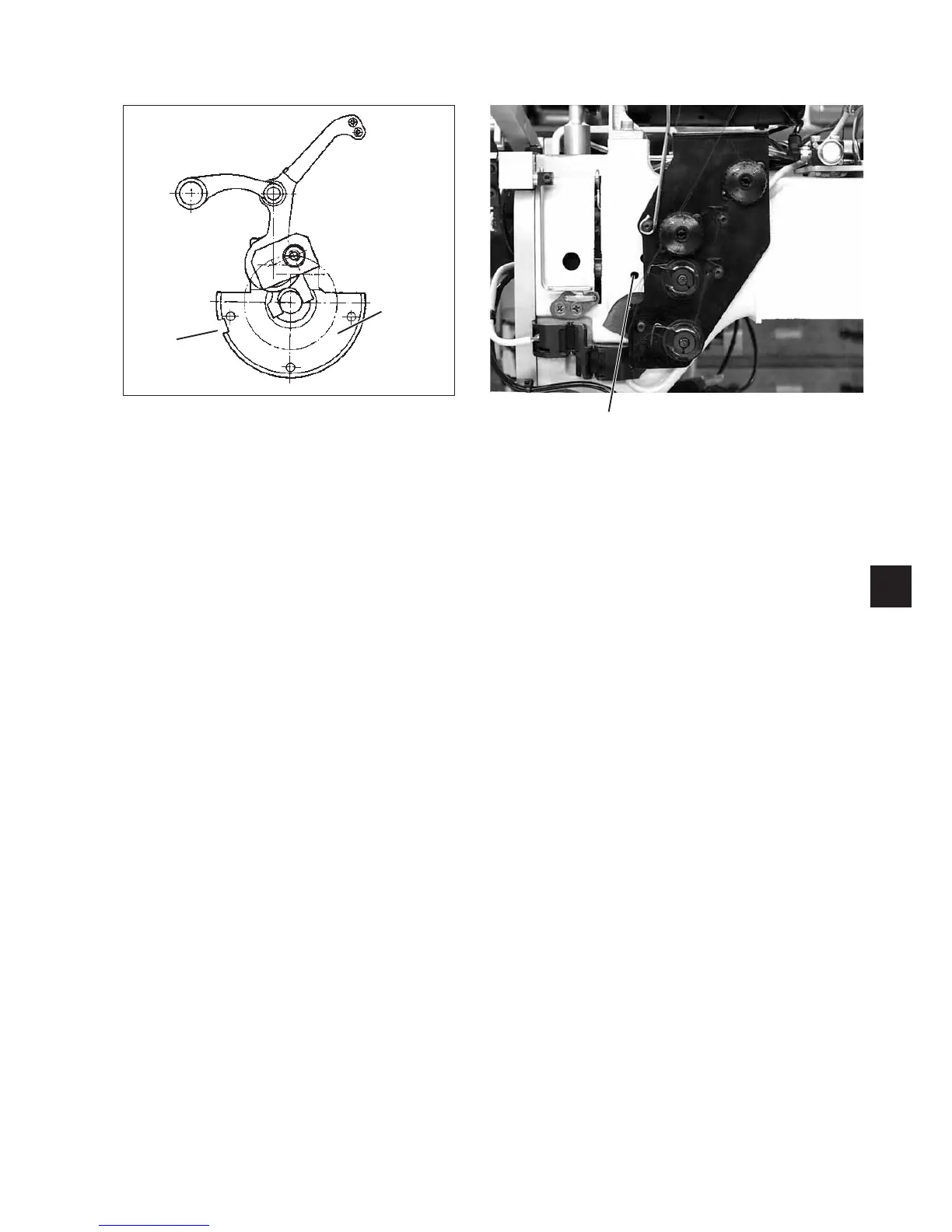

1.2 Groove in the arm shaft crank
The arm shaft crank 1 is provided with a groove 2 (5 mm).
The machine head can be staked out with the locking peg through
drill-hole 3.
Now the machine head is in looping stroke position
(position A).
