11. Stacker
The basic stacker settings mentioned hereafter have been made by the
manufacturer in factory 6.
They have to be corrected in exceptional cases only.
Caution: Danger of injury !
Before carrying out any adjustment work switch off the main switch and
separate the s tacker from the compressed air supply.

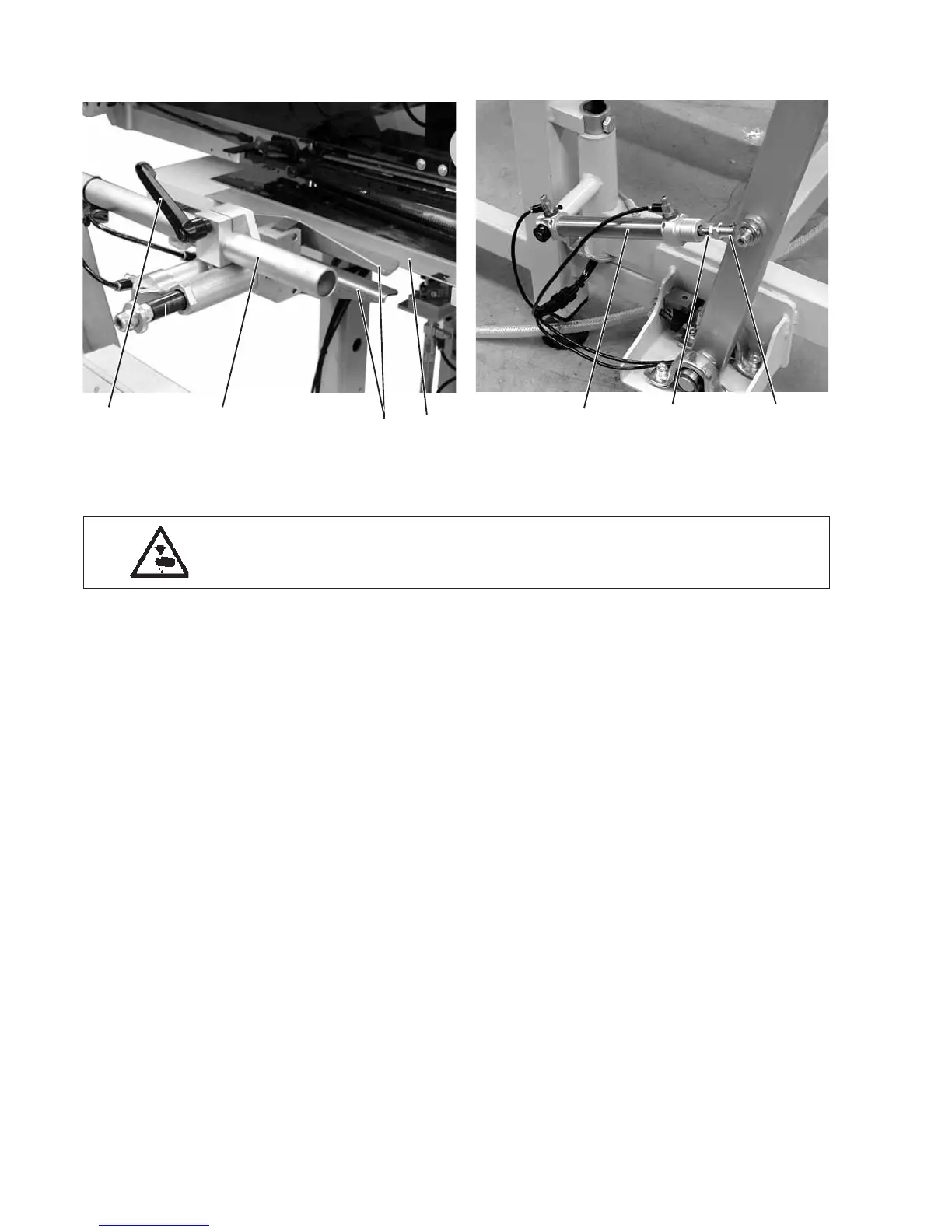

11.1 Position of the pincers to the table top
Standard checking
The open pincers 1 should be positioned to the table top in such a way
that the sewing material can be fed unhindered.
Correction
–
Loosen counternut 5.
–
Turn the joint head 4 on the piston rod of c ylinder 6.
–
Tighten counternut 5.
11.2 Height of the pincers
Standard checking
The closed pincers 1 should be on the level of plate 7 in the table top.
Correction
–
Loosen the clamping lever 3.
–
Press the pincers 1 to the front by hand until the pincers closes.
–
Tighten the clamping lever 3.
By loosening the clamping lever 3 the pincers can also be shifted on
theaxle2inbothdirections.
78
65 432 17
