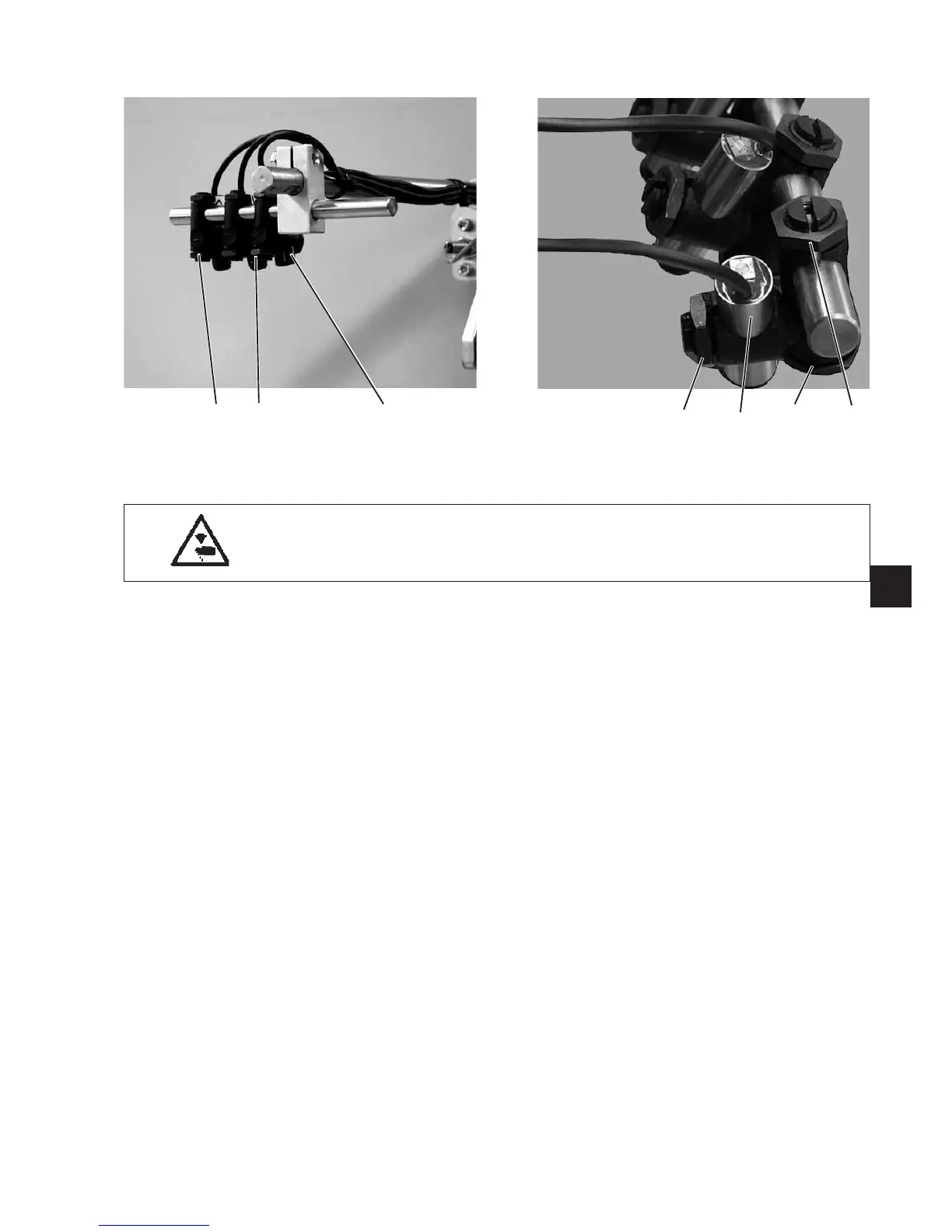

6.1 Aligning the markings
Caution: Danger of injury !
Laser light.
Do not look into the light source.
The markings 13 mark the seam beginning, the markings 14 the middle
of the pocket opening and the markings 15 the s eam end.
The markings 1 and 3 must be aligned as to the cutting line 6 (middle
of pocket opening).
The distance between the middle of the pocket opening and the
measuring line 6 must amount to 125 mm.
–
Loosen the clamping nuts 9 and 10 slightly.
–
Align distance and angle of the laser module to the cutting line 6 by
shifting and turning.
–
Tighten the clamping nuts 9 and 10.
–
Loosen the clamping nut 12 slightly.
–
Align the laser line by turning the laser 11.
–
Tighten the clamping nuts 12 again.
After adjustment of the markings please consider the following in any
case:
–
Check the markings and their alignment as to the middle of the
pocket.
–
Observe the maximum sewing area.
3
67
12 11 10 9
15 14 13
