Maintenance Manual (960-948) 4-24
Replacement Procedures
4.20.3 Installing the W-LAN ANTENNA
To install the W-LAN ANTENNA, follow the steps below.
1. Stick the W-LAN ANTENNA MAIN (white cable) to the CORNER CAP R
and WLAN ANTENNA AUX (black cable) to the CORNER CAP L.
2. Arrange the Wireless LAN antenna cables as below and fix them with
the INSU.
3. Set the CORNER CAP L and CORNERCAP R to the COVER ASSY
and secure them with the screws.

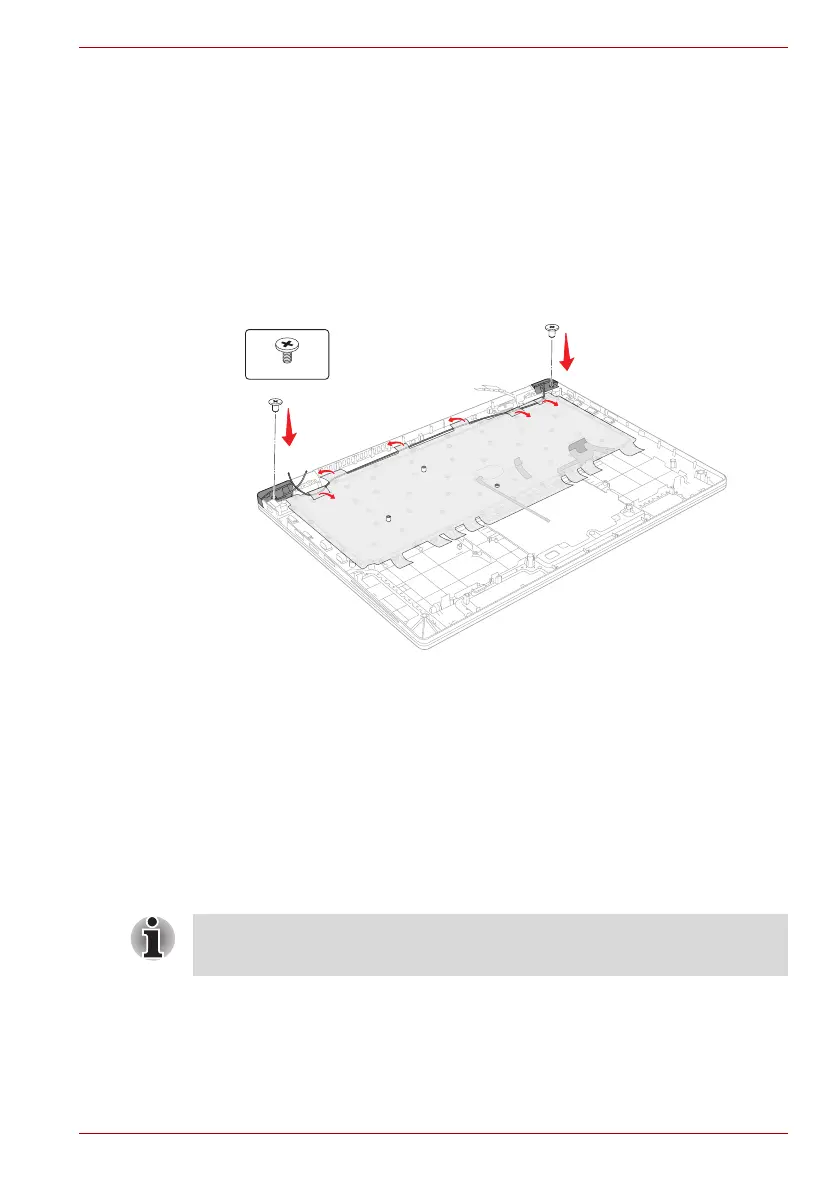

Figure 4-22 Installing the W-LAN ANTENNA
4.21 3G antennas
4.21.1 Removing the 3G antennas
To remove the 3G antennas , follow the steps below.
1. Peel off the insulators securing the 3G antennas cables and 3G
harness.
2. Release the 3G antenna cables from the guides on the Cover
Assembly.
3. Peel off the 3G antennas from the Cover Assembly.
S2 x 3CT
Do not reuse the removed 3G antennas. Be sure to use new 3G
antenna.
