Maintenance Manual (960-948) 1-2
Hardware Overview

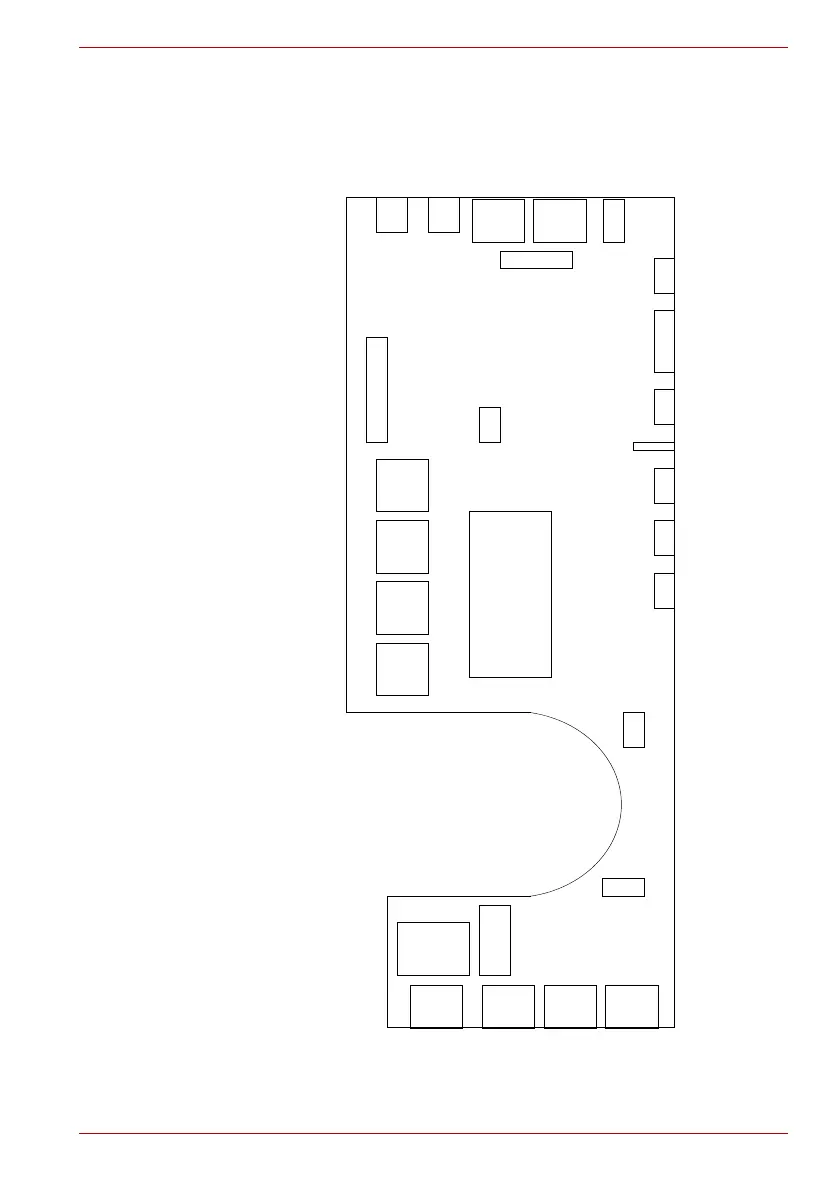

Figure 1-1 System unit configurations
CPU
LPDDR5 MEM
CN5390
LCD I/F
Audio Jack
Speaker I/F
SSD I/F
Finger sensor F/I BKF/I DAP
Battery
J6320
CN6290CN9550 0423NC0159NC
CN8021
CN3270
Blacklight
Smart Card
CN2170
FCR3SY*
USB-A
Port 1
(S&C)
CN4850
LAN I/F
J4050
Micro SD
Card I/F
IS2142
Nano SIM
Card I/F
IS2621
CN4800
CN4821
USB-C
Port 1
USB-C
Port 2
HDMI I/F
CN5590
CN4860
USB-A
Port 2
WLAN
IC2630
CN2610
3G/5G(M.2)
CN3380
FAN I/F
CN1900
IC1410IC1430IC1450IC1470
IC1050
EC debug
CN9000
BIOS debug
CN3520
