dynabook Portege X30L-K Series - Figure 4-38 Removing the LCD Unit (2); Figure 4-39 Removing the LCD Unit (3)

Maintenance Manual (960-948) 4-34
Replacement Procedures

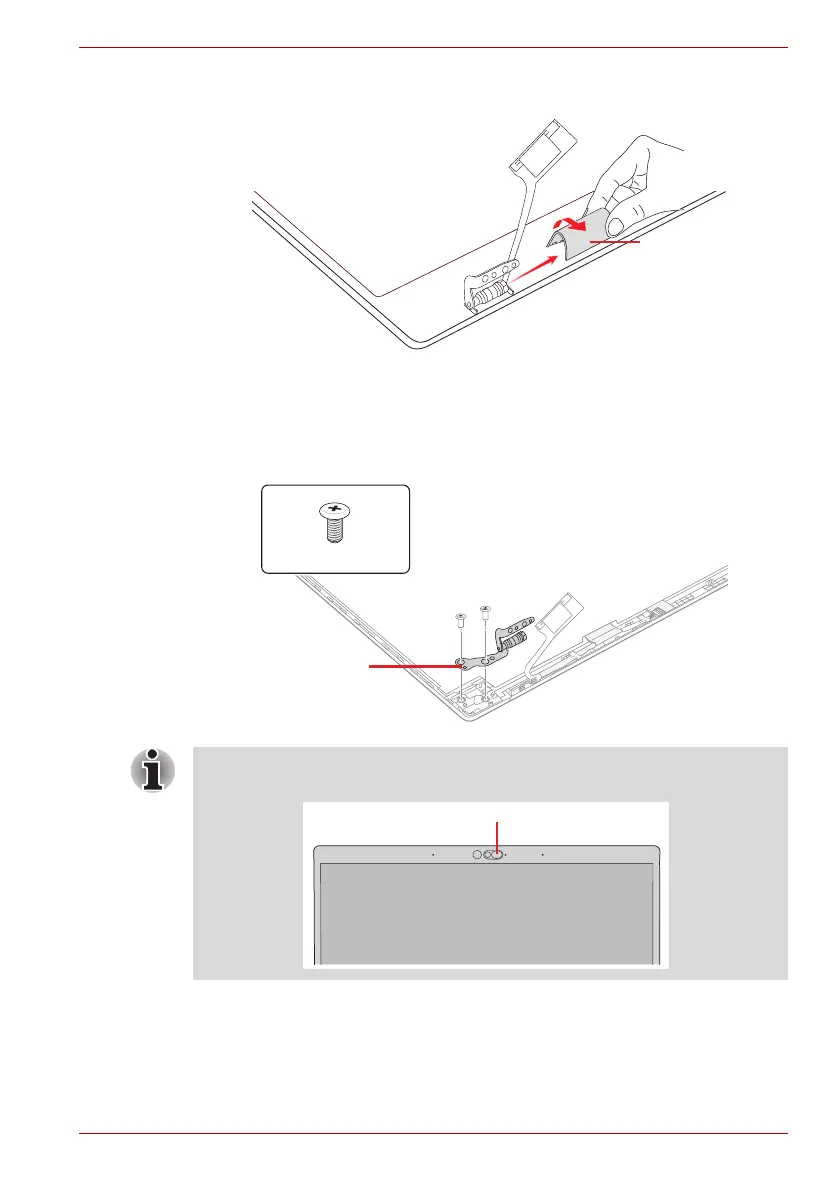

Figure 4-38 Removing the LCD unit (2)
3. Release the latches and remove the LCD MASK ASSY from the LCD
COVER ASSY.
4. Release the following screws and remove the left & right hinges.
Figure 4-39 Removing the LCD unit (3)
5. Grasp the bound & detach tapes and pull out the tapes slowly and
parallelly from the LCD cover.
hinge cap
S2.5×2.5CT
hinge
The Web Camera Shutter is attached to the LCD mask by magnet. Please
be care not to lose it during removing the LCD mask.
Web Camera Shutter
