dynabook Portege X30L-K Series - Figure 4-42 Installing the LCD Unit (1)

Maintenance Manual (960-948) 4-36
Replacement Procedures
1. Connect the LCD harness to the connector on the LCD unit and secure
it with the pull tape and glass tape.
2. Peel off the separators on the bound & detach tapes on the LCD cover.
Figure 4-42 Installing the LCD unit (1)
3. Set the LCD unit in place.
4. Arrange the LCD harness under the guides of the LCD cover.

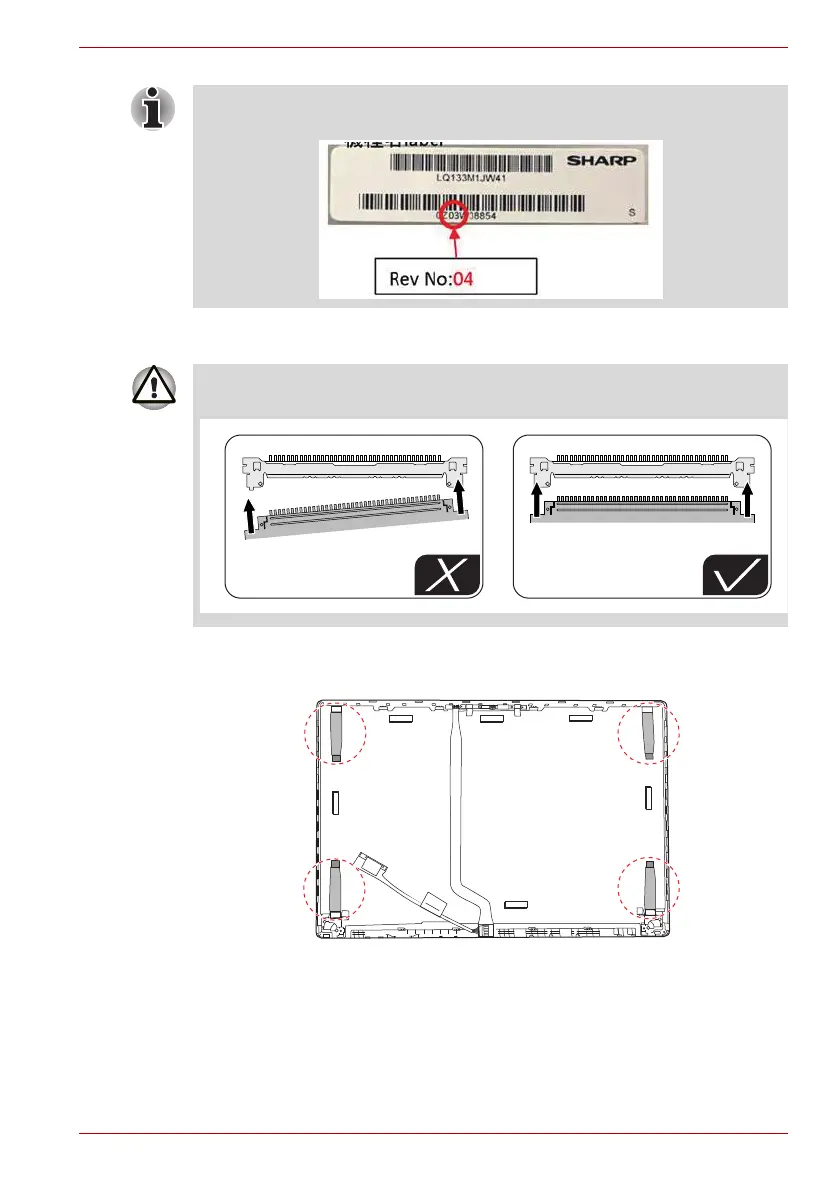

When the LCD unit is Sharp LCD, please check the FW Rev. first. Make
sure to install a Sharp LCD of FW Rev.04 or later.
When connect the LCD harness, make sure to connect the right and left
side at the same time as shown in the figure below.
