dynabook Portege X30L-K Series - Speaker; Figure 4-23 Installing the Wireless Antenna

Maintenance Manual (960-948) 4-25
Replacement Procedures
4.21.2 Installing the 3G antennas
To install the 3G antennas, follow the steps below.
1. Stick new 3G antennas (Aux/Main) in place.
2. Arrange the 3G antenna cables and 3G harness in place, and fix them
with the insulators.

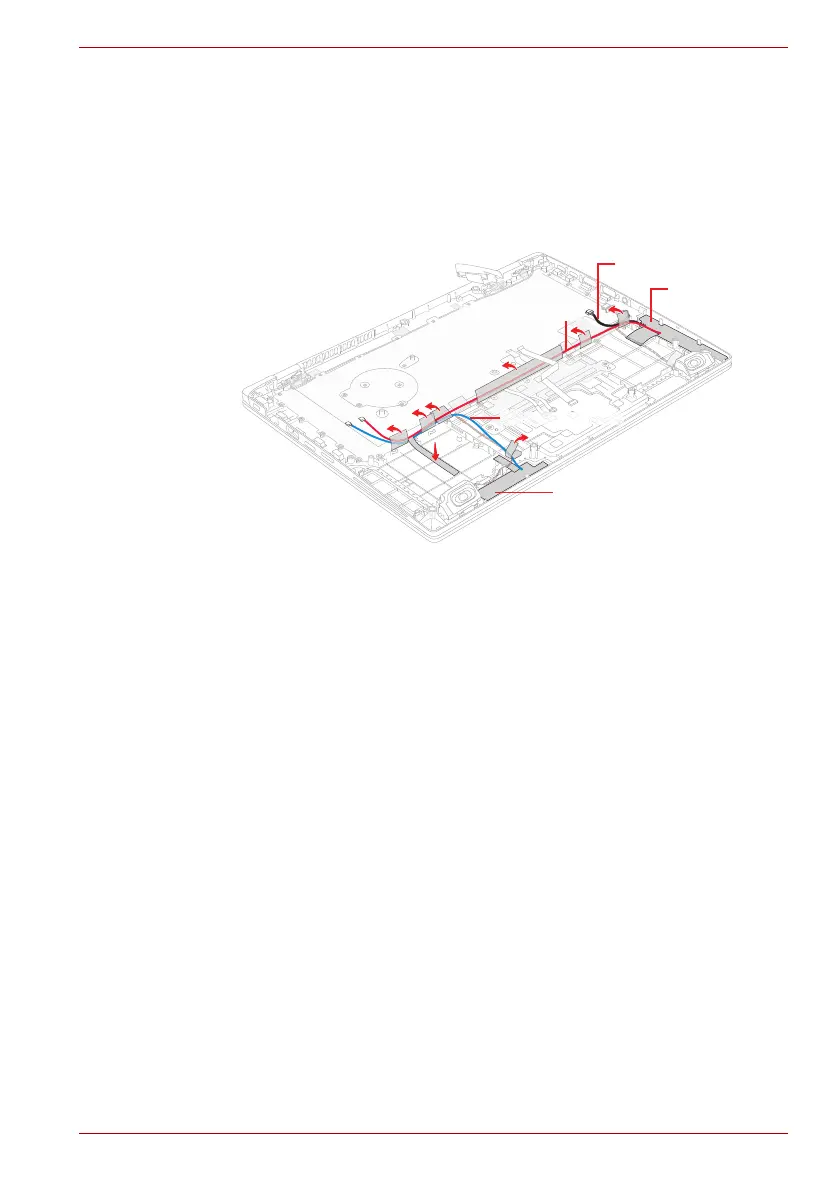

Figure 4-23 Installing the wireless antenna
4.22 Speaker
4.22.1 Removing the Speaker
To remove the Speaker, follow the steps below.
1. Open the INSU and stick tapes. Release the Speaker harness from the
guides.
3G antenna
(Main)
3G harness
3G antenna cable
3G antenna cable
enna ca
an
a
a
b
3
b
3G antenna cable
3G antenna
(AUX)
