dynabook Portege X30L-K Series Maintenance Manual

Maintenance Manual (960-948) B-2

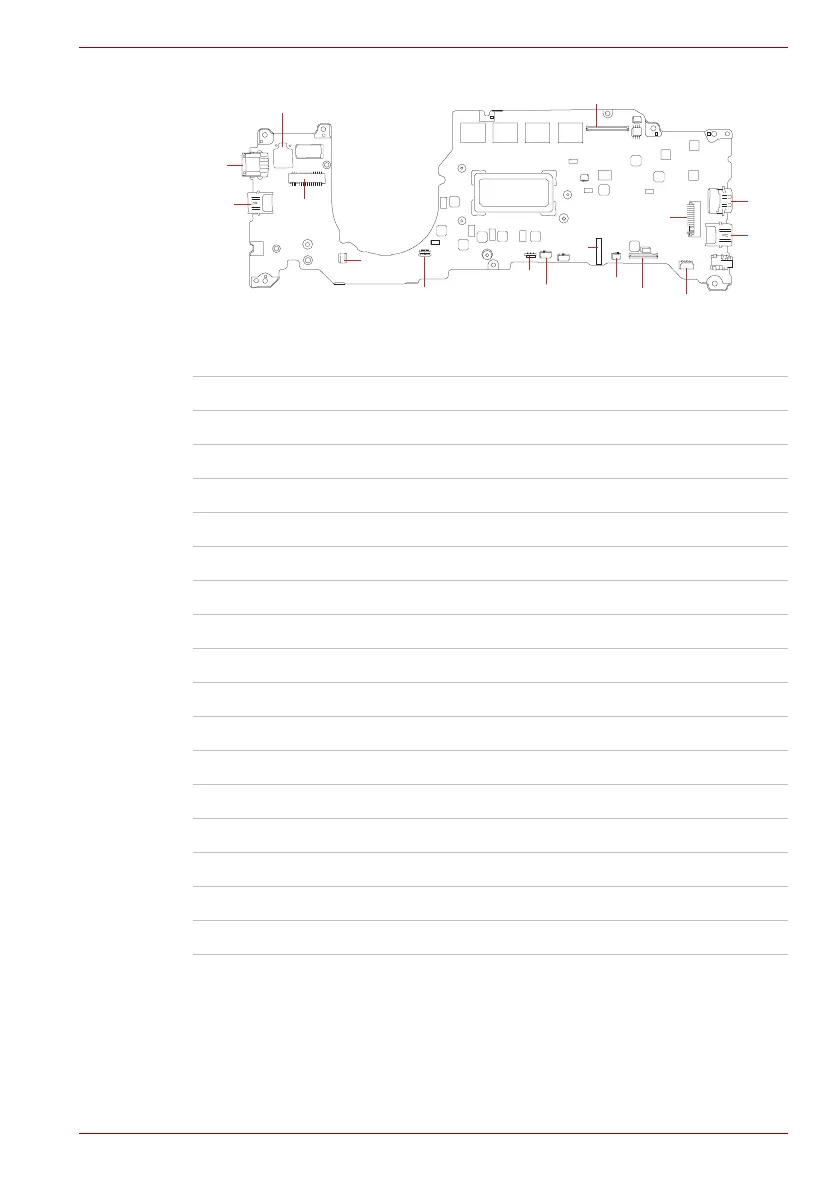

Board Layout
Table B-2 System Board (FCR3SY*) connectors (back)
Number Name
J4050 LAN interface connector
CN4850 USB Type-A I/F connector
IC2630 W-LAN I/F connector
CN2610 3G/LTE I/F connector
CN3380 FAN I/F connector
CN2170 SmartCard I/F connector
CN3270 Keyboard Backlight interface connector
CN9510 Click pad (touch pad) I/F connector
CN8021 Battery I/F connector
CN9550 Fingerprint sensor I/F connector
CN3240 Keyboard I/F connector
CN6290 Speaker I/F connector
CN1900 SSD interface connector
CN4860 USB Type-A I/F connector
CN5590 HDMI I/F connector
CN5390 LCD/Webcam I/F connector
J4050
CN4850
CN5590
CN4860
IC2630
CN2610
CN3380
CN5390
CN9510
CN9550
CN3240
CN6290
CN1900
CN2170
CN3270
CN8021
