Maintenance Manual (960-948) 4-30
Replacement Procedures

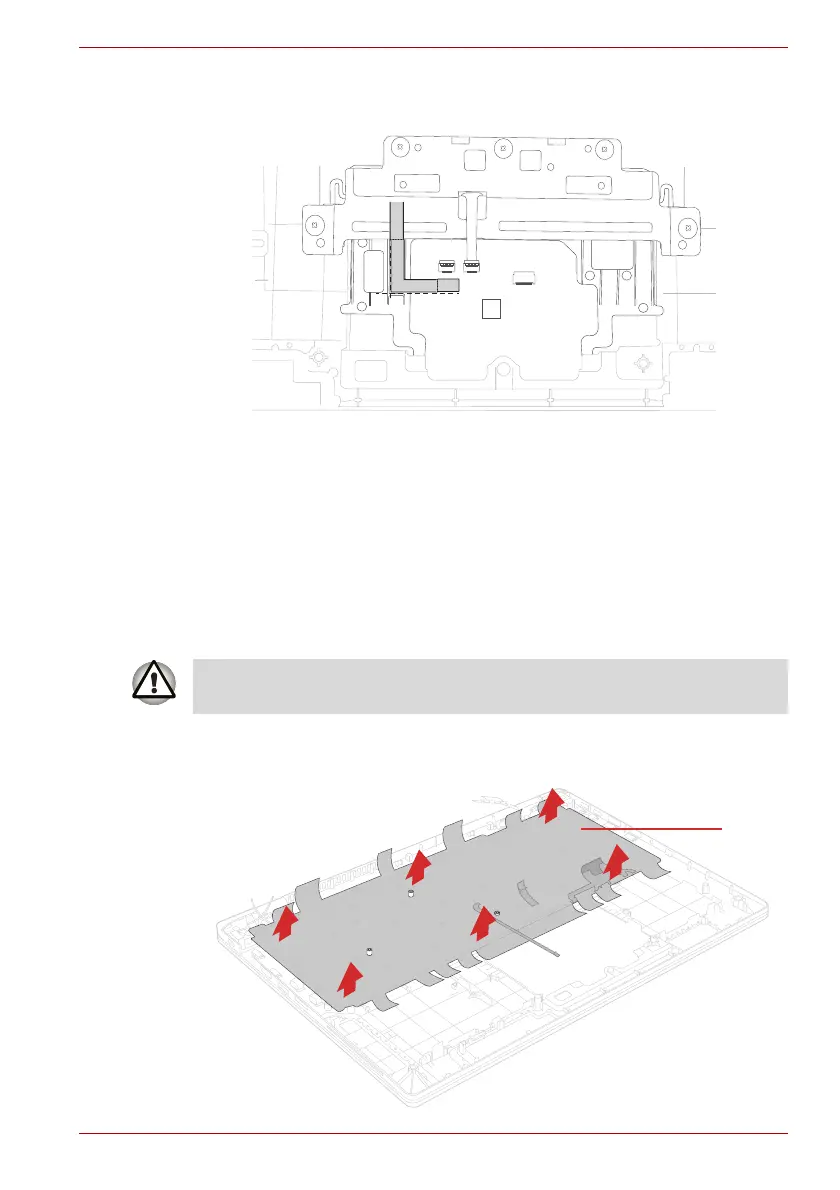

Figure 4-31 Installing the dual button unit/Click pad (3)
8. Stick a new DUAL BUTTON INSU to the dual button plat in place.
9. Connect the Dual button FPC to the connector on the Click Pad.
10. Connect the Click Pad FFC, Fingerprint FFC and Accupoint FPC to
the connector on the Click Pad.
4.24 Keyboard
4.24.1 Removing the Keyboard
To remove the keyboard, follow the steps below.
1. Peel off the INSU KB.
Figure 4-32 Removing the keyboard (1)
As the keytop may fall out, when handling the keyboard, always hold it by
the frame and do not touch the key top.
