dynabook Portege X30L-K Series - Figure 4-4 Removing the Base Assembly (1); Figure 4-5 Removing the Base Assembly (2)

Maintenance Manual (960-948) 4-10
Replacement Procedures

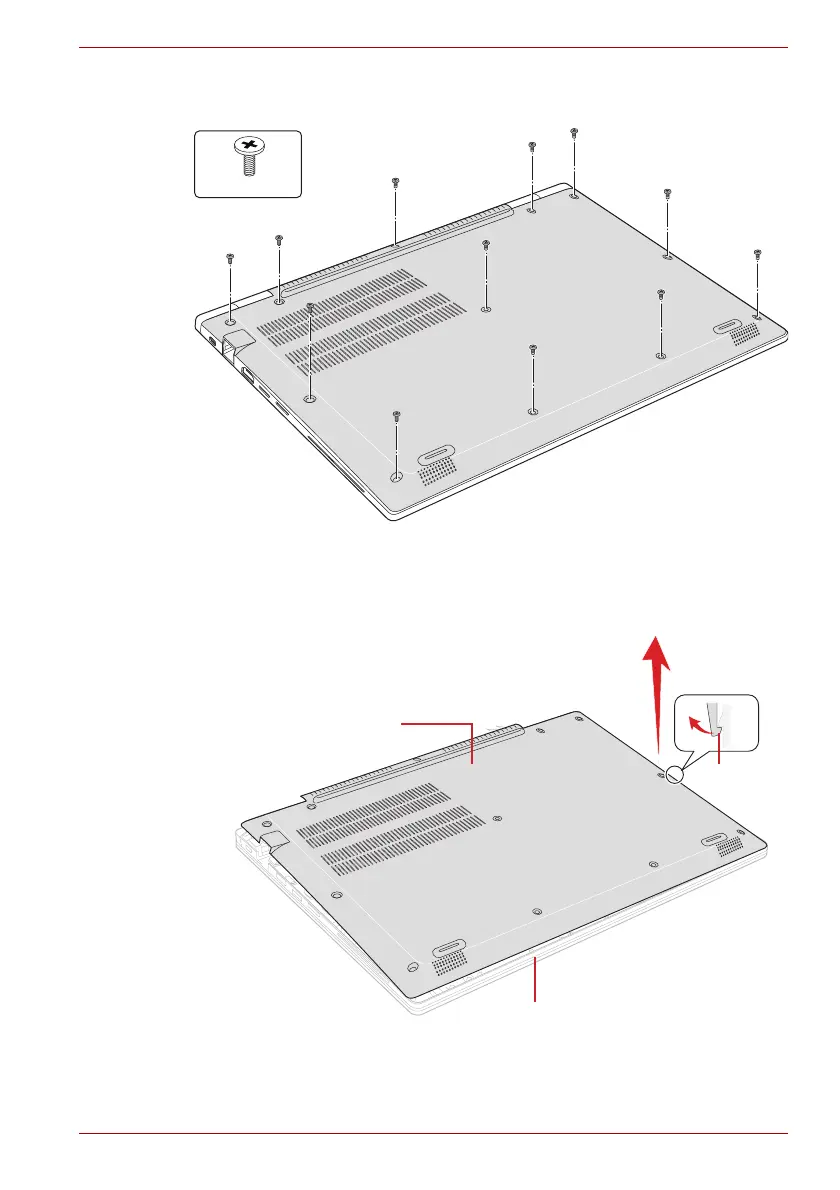

Figure 4-4 Removing the Base Assembly (1)
3. Separate the Base Assembly and Cover Assembly while releasing
the latch.
Figure 4-5 Removing the Base Assembly (2)
S2.5 x 6BT
Base assembly
Latch
Cover Assembly
