Maintenance Manual (960-948) 4-38
Replacement Procedures

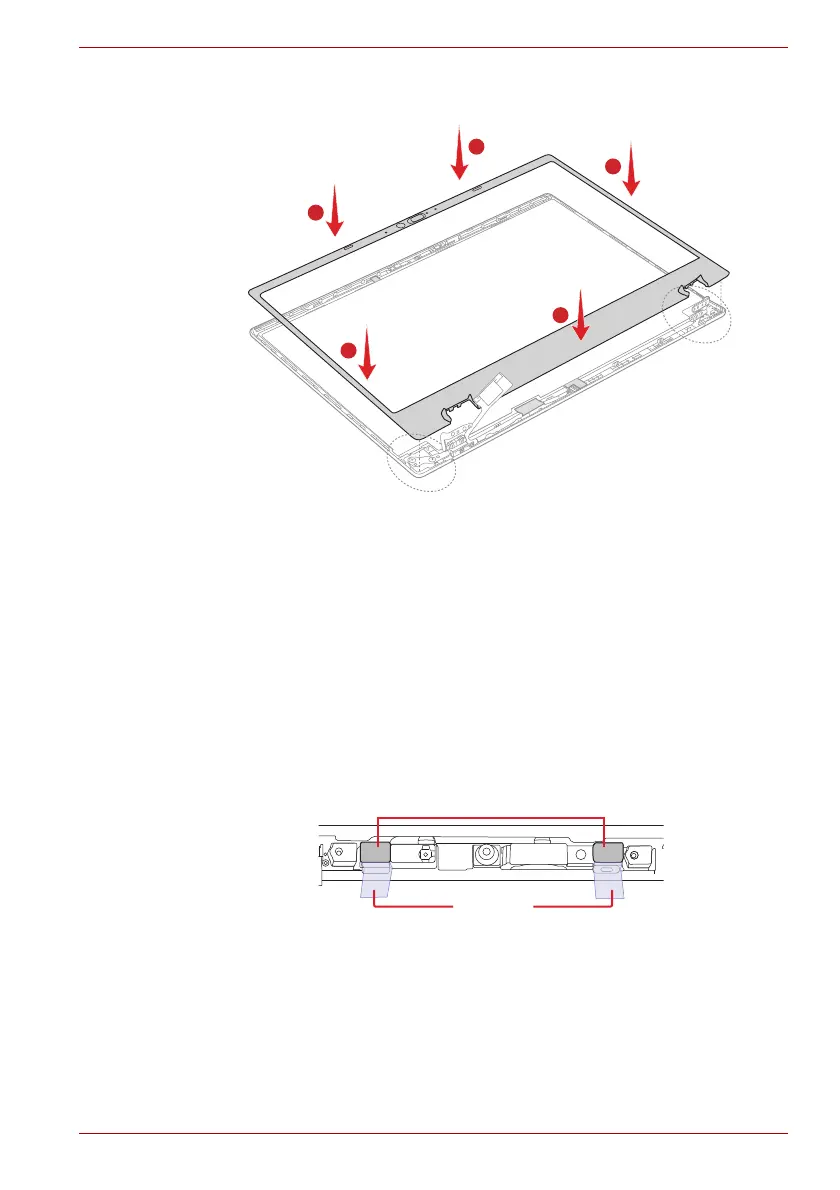

Figure 4-45 Installing the LCD unit (4)
7. Set both hinge caps while engaging the latches.
8. Set the LCD Assembly on the Cover Assembly and secure them with
the screws.
4.26 Camera module
4.26.1 Removing the Camera module
To remove the camera module, follow the steps below.
1. Peel off two pieces of GASKET and AL TAPE on the camera module.
Figure 4-46 Removing the camera module (1)
2. Peel off the HD web CAM FPC/IR CAM FPC from the LCD cover.
3. Disconnect the FPC from the connector on the camera module.
1
2
2
3
3
AL TAPE
GASKET
