dynabook Portege X30L-K Series - Figure 4-13 Removing the Smart Card Slot (3)

Maintenance Manual (960-948) 4-17
Replacement Procedures

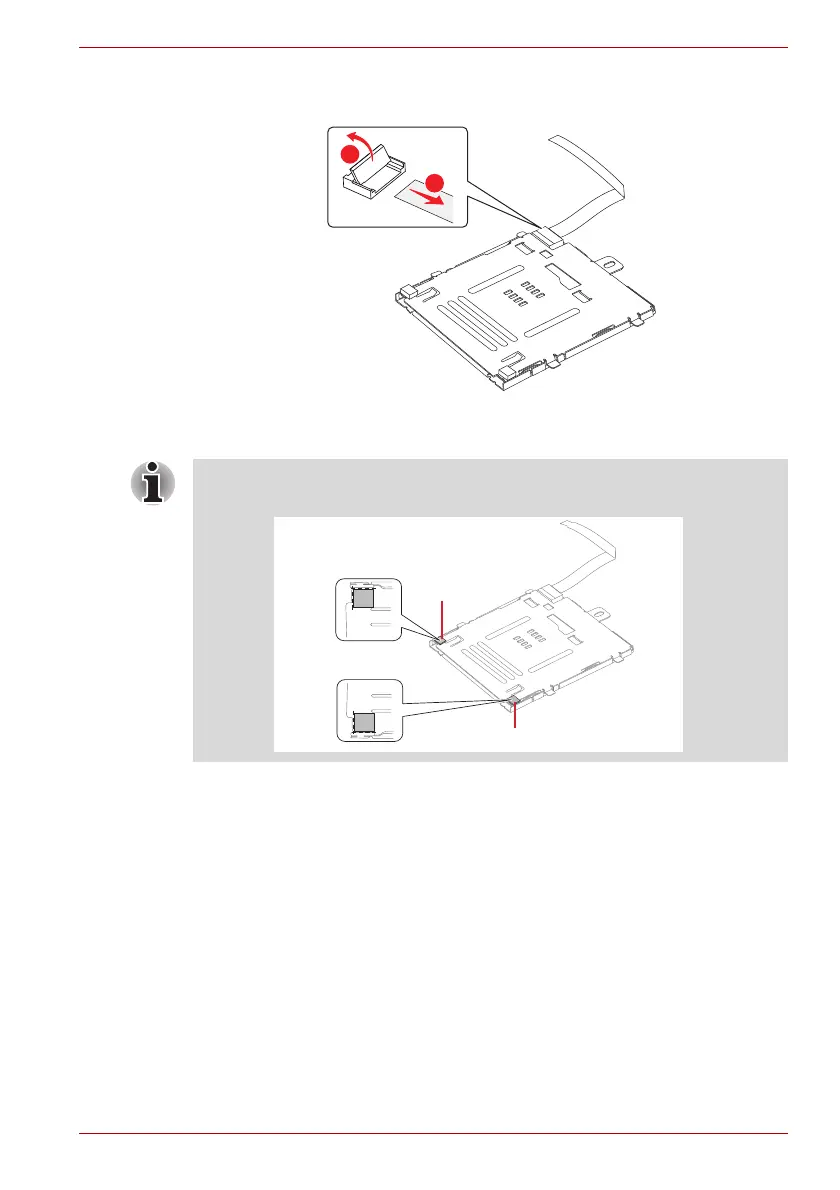

Figure 4-13 Removing the Smart Card slot (3)
4.16.2 Installing the Smart Card slot
To install the Smart Card slot, follow the steps below.
1. Connect the Smart Card slot FFC to the connector on the Smart Card
slot.
2. Set the Smart Card slot in place and secure it the with the screw.
3. Connect the Smart Card slot FFC to the connector CN2170 on the
system board.
4. Install the WLAN MAIN holder in place.
2
1
When replacing the Smart Card slot with a new one, stick two pieces of
SQUARE CHUSION on the Smart Card slot.
Square cushion
Square cushion
