dynabook Portege X30L-K Series Maintenance Manual

Maintenance Manual (960-948) B-1
Appendix B
Board Layout

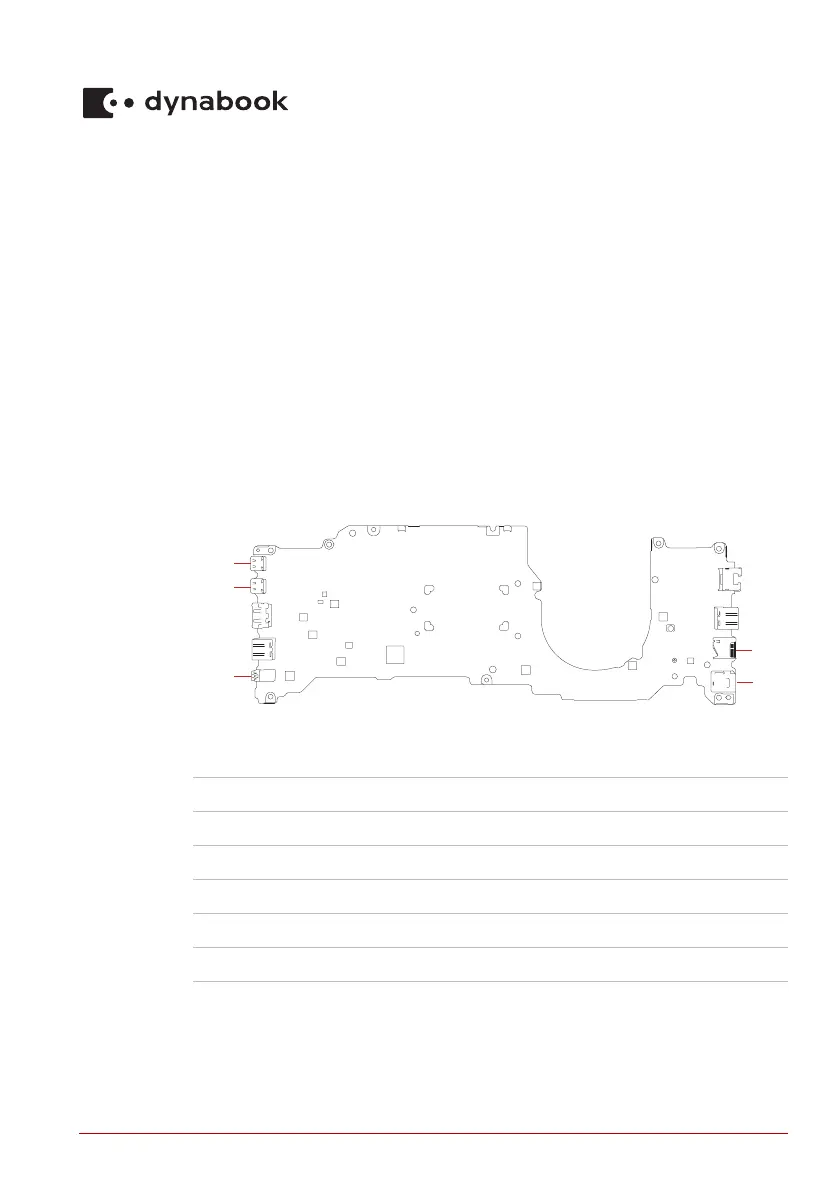

B.1 System Board (FCR3SY*) Front View
Figure B-1 System Board (FCR3SY*) layout (front)
Table B-1 System Board (FCR3SY*) connectors (front)
B.2 System Board (FCR3SY*) Back View
Figure B-2 System Board (FCR3SY*) layout (back)
Number Name
IS2142 Micro SD I/F connector
IS2621 Nano SIM card I/F connector
J6320 HeadPhone/Mic jack
CN4800 USB Type-C I/F connector
CN4821 USB Type-C I/F connector
IS2142
IS2621
CN4800
CN4821
J6320
