dynabook Portege X30L-K Series Maintenance Manual

Maintenance Manual (960-948) 4-18
Replacement Procedures

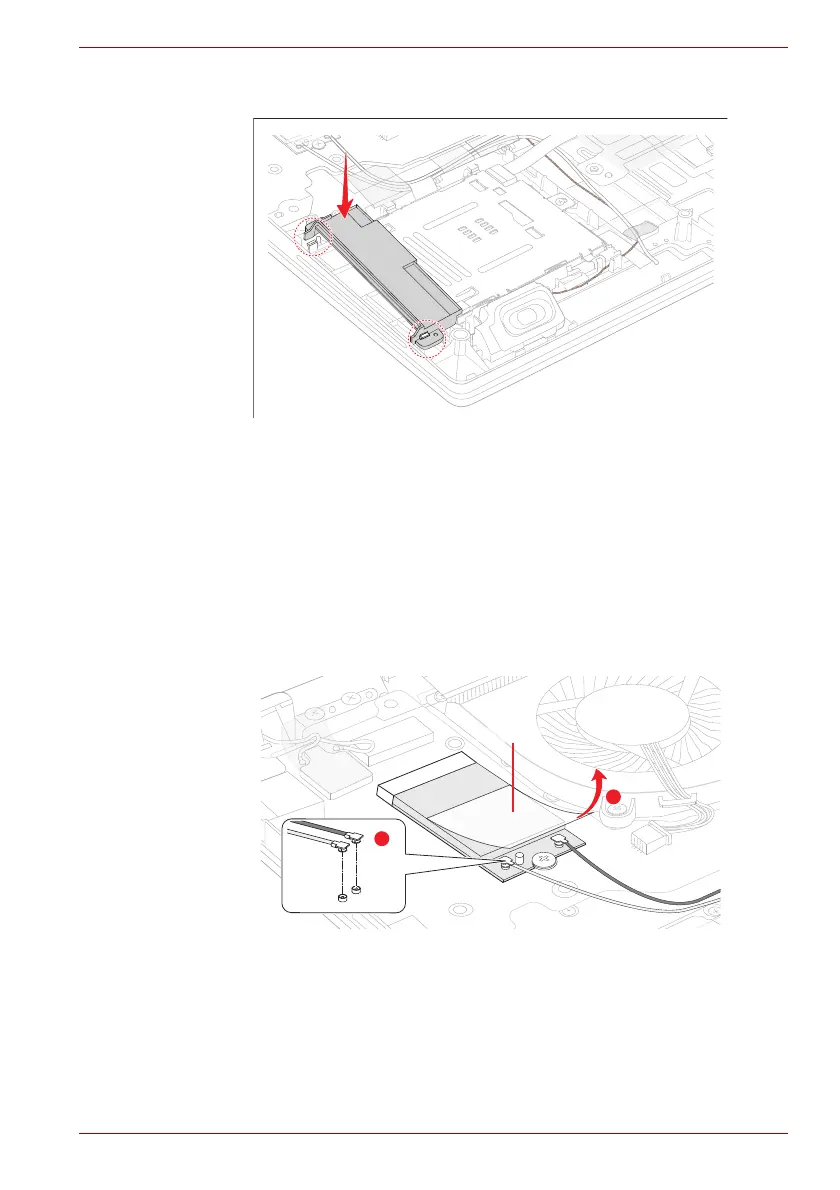

Figure 4-14 Installing the Smart Card slot
4.17 3G module
4.17.1 Removing the 3G module
To remove the 3G module, follow the steps below.
1. Peel off the INSU LTE.
2. Disconnect the 3G ANTENNA cables from the connectors on the 3G
MODULE. (red tube from “MAIN”)
Figure 4-15 Removing the 3G module (1)
3. Remove the following screw and disconnect the 3G MODULE from the
connector CN2610 on the System Board.
2
1
NSU
L
T
L
T
INSU LTE
