dynabook Portege X30L-K Series Maintenance Manual

Maintenance Manual (960-948) 4-28
Replacement Procedures

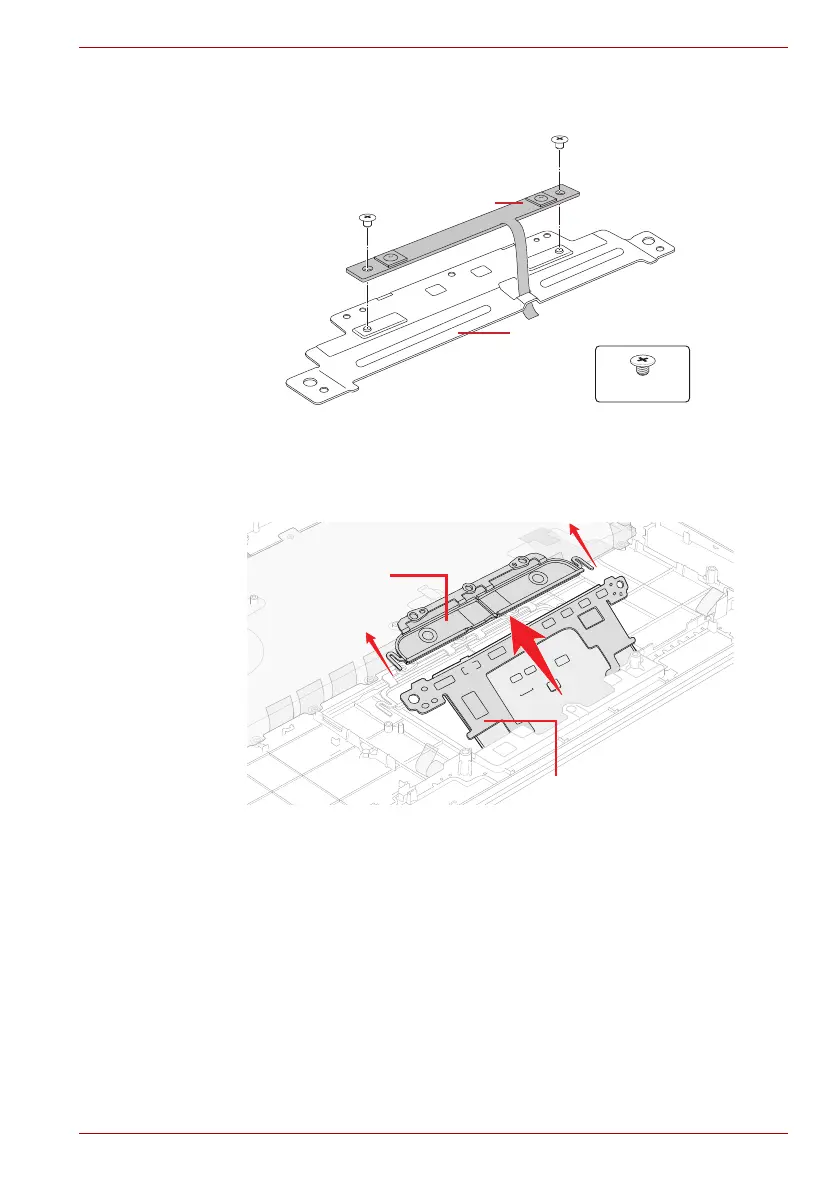

Figure 4-27 Removing the dual button unit/Click pad (3)
5. Remove the Dual button and Click Pad RIM ASSY from the Cover
Assembly.
Figure 4-28 Removing the dual button unit/Click pad (4)
4.23.2 Installing the dual button unit/Click pad
To install the dual button unit and Click pad, follow the steps below.
1. Set the Dual button to the Cover Assembly in place.
2. Set the Click Pad RIM ASSY to the Cover Assembly.
S2x2BT
Dual button FPC
Click Pad plat
Click Pad RIM ASSY
Dual Button
