Dynacord PM 502 User Manual

Line level/USB

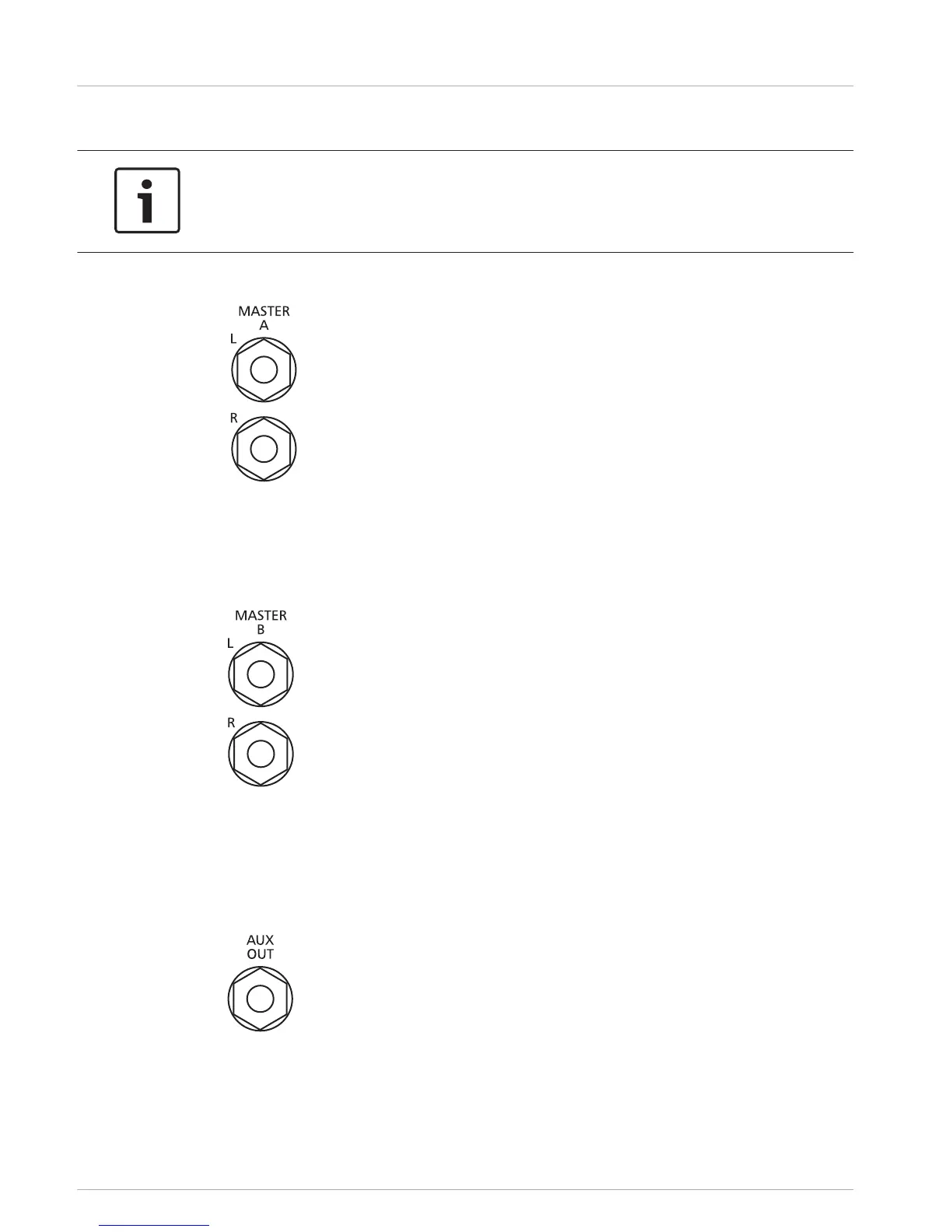

Notice!
All outputs are designed in Ground Sensing technology to prevent the induction of external
noise, even with long cables. Use balanced cables for the connection of external components
whenever it is possible.
MASTER A L/R
The MASTER A, L/R output signals are post master A volume control and mainly meant to feed
additional, external power amplifiers or DSP systems. The output is stereo/mono-switchable,
please refer to section Menu, page 26.
MASTER B L/R
The MASTER B, L/R outputs the L/R master audio signal is present that can be used for
additional monitoring, side fill and additional zone applications, or for the connection of a
delay-line or subwoofer. The output is stereo/mono switchable and also pre/post switchable.
Please refer to section Menu, page 26.
AUX OUT
This output provides connection for e.g. a power amplifier or active stage monitor speaker
systems. The AUX OUT can also be switched to master signal (pre or post) if a 3
rd
master out
signal is required. Please refer to section Menu, page 26.
5.3.2
14 en | Connection PM 502
15-May-14 | 02 | F01U297804 User manual Bosch Sicherheitssysteme GmbH

Dynacord PM 502 Specifications

General

Type	Stand mixer
Product color	Black
DJ mixer	-
USB port	Yes
Rack capacity	7U
Video capability	No
USB connector type	USB Type-B
Sample rate	48 kHz
Amplifier class	D
Frequency range	15 - 22000 Hz
Channels quantity	8 channels
Amplifier output power	1200 W
Supported sample rates	32, 44.1, 48 kHz
Digital sound processing	48 bit
Audio A/D Converter (ADC)	16-bit, delta-sigma
Equalizer bands quantity	7
Master (XLR) out	1
Line inputs (RCA)	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of microphone inputs	5
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	180 W

Weight and Dimensions

Depth	241 mm
Width	395 mm
Height	244 mm
Weight	4900 g
Package weight	6400 g
