Menu Lock Mode
Level 1 Level 2 Level 3 Custom
DEVICE SETUP 2 - - -
INFORMATION - - -
Table 6.4: Locking levels (- = available, X = locked)
Microphone processing (TALK OVER)
The integrated ducker of the PM 502 reduces the level of the signals at the STEREO inputs
whenever a signal is present at the MIC/LINE inputs (above the THRESHOLD level). If there is
no MIC/LINE signal present the STEREO signal automatically returns to its preset level. Please
refer to section Menu, page 26 how to edit the TALK OVER settings.

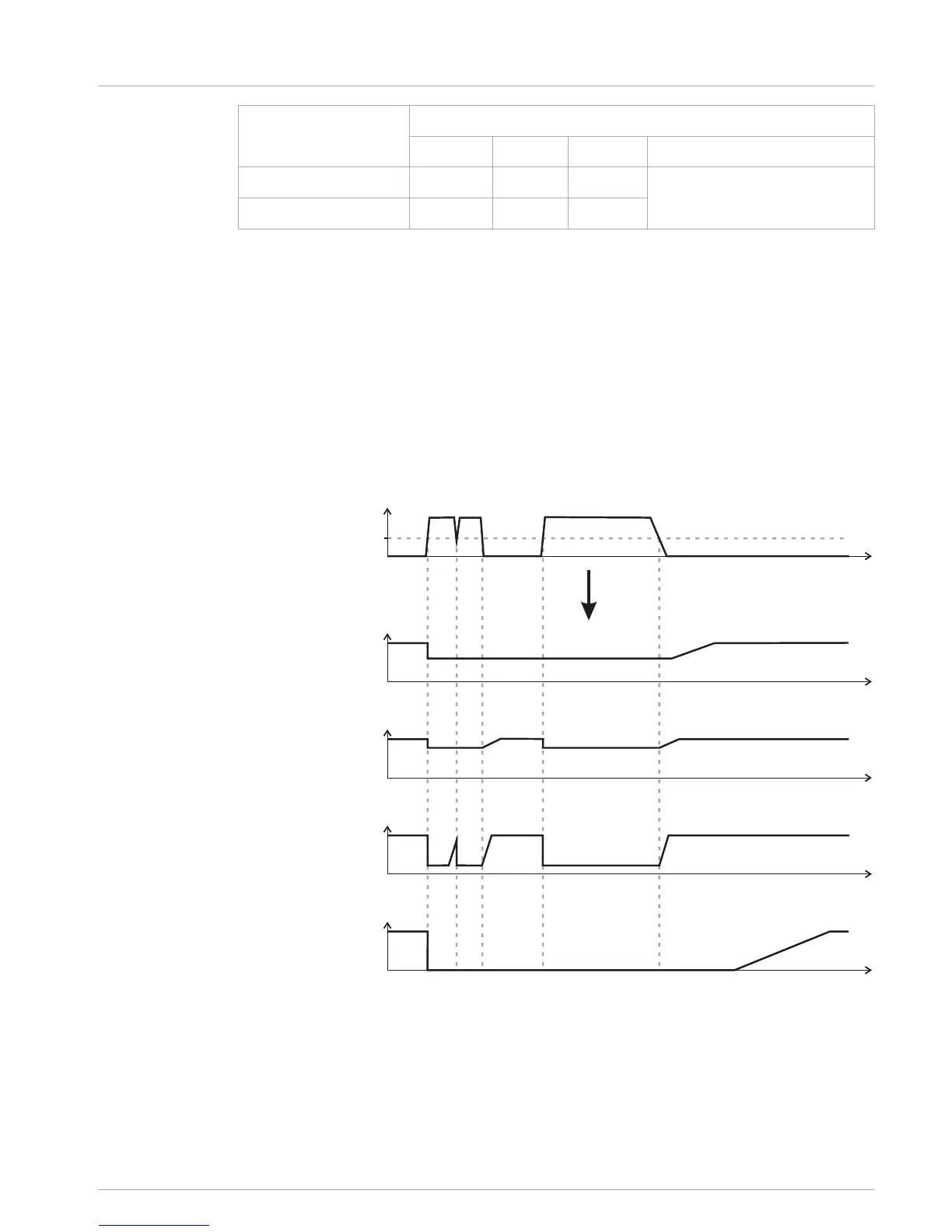

The following diagrams illustrate the available presets. The parameters of the ducker allow
adjusting the presets for your application.
Singer
Announcer
Instructor
Presenter
MIC/LINE
LEVEL
STEREO
LEVEL
STEREO
LEVEL
STEREO
LEVEL
STEREO
LEVEL
TIME
TIME
TIME
TIME
TIME
THRESHOLD
Figure 6.1: TALK OVER presets (the illustration is not to scale)
6.7
PM 502 Configuration | en 19
Bosch Sicherheitssysteme GmbH User manual 15-May-14 | 02 | F01U297804

Dynacord PM 502 Specifications

General

Type	Stand mixer
Product color	Black
DJ mixer	-
USB port	Yes
Rack capacity	7U
Video capability	No
USB connector type	USB Type-B
Sample rate	48 kHz
Amplifier class	D
Frequency range	15 - 22000 Hz
Channels quantity	8 channels
Amplifier output power	1200 W
Supported sample rates	32, 44.1, 48 kHz
Digital sound processing	48 bit
Audio A/D Converter (ADC)	16-bit, delta-sigma
Equalizer bands quantity	7
Master (XLR) out	1
Line inputs (RCA)	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of microphone inputs	5
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	180 W

Weight and Dimensions

Depth	241 mm
Width	395 mm
Height	244 mm
Weight	4900 g
Package weight	6400 g
