Display

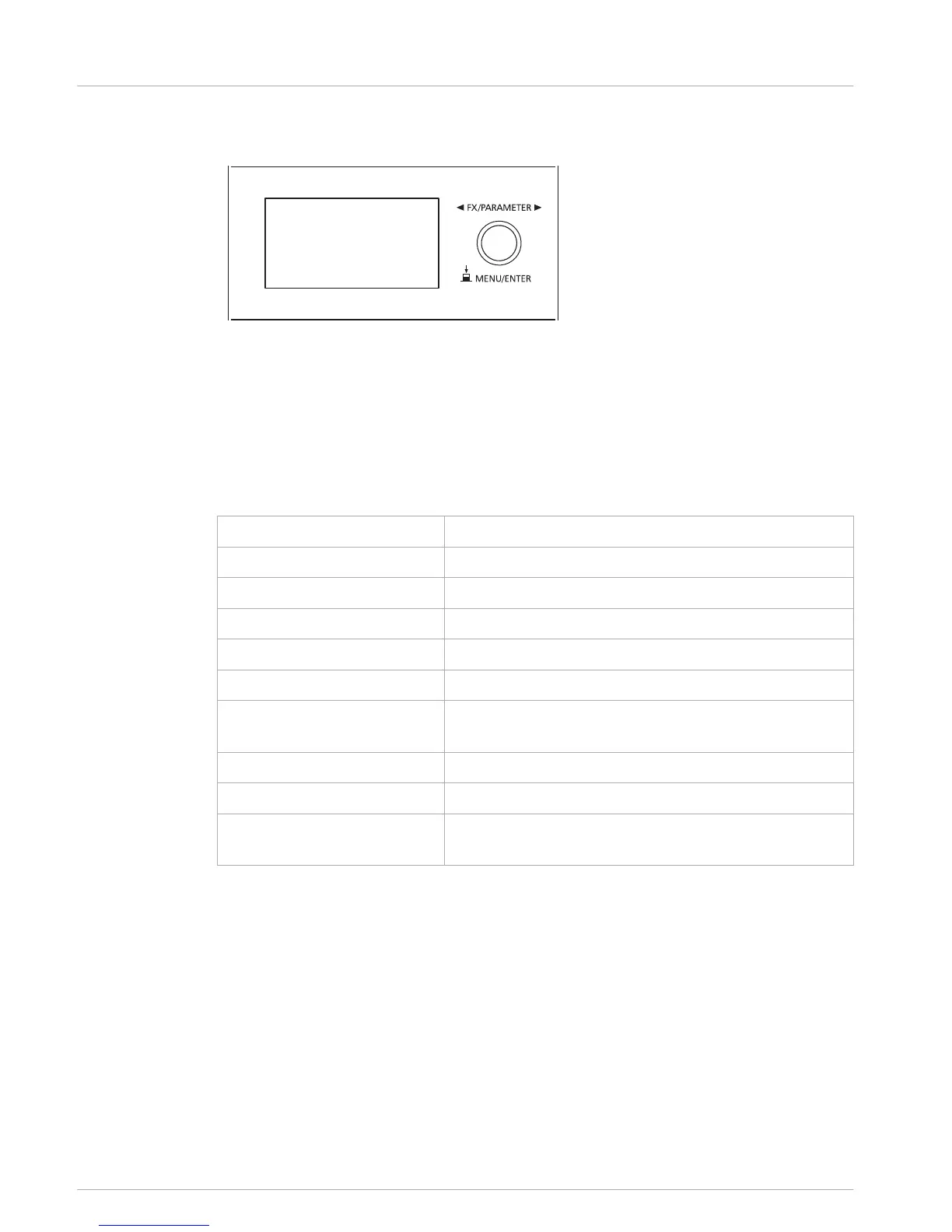

The PM 502 includes a back-lit LC-display.
Home screen
The home screen appears after switching the PM 502 on. After a few seconds the currently
selected effect (number and name) is displayed. If effect parameters have been edited, an “E”
is indicated next to the preset number. Turn the FX/PARAMETER rotary control to select
another effect.
In the lower part of the display settings of the channels MASTER A, MASTER B and AUX are
indicated, please refer to following table.
Icon
Description
/MIC LO CUT in menu MIC PROCESSING is activated.
POST The master routing of channel B is set to Post.
M The channel is set to Mono.
DLY The delay of the channel is activated.
MAS. A PRE or MAX. A POST Indicates the AUX Mode setting of the AUX channel.
Equalizer control icon The hardware equalizer controls are used to edit the
equalizer settings of this channel.
EQ The equalizer setting of the channel is not set to flat.
LIM The threshold of the output limiter has been edited.
Speaker icon Indicates the Amp Routing. If a Dual Amp Routing is
selected speakers for output channel 1 or 2 are indicated.
Table 7.1: Indicators in home screen
If the screensaver is activated the Dynacord logo and the device name (assigned in the DEVICE
SETUP menu) is indicated after some time.
Menu
Press the MENU/ENTER rotary encoder to access the menu.
In menu the MENU/ENTER rotary encoder is used for navigation and for selecting and editing
parameters. Turn the MENU/ENTER rotary encoder to the left or to the right to move the
cursor in the menu. Press the MENU/ENTER rotary encoder to select the highlighted menu
item. The value is shown in inverse font and can be edited by turning the MENU/ENTER rotary
encoder. Press the MENU/ENTER rotary encoder again to apply the edited parameter value.
Following table lists the content of the menu.
7.8
7.8.1
26 en | Operation PM 502
15-May-14 | 02 | F01U297804 User manual Bosch Sicherheitssysteme GmbH
