No. 60027, Issue 4. January 1998
5 Installation22
Power Source
Wiring of the lights is dependant on the source of the power. When the regulated
13.5 V Power Supply is fitted (SLM-TÜV), the lights are wired to Pin 5. When not
fitted (SLM), the lights are wired to Pin 16.
For convenience, the standard SLM which has no such regulator, has Pin 5
connected to Pin 16 internally. This allows the lights to be wired to Pin 5.
Pin 16 supplies the power to operate the lighting control circuits and also the
13.5 V regulator if fitted.

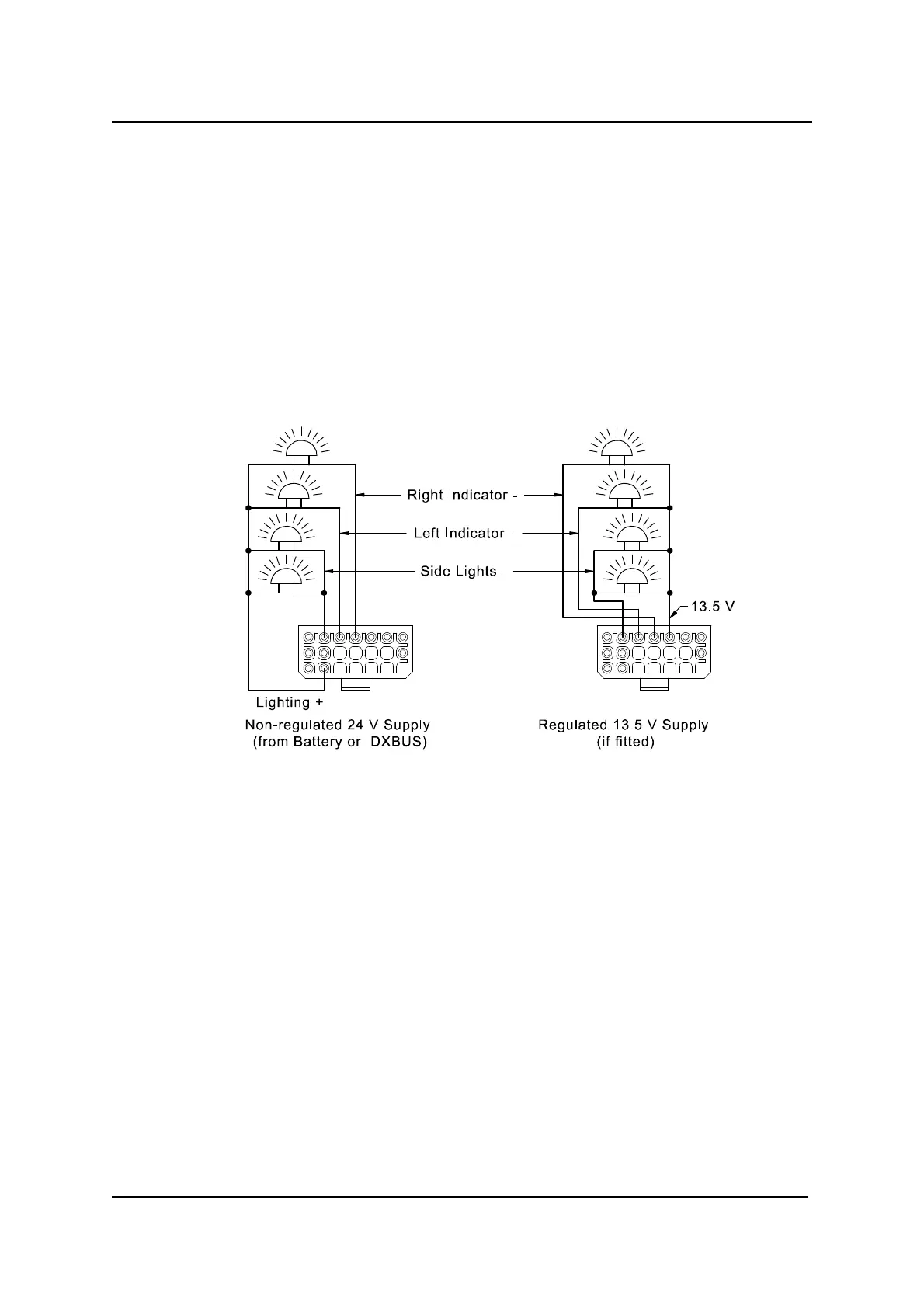

Example of Lighting Wiring
