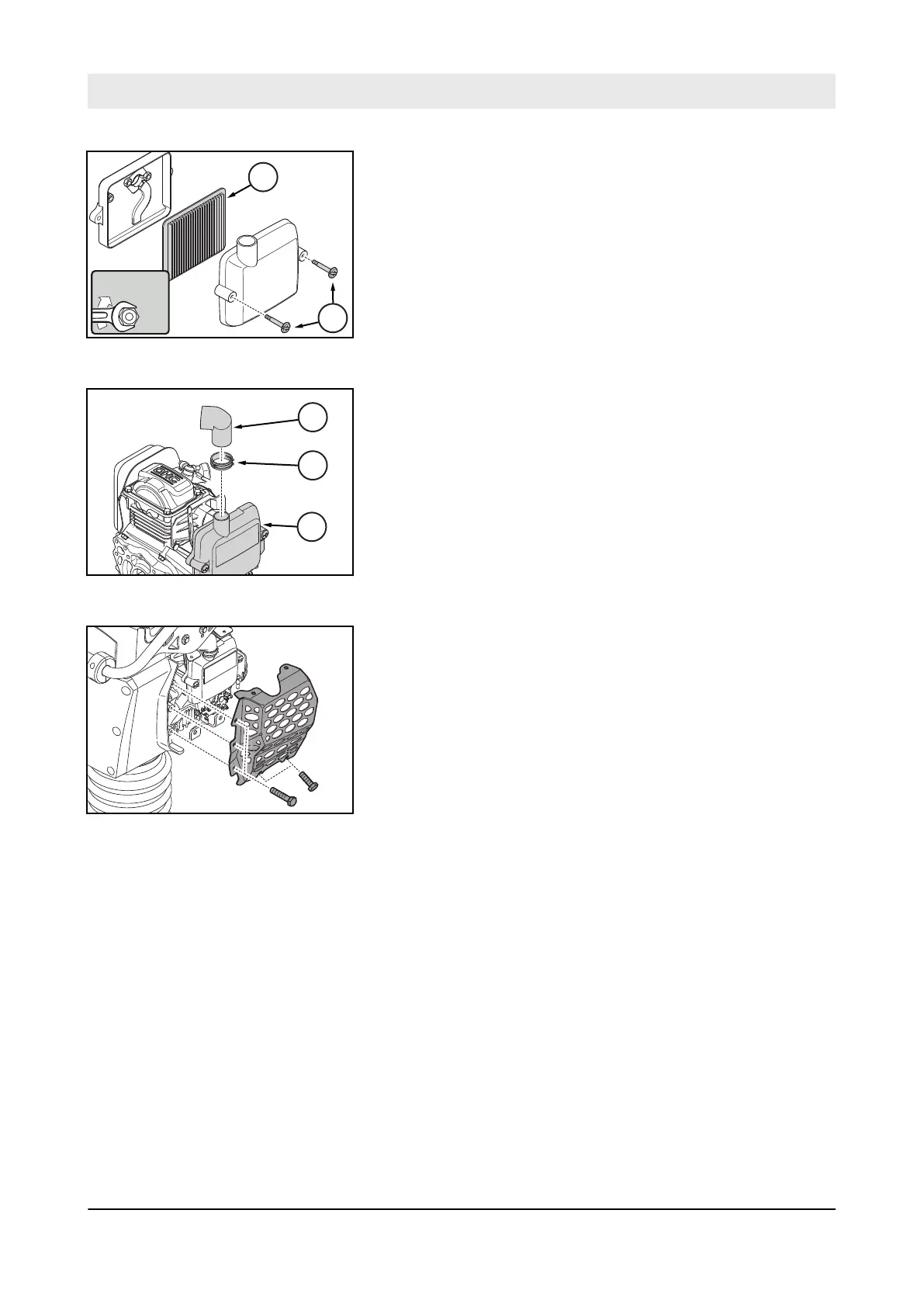

17. Slide the air filter (2) carefully into the housing.
18. Assemble the cover (3) with fastening screws (1), tightening
torque: 3 Nm (2 ft·lbf).
19. Connect the air hose (1) with the hose clamp (2) to the cover
(3).
20. Assemble the left engine guard.
1
2
B-541-0097
3 Nm
Fig. 51
1
3
2
B-541-0072
Fig. 52
B-924-0008
Fig. 53
Maintenance – Weekly
DR6X
72
