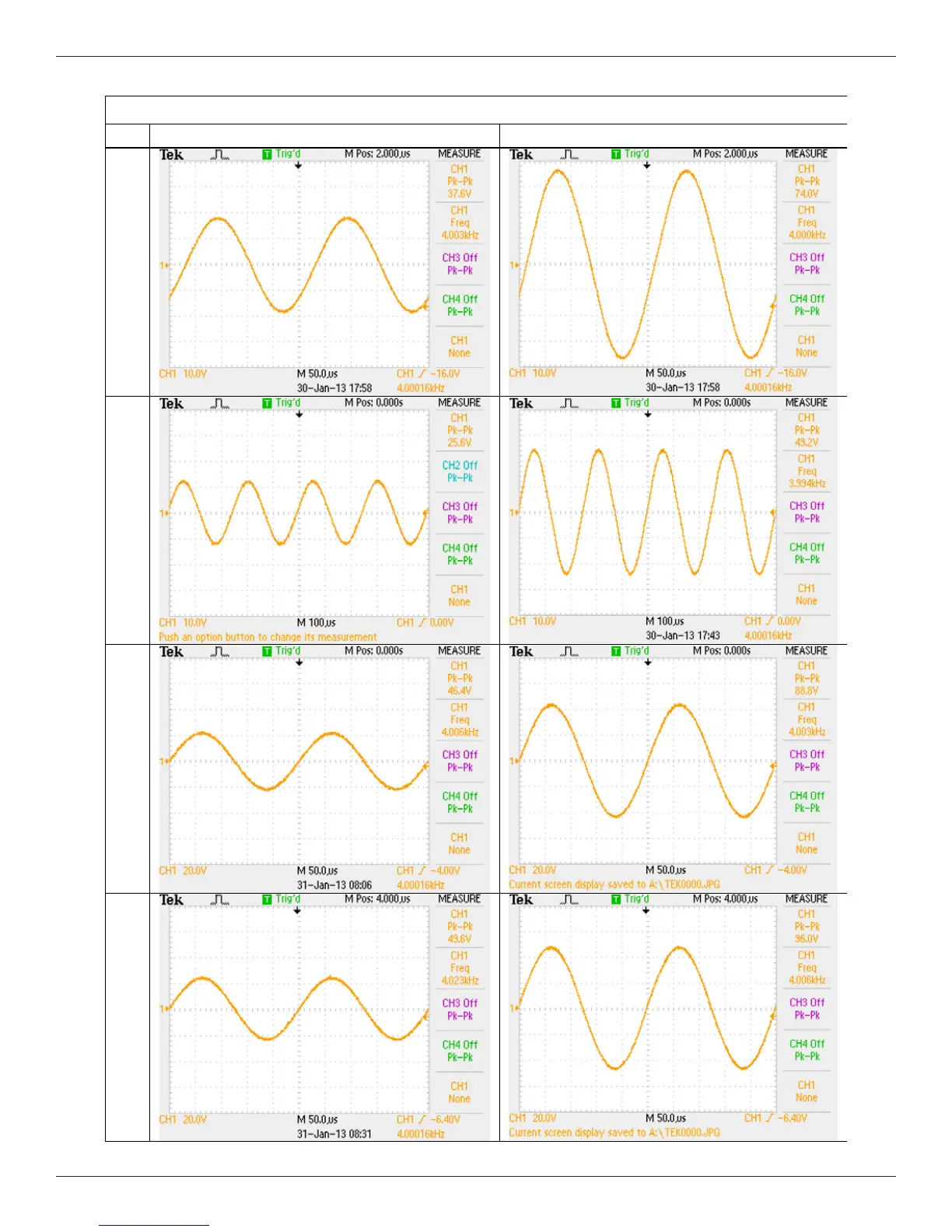

CAN/CSA WAVEFORM REQUIREMENTS

DYNATRON SOLARIS

PLUS SERIES | SERVICE MANUAL REV. 6 | AUGUST 29, 2017 137

Interferential Current

Mid-Range Full Range

500 ohm Load 200 ohm Load 1000 ohm Load

2000 ohm Load
