PFD Operation
SkyView SE Pilot’s User Guide - Revision I 4-15

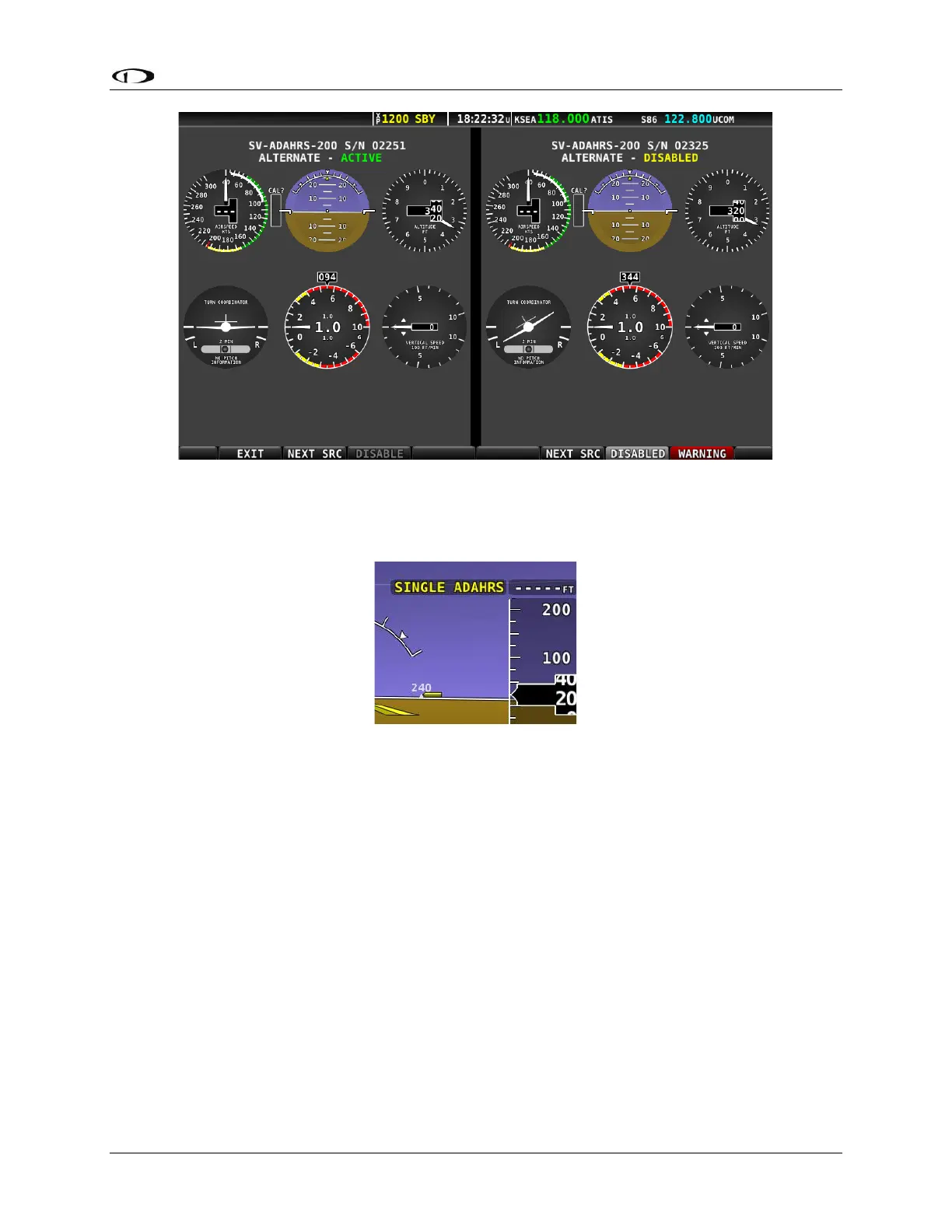

Figure 29 –ADAHRS Cross-Check Comparison – SIX-PACK
Press exit to return to normal operation. The PFD will annunciate that only a single ADAHRS is
available for use:
Figure 30 – Single ADAHRS Mode Flag
If, after you’ve entered the ADAHRS comparison screen, you do not disable an ADAHRS, a red
warning and ADAHRS CROSS CHK ERROR alert will persist in the Message Alert Area (above
button 8). To go back to the ADAHRS comparison screen to disable an ADAHRS, see the below
instructions:
ADAHRS Source Selection and Configuration
Enter the ADAHRS Source Selection Page: IN FLIGHT SETUP MENU (press/hold buttons 7/8)>
ADAHRS SOURCE SELECTION…).
If you are on the ground, this will be under SETUP MENU > PFD SETUP > ADAHRS SOURCE
SELECTION.
