COM Radio Operation
8-2 SkyView SE Pilot’s User Guide - Revision I
Top Bar COM Radio Status Overview
COM Radio Status is also reflected in the top bar of your SkyView SE displays. The identification
lettering depicted below matches the figure above:

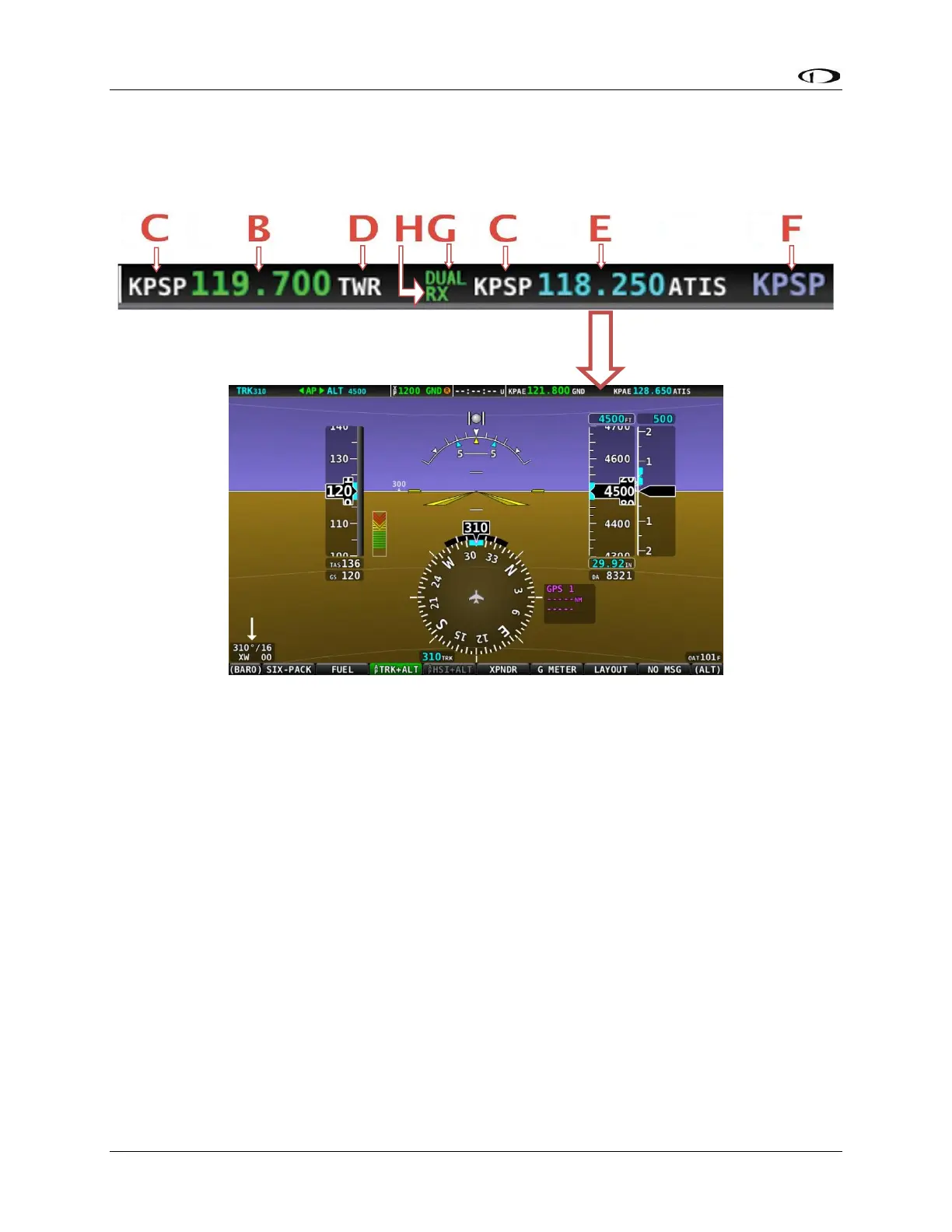

Figure 68 – SkyView SE Display (Illustrating Top Bar / SV-COM-760, -T25/T8, -425 Status)
Using your COM Radio
Power
The SV-COM-760, -T25/T8, -425 is not powered by the SkyView SE system, so they may not
power up at the same time as your SkyView SE displays. Press and hold the Volume Knob /
Power Button to manually turn the SkyView SE COM Radio off and on.
Volume
Use the volume knob to adjust the radio volume. You may want to use Squelch Override –
covered below, to aid in finding a comfortable volume level.
Transmitting and Receiving
The SV-COM-760, -T25/T8, -425 transmits on the active frequency only, and normally receives
only on that frequency. When transmitting, the following indications are shown:
