E Instruments BTU900 - Flow Chart - Analysis Configuration Menu

22
K800000000EJ 020650A0 170512
Activates the Configuration/Information Menu.
All selected data can be modif ied
by pressing cursor keys .
To cancel changes and return to
the previous menu press .

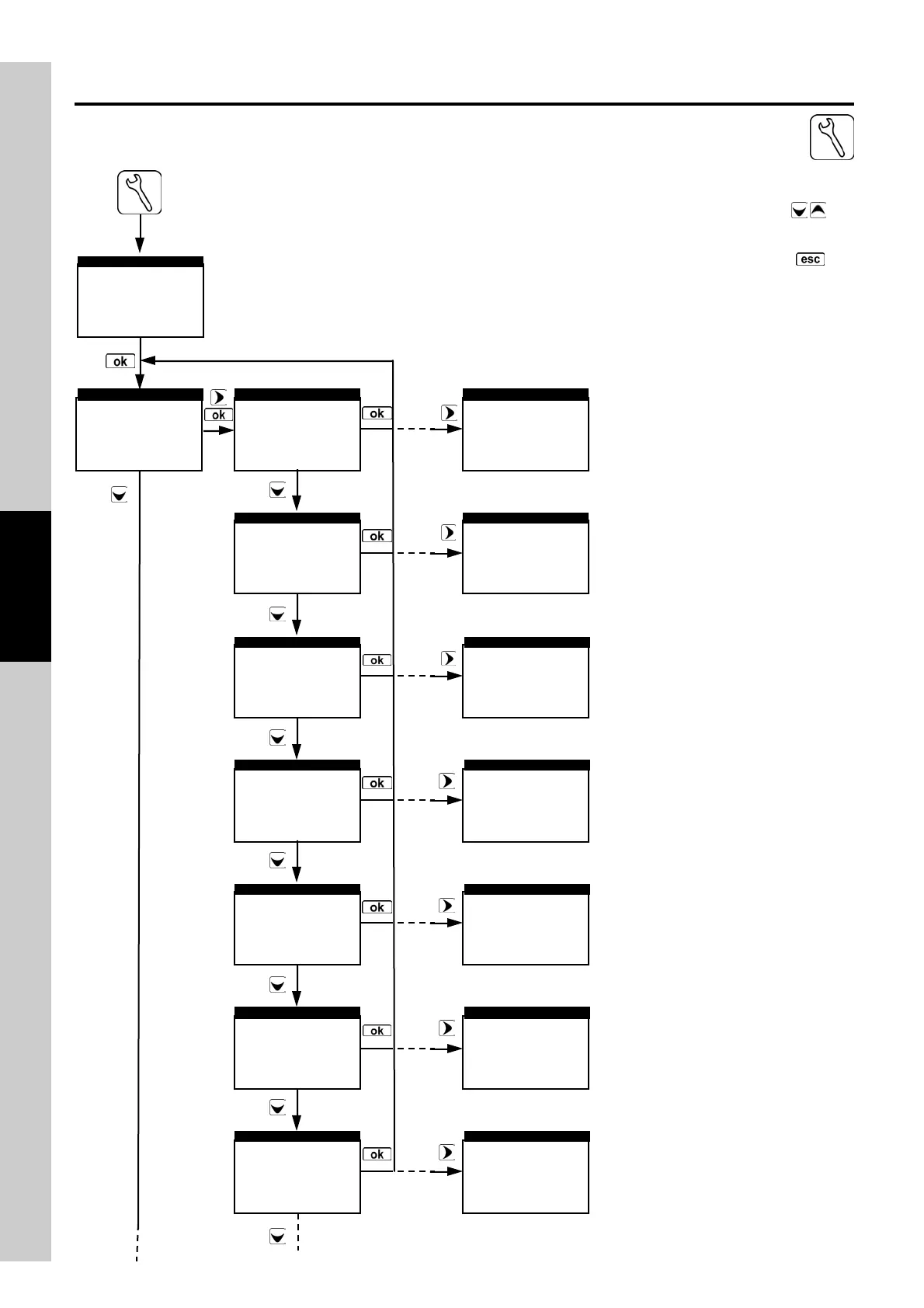

4.9.1 Flow Chart - Analysis configuration menu
►Fuel
Measurement units
O 2 Reference
Automatic analysis
Condensation
▼
CONFIGURATION
►Natural gas
#2 Oil
#4 Oil
Diesel
Wood/Pellets 8%
▼
FUEL
Natural gas
►#2 Oil
#4 Oil
Diesel
Wood/Pellets 8%
▼
FUEL
Natural gas
#2 Oil
►#4 Oil
Diesel
Wood/Pellets 8%
▼
FUEL
Natural gas
#2 Oil
#4 Oil
►Diesel
Wood/Pellets 8%
▼
FUEL
Natural gas
#2 Oil
#4 Oil
Diesel
►Wood/Pellets 8%
▼
FUEL
▲
#2 Oil
#4 Oil
Diesel
Wood/Pellets 8%
►Coal
▼
FUEL
▲
#4 Oil
Diesel
Wood/Pellets 8%
Coal
►Bio-Fuel 5%
▼
FUEL
A1 0.0280
B 0.0090
CO 2 t 11.70 %
LHV 51000 kJ/kg
HHV 56500 kJ/kg
FUEL PARAMETERS
A1 0.0305
B 0.0066
CO 2 t 15.70 %
LHV 42900 kJ/kg
HHV 45700 kJ/kg
FUEL PARAMETERS
A1 0.0306
B 0.0066
CO 2 t 15.80 %
LHV 41100 kJ/kg
HHV 43500 kJ/kg
FUEL PARAMETERS
A1 0.0305
B 0.0066
CO 2 t 15.70 %
LHV 42900 kJ/kg
HHV 45700 kJ/kg
FUEL PARAMETERS
A1 0.0354
B 0.0071
CO 2 t 19.01 %
LHV 18150 kJ/kg
HHV 19750 kJ/kg
FUEL PARAMETERS
A1 0.0320
B 0
CO 2 t 18.60 %
LHV 31400 kJ/kg
HHV 32300 kJ/kg
FUEL PARAMETERS
A1 0.0305
B 0.0066
CO
2 t 15.70 %
LHV 42600 kJ/kg
HHV 45400 kJ/kg
FUEL PARAMETERS
1
2
3
4
5
6
7
8
►Analysis config.
Instrument config.
Information
CONFIG/INFO
