E Instruments BTU900 - Expandability to 3 Sensors

51
K800000000EJ 020650A0 170512
5.5 Expandability to 3 sensors
In the BTU900 instrument range, one expandable version is available:
The upgrading of the number of sensors can be easily done by the user by performing the following directions:
- The expandable instrument is arranged in a way to accept one sensor in positions S3.
- Identify, with the help of paragraph 5.2 'Sensor types and relevant positioning' the sensor which must be added
to the existing configuration.
- To install the new sensors follow all the steps described in the paragraph 'MAINTENANCE' under 'gas sensors
replacement'.

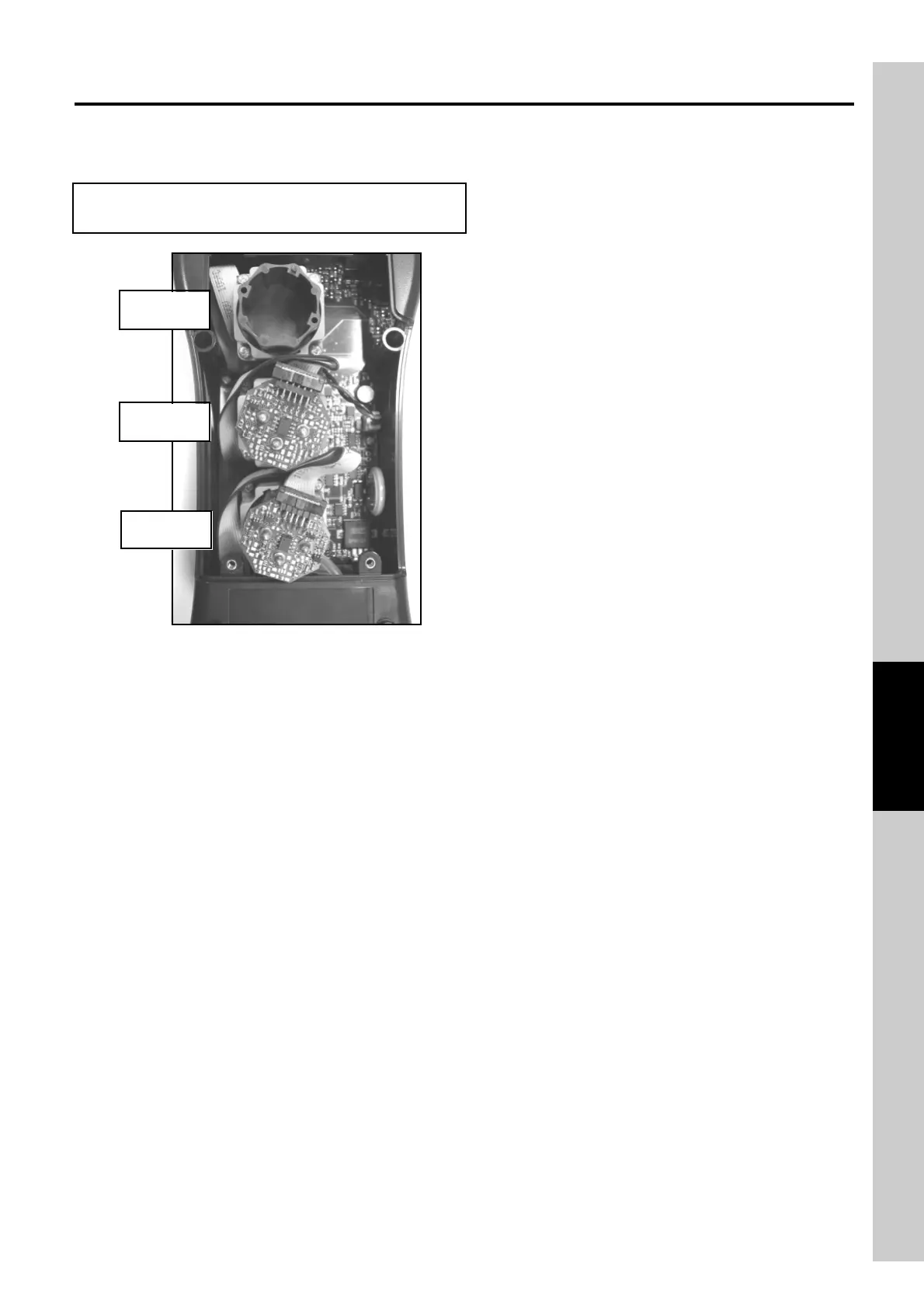

BTU900 - HE : 2 sensors, expandable to 3 sensors.
BTU900 - Oil
POSITION
S2
POSITION
S1
POSITION
S3
