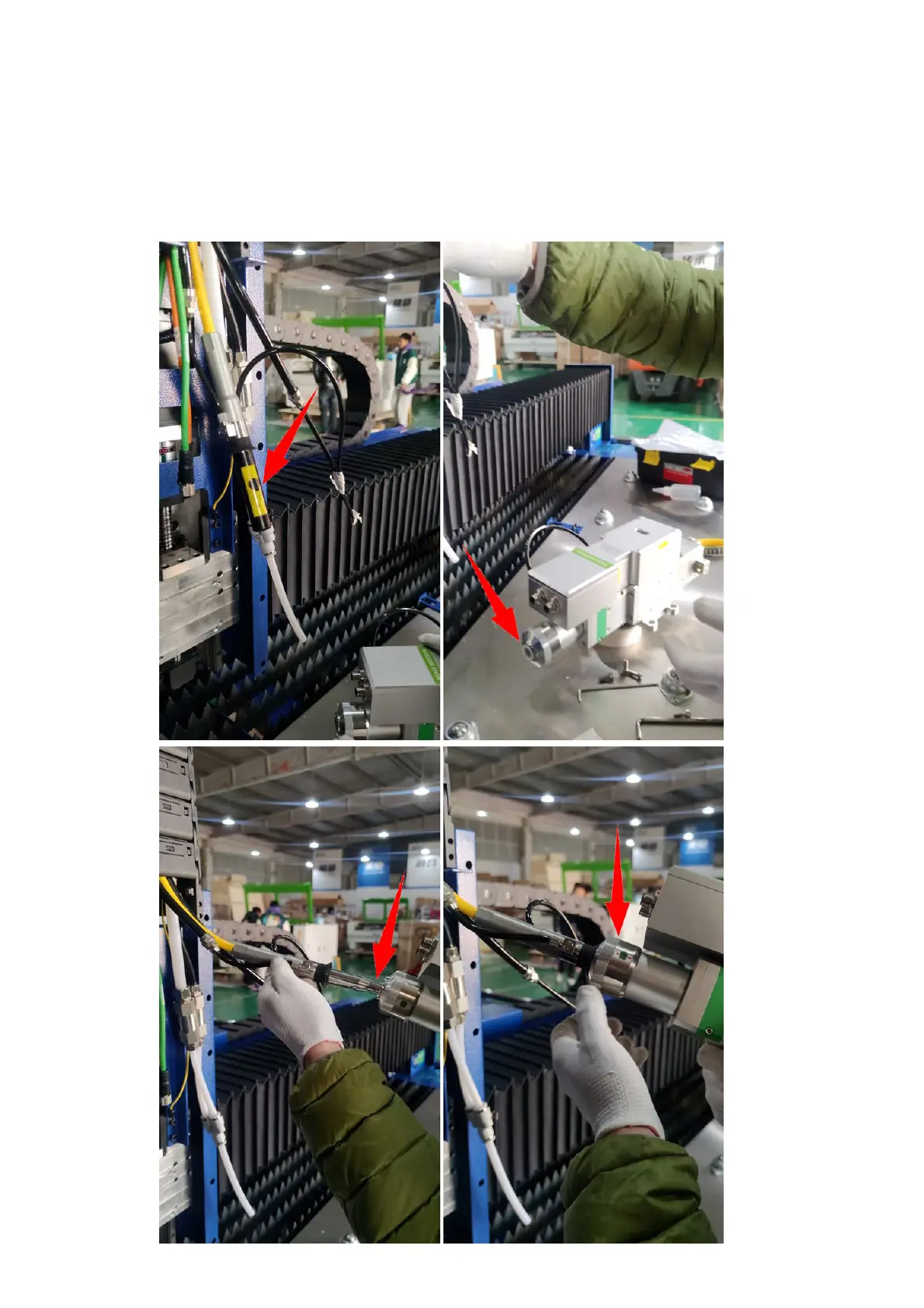

3. Connect the fiber to the laser head.
Remove the protective cap from the end connector of the fiber.
Remove the protective cap from the QBH interface of the laser head.
Hold the laser head in horizontal, aim and set the connector into the QBH interface, and lock it
tightly.
