CV3100 series and MINI series high performance general purpose inverter instruction manual
3-5
3.4.2 Wiring of main circuit terminal

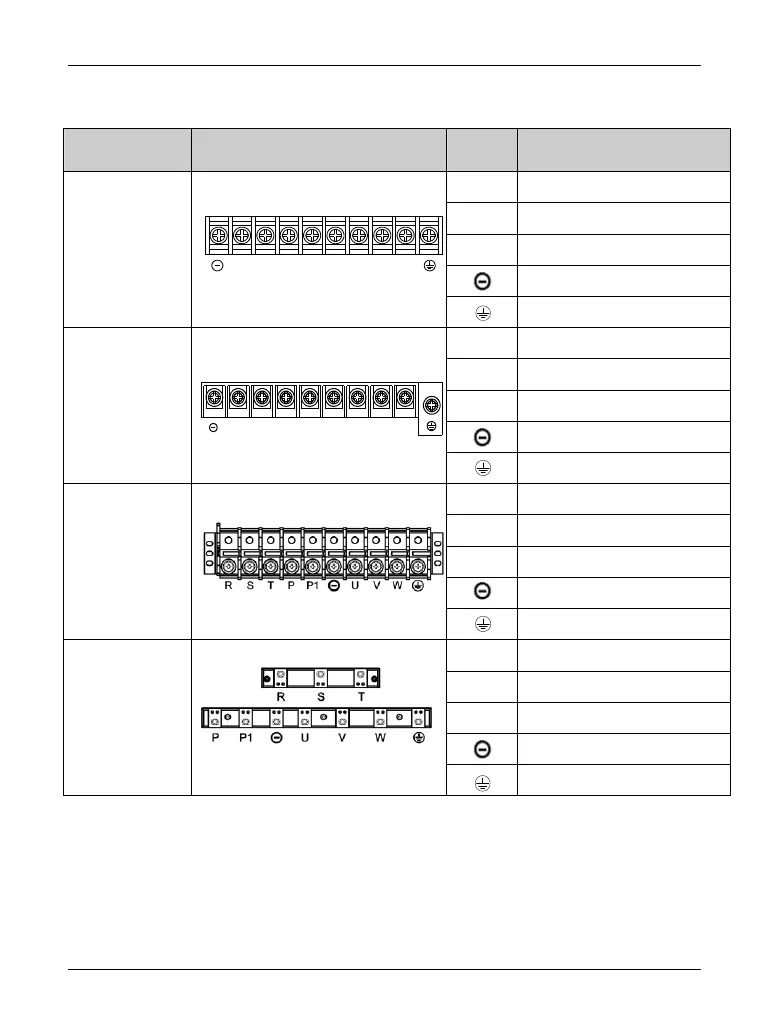

(1)、Input/output terminal of main circuit shown as table 3-2
Applicable
machine
Terminal of main circuit
Terminal
name
Function description
CV3100-4T0007M-
CV3100-4T0075M
R、S、T
Three-phaseAC 380V input
terminal
U、V、W
Three-phaseAC output
P+、PB
Braking resistor terminal
DC bus―-‖terminal
Grounding terminal
CV3100-4T0110M-
CV3100-4T0185M
R、S、T
Three-phaseAC 380V input
terminal
U、V、W
Three-phaseAC output
P+、PB
Braking resistor terminal
DC bus―-‖terminal
Grounding terminal
CV3100-4T0220M-
CV3100-4T0750M
R、S、T
Three-phaseAC 380V input
terminal
U、V、W
Three-phaseAC output
P、P1
External reactor terminal
DC bus―-‖terminal
Grounding terminal
CV3100-4T0930M-
CV3100-4T6300M
R、S、T
Three-phaseAC 380V input
terminal
U、V、W
Three-phaseAC output
P、P1
External reactor terminal
DC bus―-‖terminal
Grounding terminal
P RPB U VT
S
W
WS T VURP PB
