BACnet MS/TP Option Board OPTCJ for 9000X Drives User Manual
2-2
For more information visit:
www.EatonElectrical.com
MN04012006E
August 2006
3. Insert the data conductors
of both cables
into terminals #3 (Line B) and #4 (Line A).
4. Strip the cable at such a distance from the terminal that you can fix it to the frame with
the grounding clamp. See
Figures 2-3
and
2-4
:

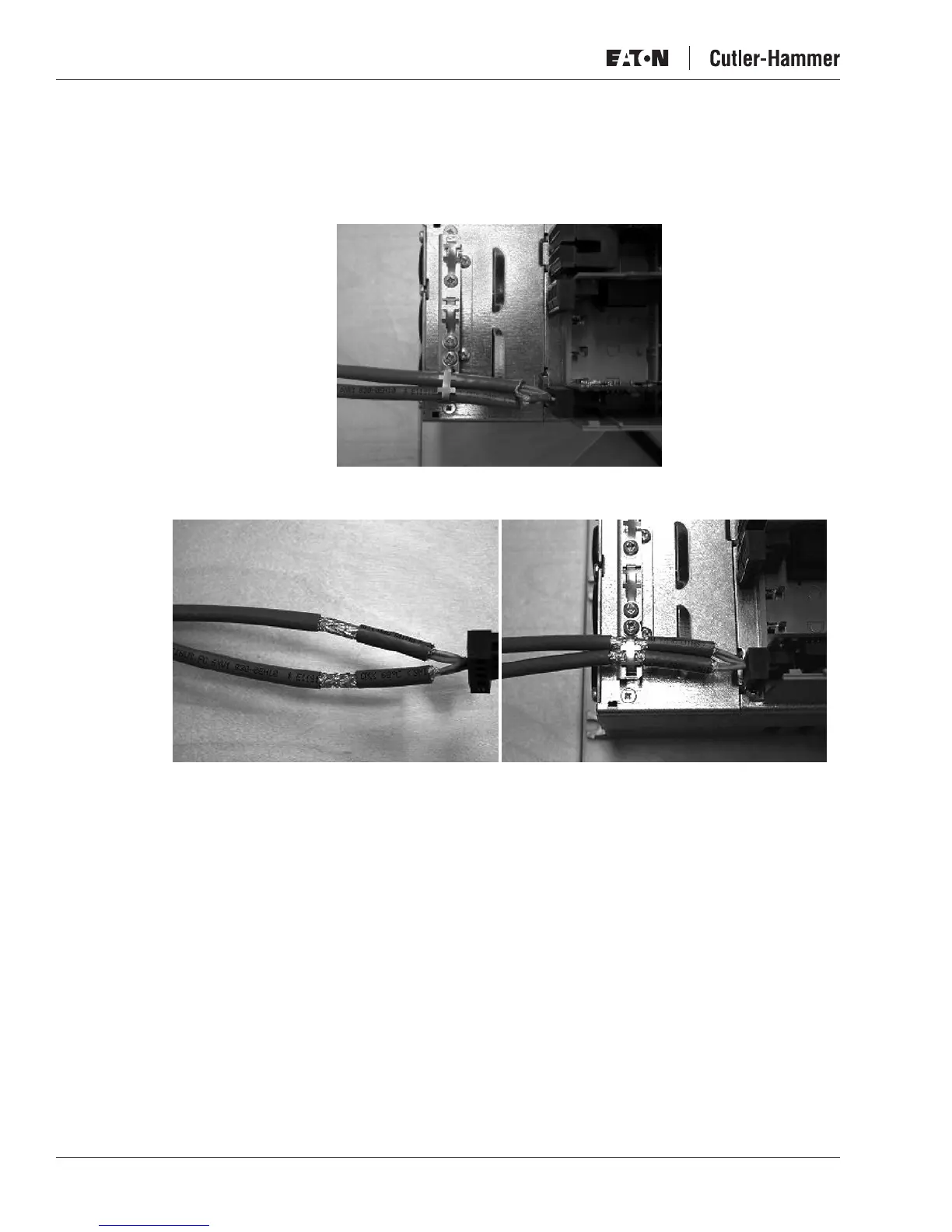

Figure 2-3: Locate Grounding Clamp
Figure 2-4: Strip at Correct Distance
