Operation
Copyright © 2008-2010 Eaton Corporation. All Rights Reserved.
IPN 997-00012-68D February 2010
33

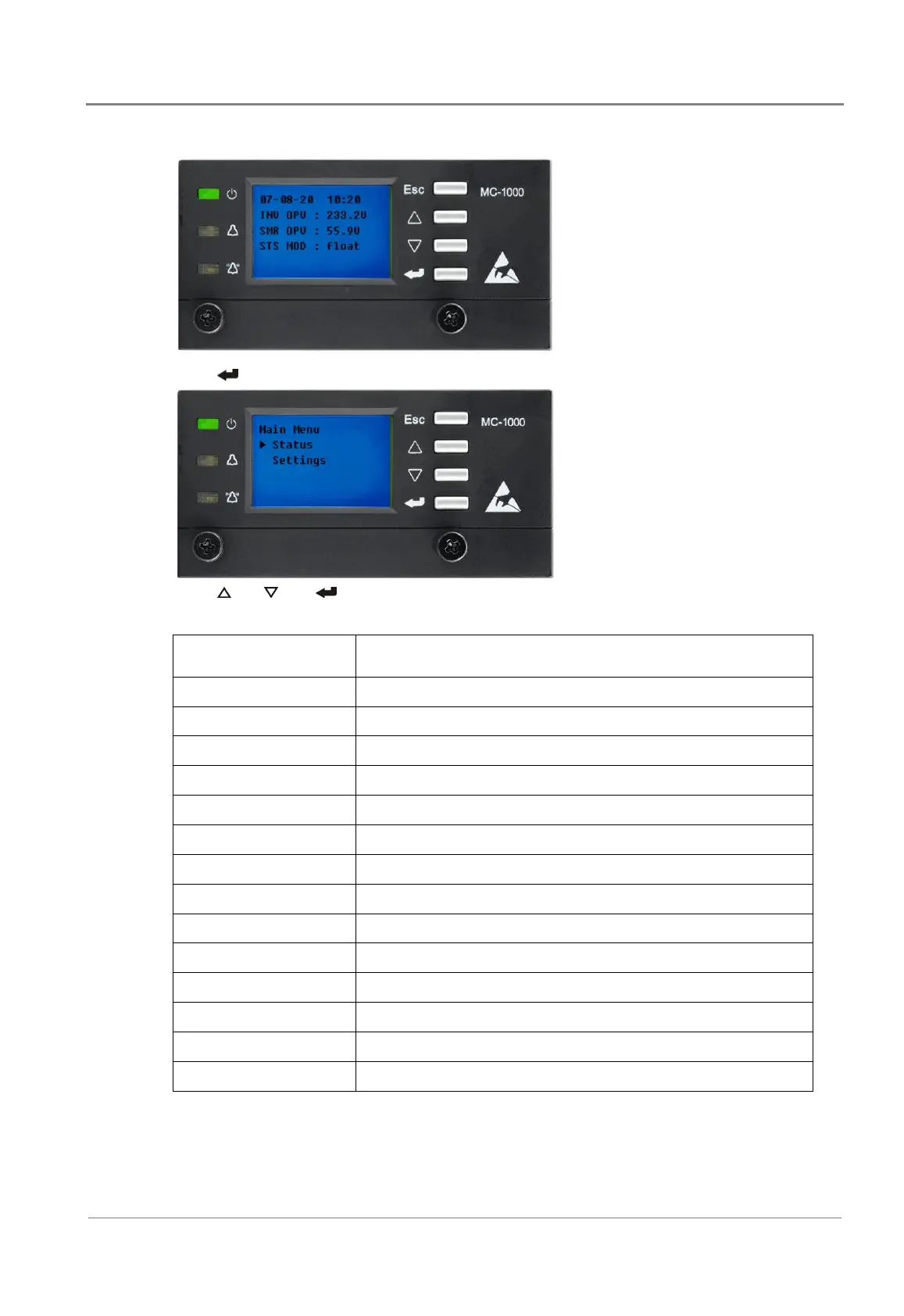

The general status screen is then shown.
Press to display the "Main Menu".
Press
and then to select the "STATUS" or the "SETTINGS" menu.
Inverter Status Menu Description
Address Inverter module location
Serial No Serial number of the selected inverter module
OPV Output voltage of the selected inverter module (V)
OPI Output current of the selected inverter module (A)
OPF Output frequency of the selected inverter module (Hz)
OPP Power capacity of the selected inverter module (VA)
Input Volt DC input voltage of the inverter system (V)
Power Used Load level (%)
Heat Sink Inverter heat sink temperature (ºC)
Ambient Temp. Inverter Ambient temperature (ºC))
Run time Inverter running time (hours)
Power Limited Power limited (%)
HW Rev Hardware version of the selected inverter module
SW Rev Software version of the selected inverter module
To Next Page
