XS series operating manual
XS user manual v0.55 - 116 -
IP address
warning
To set manually a new IP address , the DHCP mode must be OFF ( DHCP = OFF. )
Select the line ADDRESS IP and validate.

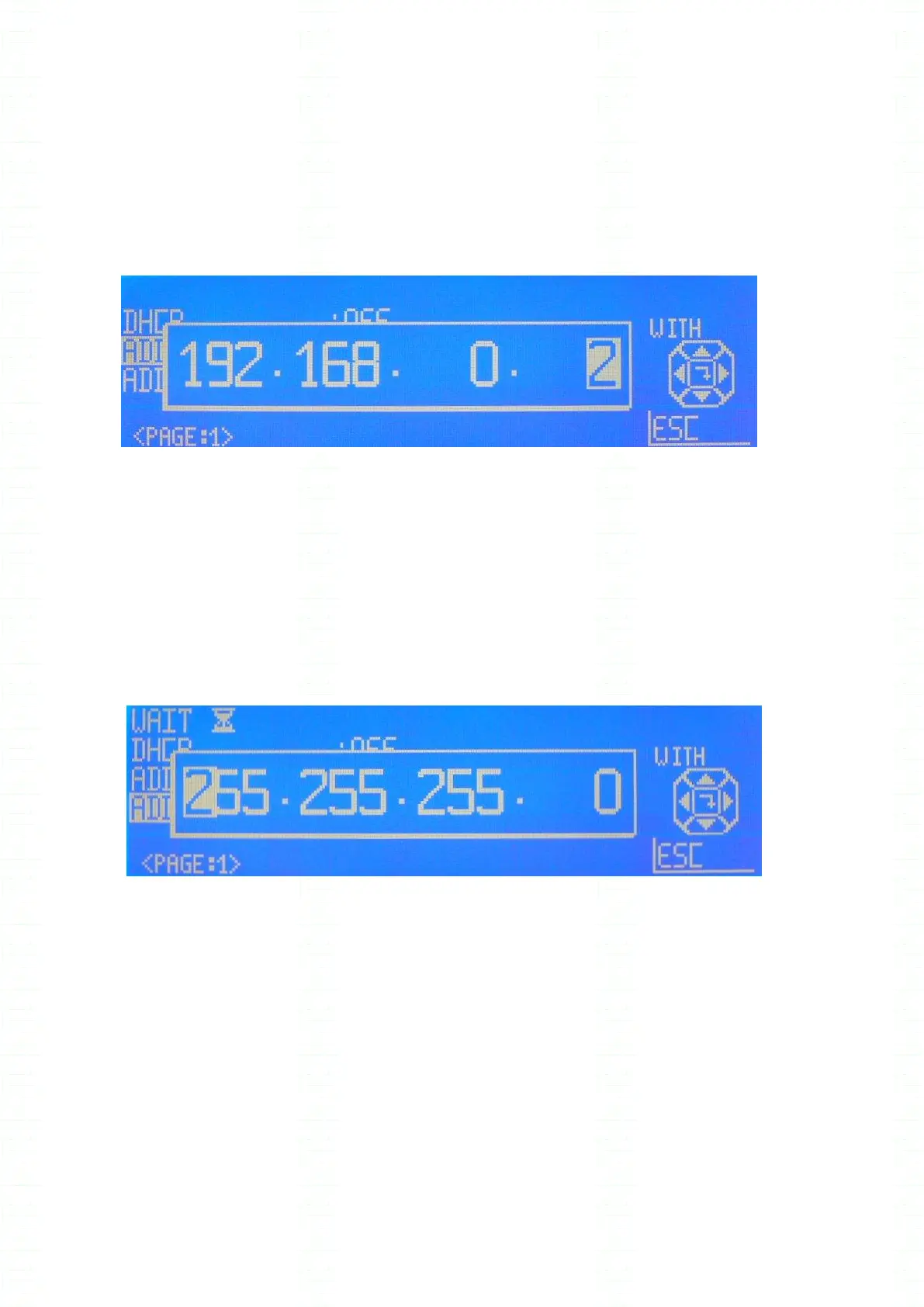

Fig 12.8
Select the number to be modified by moving the cursor with the RIGHT/LEFT arrow keys.
Increase or decrease the value with respectively the UP and the DOWN arrow. Repeat
operation for all the numbers if necessary.
Enter the new value with the ENTER key and wait a little time.
Subnet address mask
warning
To set manually a new IP address , the DHCP mode must be OFF ( DHCP = OFF. )
Fig 12.9
Proceed exactly as above.
Protocol and communication port
The protocol used is TCP/IP
The software used to control a XS unit must use the port TCP 2001
Syntax rules
The end of a message must be the LF character (hexadecimal 0A, decimal 10).
The separators inside a message are ; or :
The commands can be sent either in small letters or in capital letters.
