To adjust the rise and fall times:
Move the reverse video line in front of the RISE or FALL line (Menu page 2)
Press on the RIGHT arrow or ENTER key

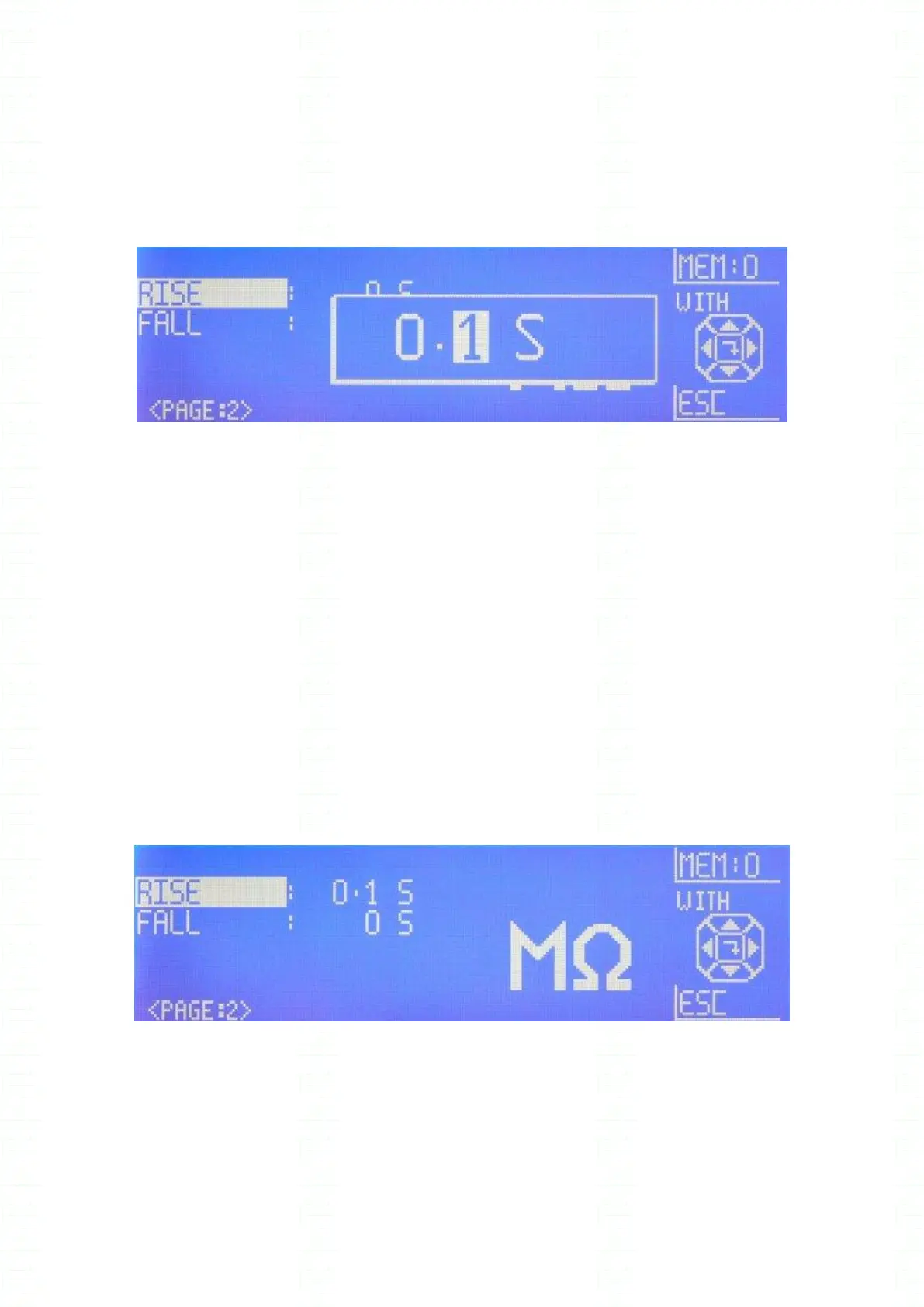

Display shows :
Fig 7.6
Select the number to be modified by moving the cursor with the RIGHT/LEFT arrow keys
Increase or decrease the value with respectively the UP and the DOWN arrow keys (0 1 2 3 4 5 6 7 8
9. 0 1 2 3 etc).
Repeat operation for all the numbers if necessary
Enter the time with the ENTER key
If necessary, move the cursor on the unity area (S = seconds or V/s = volts per second). With the UP
and DOWN arrows display the required unity and enter the unity with the ENTER key.
Parameter memorization
XS series unit allows to store in 10 memories (numbers 0 to 9) measurement parameters (voltage,
threshold, time, ....). From the measurement menu, to modify the memory number :
Press on the [MEM:x] function key
Display shows :
Fig 7.7
With the UP/DOWN arrow keys, increase or decrease the memory number (from 0 to 9). The
parameters recall line (area 3 of the LCD screen) indicates the content of each memory.
Enter the selected memory either by pressing again on the [MEM:x] function key or by pressing the
ENTER key.
