XS user manual v0.55 - 65 -
Activation of the capacitive sample detection
WARNING
This parameter line only concerns the SXS16.

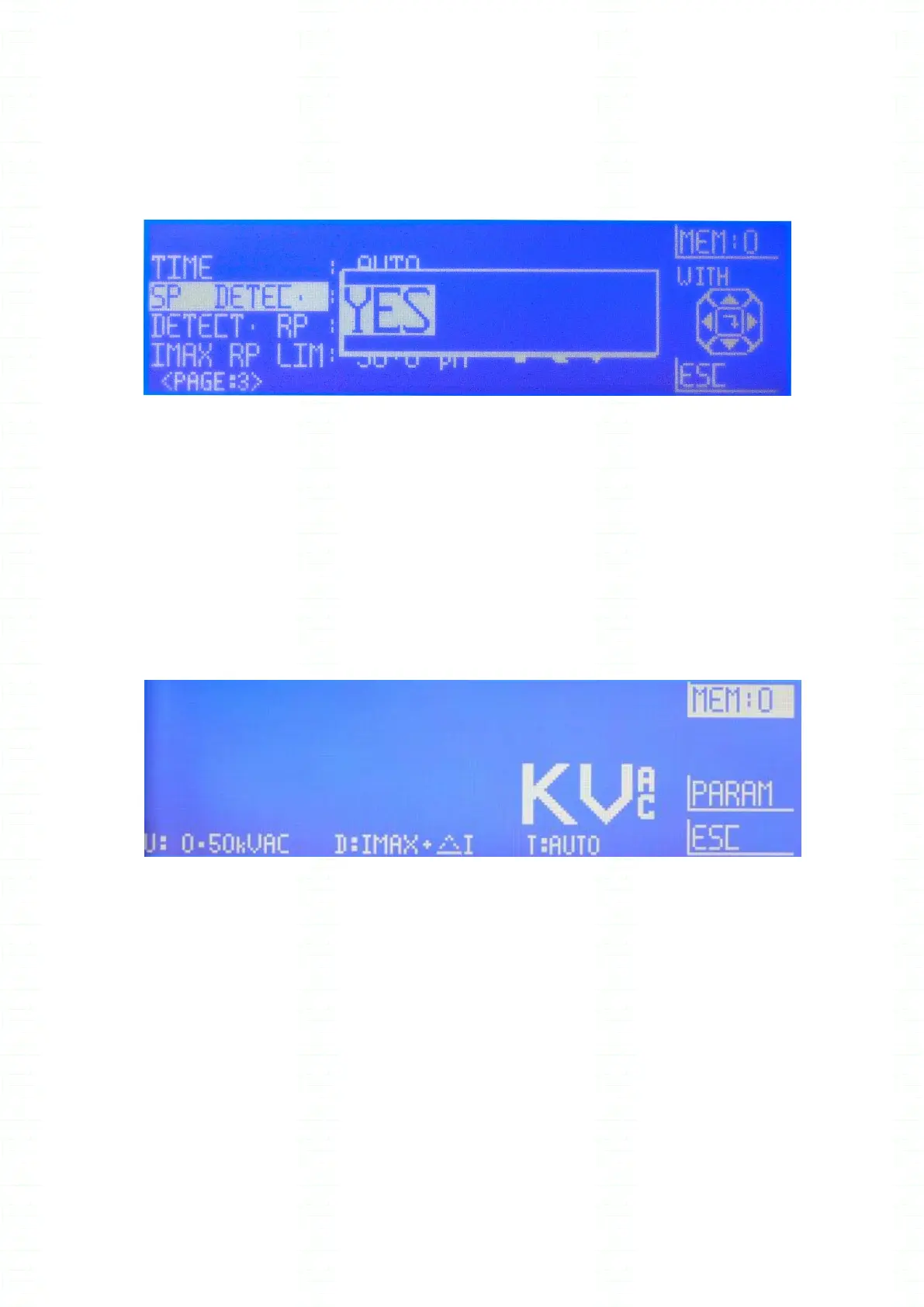

Fig 8.11
It allows the activation of the capacitive sample detection before a dielectric strength test starts. By
default, the capacity threshold is set to 10nF.
Parameter memorization
XS series unit allows to store in 10 memories (numbers 0 to 9) measurement parameters (voltage,
threshold, time , ....). From the measurement menu, to modify the memory number:
Press on the [MEM:x] function key
Display shows :
Fig 8.12
With the UP/DOWN arrow keys, increase or decrease the memory number (from 0 to 9). The
parameters recall line (area 3 of the LCD screen) indicates the content of each memory.
Enter the selected memory either by pressing again on the [MEM:x] function key or by pressing the
ENTER key.
From the parameter menu, to modify a memory number:
Press on the [MEM:x] function key
With the UP/DOWN arrow keys, increase or decrease the memory number (from 0 to 9). The input
parameters lines indicate the content of each memory.
Enter the selected memory either by pressing again on the [MEM:x] function key or by pressing the
ENTER key.
