XS series operating manual

XS user manual v0.55 - 140 -

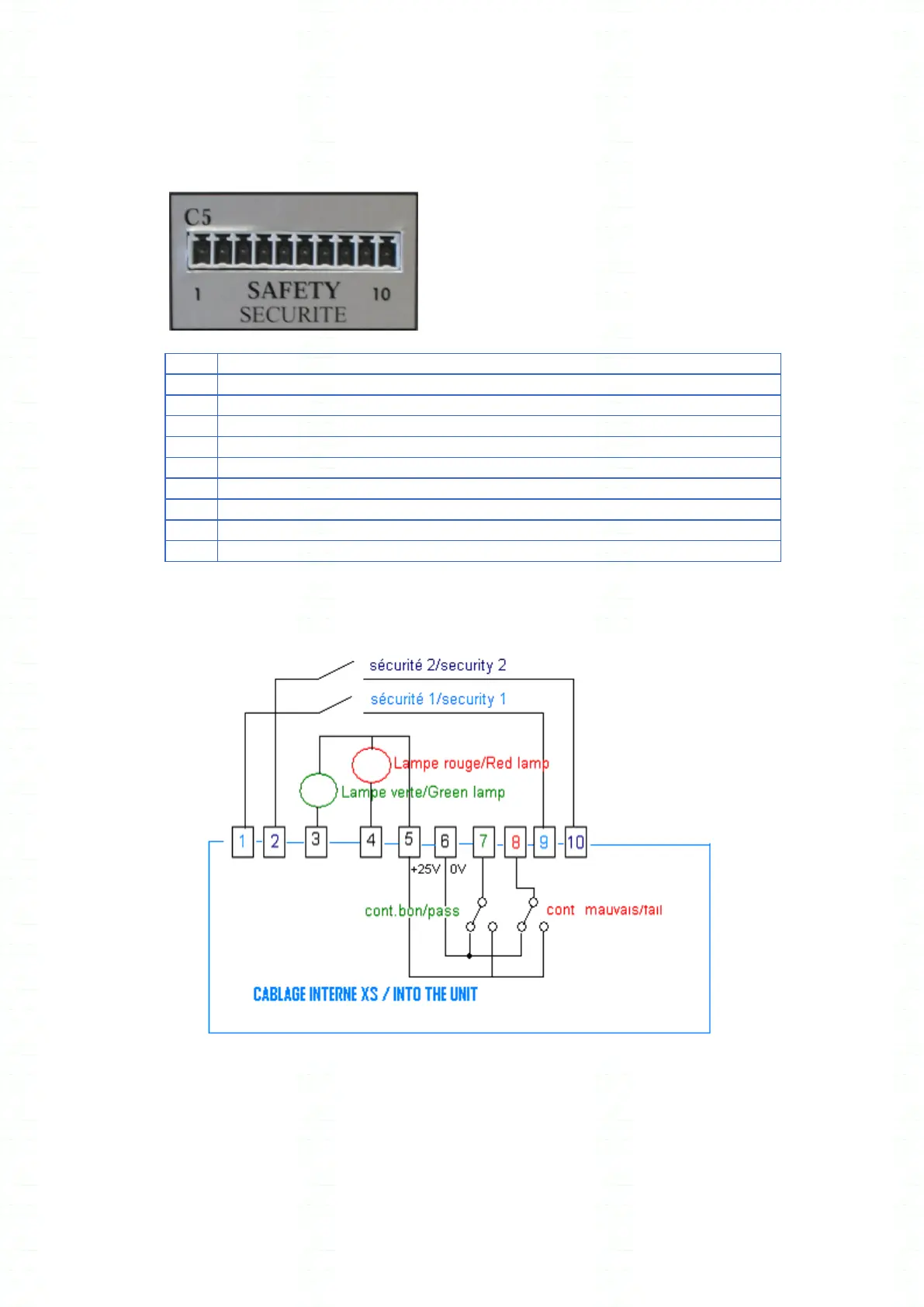

14 Safety interlock connector (C5)

Safety interlock contact : to be connected to pin 9

Safety interlock contact : to be connected to pin 10

Green lamp

Red lamp

25VDC common for green red lamps

0 Volt ground

PASS contact

FAIL contact

Safety interlock contact : to be connected to pin 1

Safety interlock contact : to be connected to pin 2

How to connect the green and red lamps, the security loop contacts, and the contacts pass/fail
