12 Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09

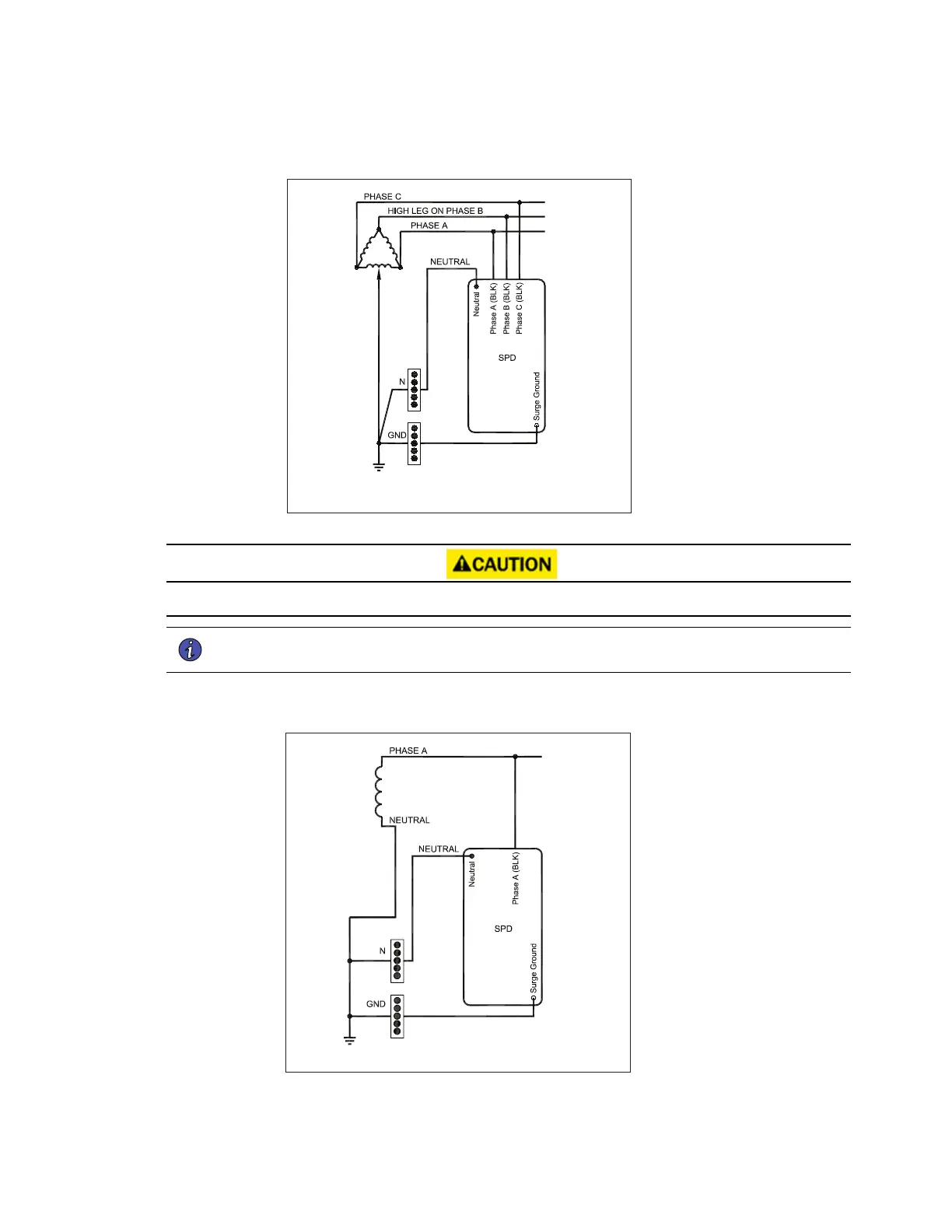

FFiigguurree 1133.. HHiigghh LLeegg DDeellttaa UUnniittss
*
*Contact Factory if High
Leg is not on phase B
Damage will occur to the device if the high leg is not on Phase B.
NNOOTTEE Please consult the factory for 240 delta high leg applications with high leg on the ‘C’
phase.
FFiigguurree 1144.. WWiirriinngg -- SSiinnggllee pphhaassee UUnniittss ((223300 LL))
Installation

Table of Contents

Other manuals for Eaton SPD Series

Preview: Instruction Manual
Instruction Manual40 pages
Preview: Instruction Leaflet
Instruction Leaflet4 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Eaton SPD Series and is the answer not in the manual?

Eaton SPD Series Specifications

General IconGeneral
TypeSurge Protective Device
Voltage Rating120/240V, 208Y/120V, 480Y/277V
Surge Current CapacityUp to 200kA
Modes of ProtectionL-N, L-G, N-G
Operating Frequency50/60Hz
CertificationsUL 1449
SPD TypeType 1, Type 2
Maximum Surge CurrentUp to 200kA
Nominal Discharge Current (In)10kA, 20kA
Short Circuit Current Rating (SCCR)Up to 200kA
Enclosure TypeNEMA 1
MountingPanel Mount
StandardsUL 1449, IEEE C62.41
DiagnosticsVisual Indicators
Remote MonitoringOptional
Maximum Discharge Current (Imax)Up to 200kA
