Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09 53
1133..55 PPoowweerr XXppeerrtt SSPPDD LLooccaall DDiissppllaayy TTeesstt SSeeqquueennccee

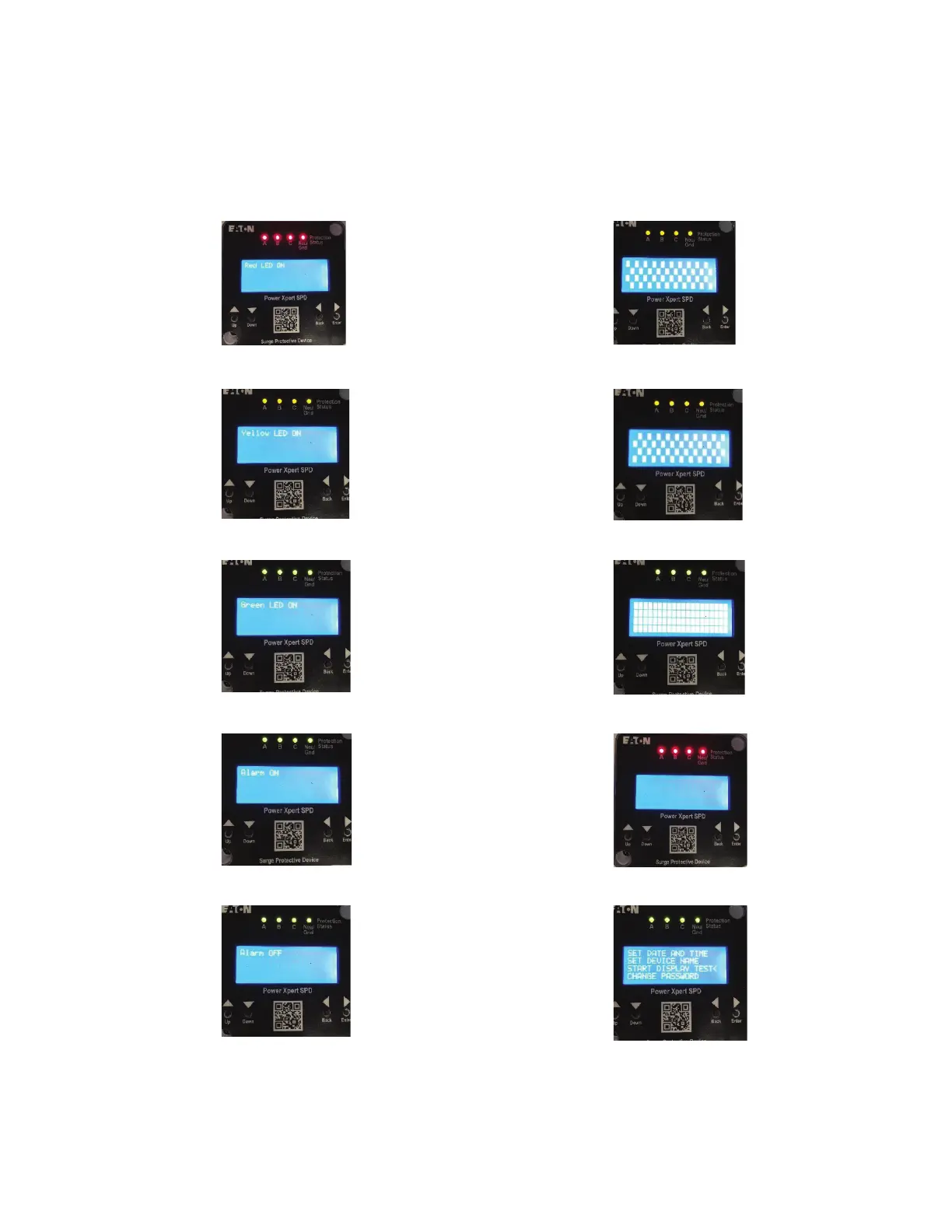

TTaabbllee 1111.. PPoowweerr XXppeerrtt SSPPDD LLooccaall DDiissppllaayy TTeesstt SSeeqquueennccee
1. All LEDs turn red 6. Half pixels turn on
2. All LEDs turn yellow 7. Other half of pixels turn on
3. All LEDs turn green 8. All pixels turn on
4. Alarm will sound momentarily. 9. LEDs turn red again.
5. Alarm turns off 10. Test completed
Appendix

Table of Contents

Other manuals for Eaton SPD Series

Preview: Instruction Manual
Instruction Manual40 pages
Preview: Instruction Leaflet
Instruction Leaflet4 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Eaton SPD Series and is the answer not in the manual?

Eaton SPD Series Specifications

General IconGeneral
TypeSurge Protective Device
Voltage Rating120/240V, 208Y/120V, 480Y/277V
Surge Current CapacityUp to 200kA
Modes of ProtectionL-N, L-G, N-G
Operating Frequency50/60Hz
CertificationsUL 1449
SPD TypeType 1, Type 2
Maximum Surge CurrentUp to 200kA
Nominal Discharge Current (In)10kA, 20kA
Short Circuit Current Rating (SCCR)Up to 200kA
Enclosure TypeNEMA 1
MountingPanel Mount
StandardsUL 1449, IEEE C62.41
DiagnosticsVisual Indicators
Remote MonitoringOptional
Maximum Discharge Current (Imax)Up to 200kA
