• Red LEDs: Illumination indicates a loss of protection, and that one or more protective devices are now
inactive and unavailable for that phase. Red LEDs also indicate neutral to ground protection on units with a
neutral wire. Red LEDs do not indicate on/off status of power.
33..22..22 SSttaannddaarrdd FFeeaattuurree PPaacckkaaggee

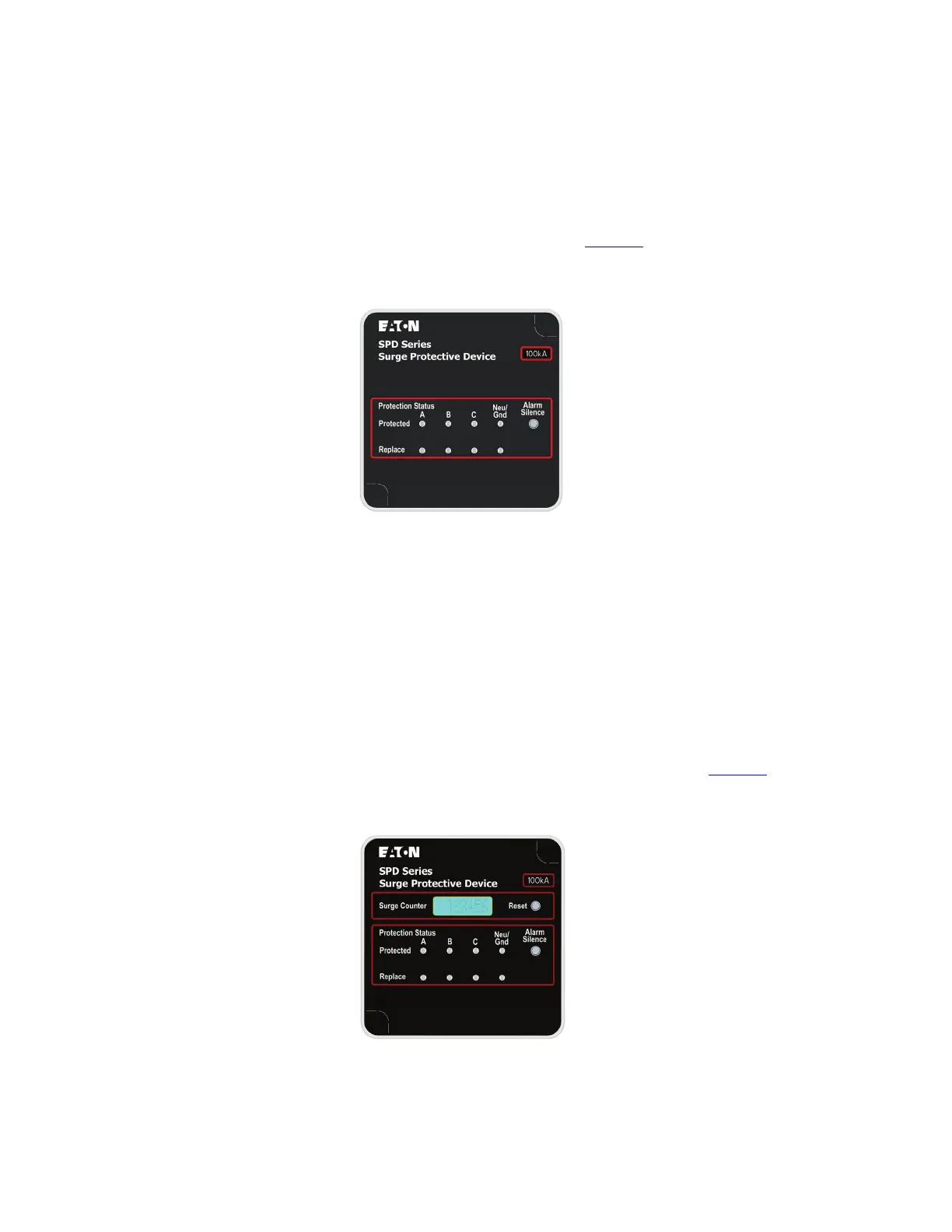

The Eaton SPD Series Standard feature package display is shown in Figure 16.
FFiigguurree 1166.. SSttaannddaarrdd FFeeaattuurree PPaacckkaaggee DDiissppllaayy
The Standard feature package has the following features:
• All the features of the Basic feature package.
• One form C relay contact rated at 150 Vac at 0.46 A, 30 Vdc at 1A.
• Normal operating conditions. N.O. = OPEN. N.C = CLOSED.
• Loss of protection on any phase or loss of power. N.O. = CLOSED. N.C. = OPEN.
• Audible alarm with an alarm silence button.
• EMI/RFI filtering.
33..22..33 SSttaannddaarrdd WWiitthh SSuurrggee CCoouunntteerr FFeeaattuurree PPaacckkaaggee
The Eaton SPD Series Standard with Surge Counter feature package display is shown in Figure 17.
FFiigguurree 1177.. SSttaannddaarrdd wwiitthh SSuurrggee CCoouunntteerr FFeeaattuurree PPaacckkaaggee DDiissppllaayy
The Standard with Surge Counter feature package has the following features:
Operating Features

Eaton SPD Series Specifications

General

Type	Surge Protective Device
Voltage Rating	120/240V, 208Y/120V, 480Y/277V
Surge Current Capacity	Up to 200kA
Modes of Protection	L-N, L-G, N-G
Operating Frequency	50/60Hz
Certifications	UL 1449
SPD Type	Type 1, Type 2
Maximum Surge Current	Up to 200kA
Nominal Discharge Current (In)	10kA, 20kA
Short Circuit Current Rating (SCCR)	Up to 200kA
Enclosure Type	NEMA 1
Mounting	Panel Mount
Standards	UL 1449, IEEE C62.41
Diagnostics	Visual Indicators
Remote Monitoring	Optional
Maximum Discharge Current (Imax)	Up to 200kA
