20 Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09

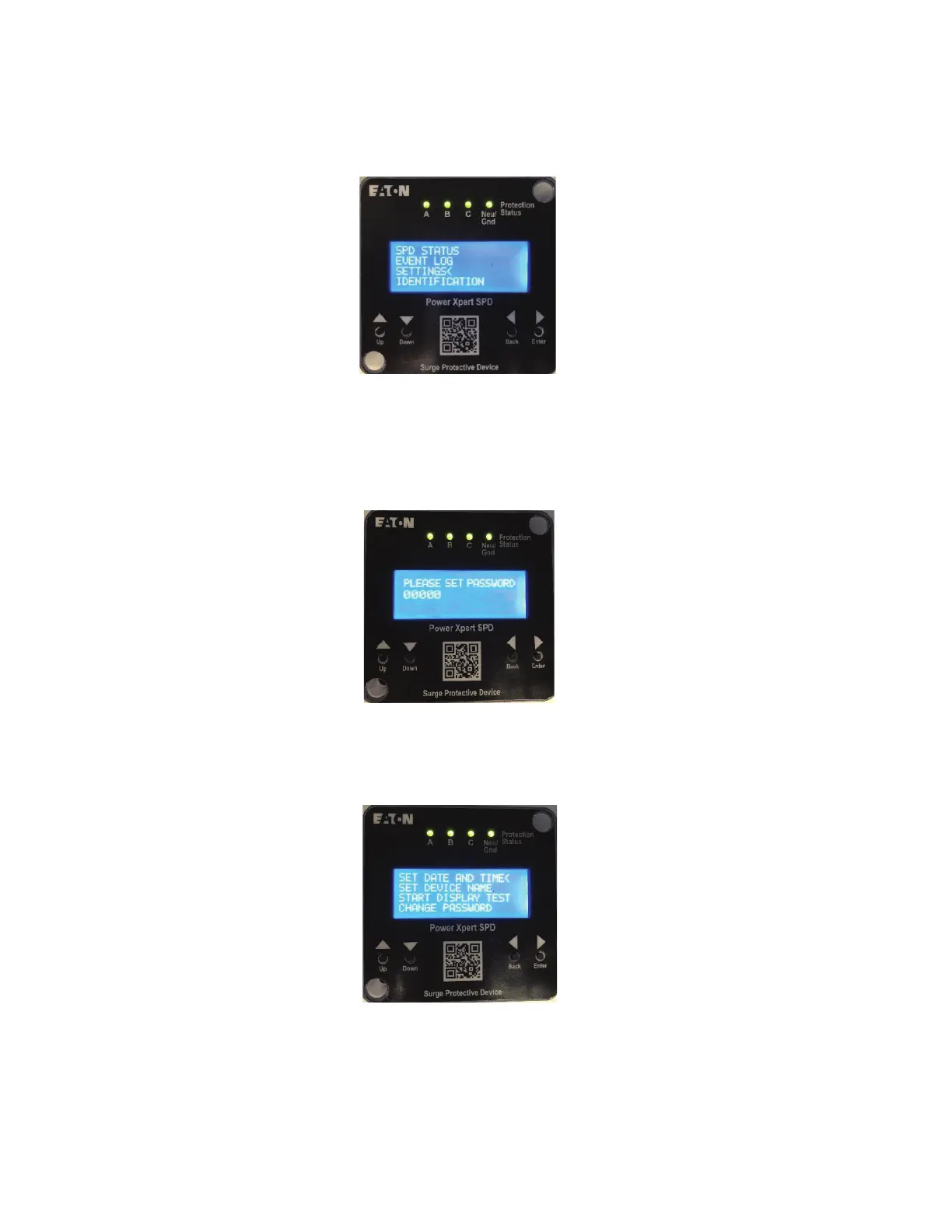

FFiigguurree 2233.. MMoovvee CCuurrssoorr ttoo sseettttiinnggss
3. Enter a 6-digit password by pressing the Up button to the desired first number, if you go past the number
press the Down button. Then press Enter to go to the next digit. Repeat the process until all six digits have
been entered. After all six digits have been entered press Enter to continue.
FFiigguurree 2244.. PPaasssswwoorrdd SSccrreeeenn
4. Select the date and time category by pressing Enter.
FFiigguurree 2255.. SSeelleecctt DDaattee aanndd TTiimmee
5. Press the Enter button to edit the date and time or the back button to exit and return to the previous
screen.
Power Xpert SPD User Setup

Eaton SPD Series Specifications

General

Type	Surge Protective Device
Voltage Rating	120/240V, 208Y/120V, 480Y/277V
Surge Current Capacity	Up to 200kA
Modes of Protection	L-N, L-G, N-G
Operating Frequency	50/60Hz
Certifications	UL 1449
SPD Type	Type 1, Type 2
Maximum Surge Current	Up to 200kA
Nominal Discharge Current (In)	10kA, 20kA
Short Circuit Current Rating (SCCR)	Up to 200kA
Enclosure Type	NEMA 1
Mounting	Panel Mount
Standards	UL 1449, IEEE C62.41
Diagnostics	Visual Indicators
Remote Monitoring	Optional
Maximum Discharge Current (Imax)	Up to 200kA
