P.51

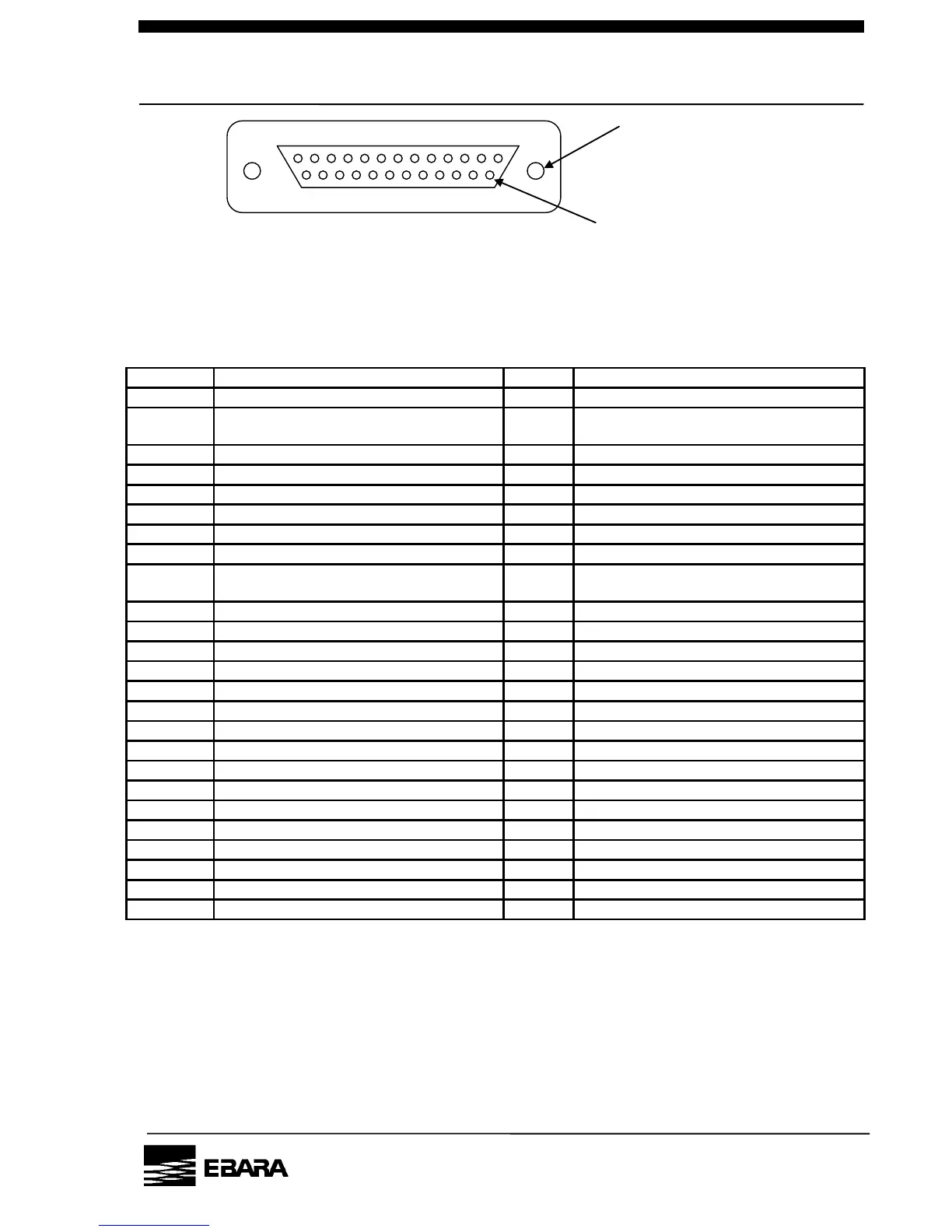

Fig. 4.7
25 Pin D Sub-Miniature Female Receptacle
(As seen from connecting side)
Table 4.8 Control Connector Pin Assignment (CN-Y)
Pin No.
Signal name
I/O
Signal type
1
RESET (+)
IN
RESET:CLOSE
2 SAVING ENERGY CONTROL (+) IN
SAVING ENERGY MODE:CLOSE,
Alternate
3
RESERVED (+)
IN
4
RESERVED (+)
IN
5
RESERVED (+)
IN
6
EMS STATUS (+) *1
OUT
EMS:OPEN, Alternate
7
PUMP N2 WARNING STATUS (+) *2
OUT
Abnormality:CLOSE, Alternate *3
8
RESERVED (+)
OUT
9 SAVING ENERGY STATUS (+) OUT
SAVING ENERGY MODE:CLOSE,
Alternate
10
RESERVED (+)
OUT
11
RESERVED (+)
OUT
12
RESERVED (+)
OUT
13
−
14
RESET (−)
15
SAVING ENERGY CONTROL (−)
16
RESERVED (−)
17
RESERVED (−)
18
RESERVED (−)
19
EMS STATUS (−) *1
20
PUMP N2 WARNING STATUS (−)*2
21
RESERVED (−)
22
SAVING ENERGY STATUS (−)
23
RESERVED (−)
24
RESERVED (−)
25
RESERVED (−)
*1 : Optional
*2 : Only “P” and “N” model.
*3 : It can change to “Abnormality:OPEN, Alternate” by DIP SW. setting.
1
13
25
14
Screw lock size: M2.6
Contact pin surface: Au
PM10U
