MAINTENANCE

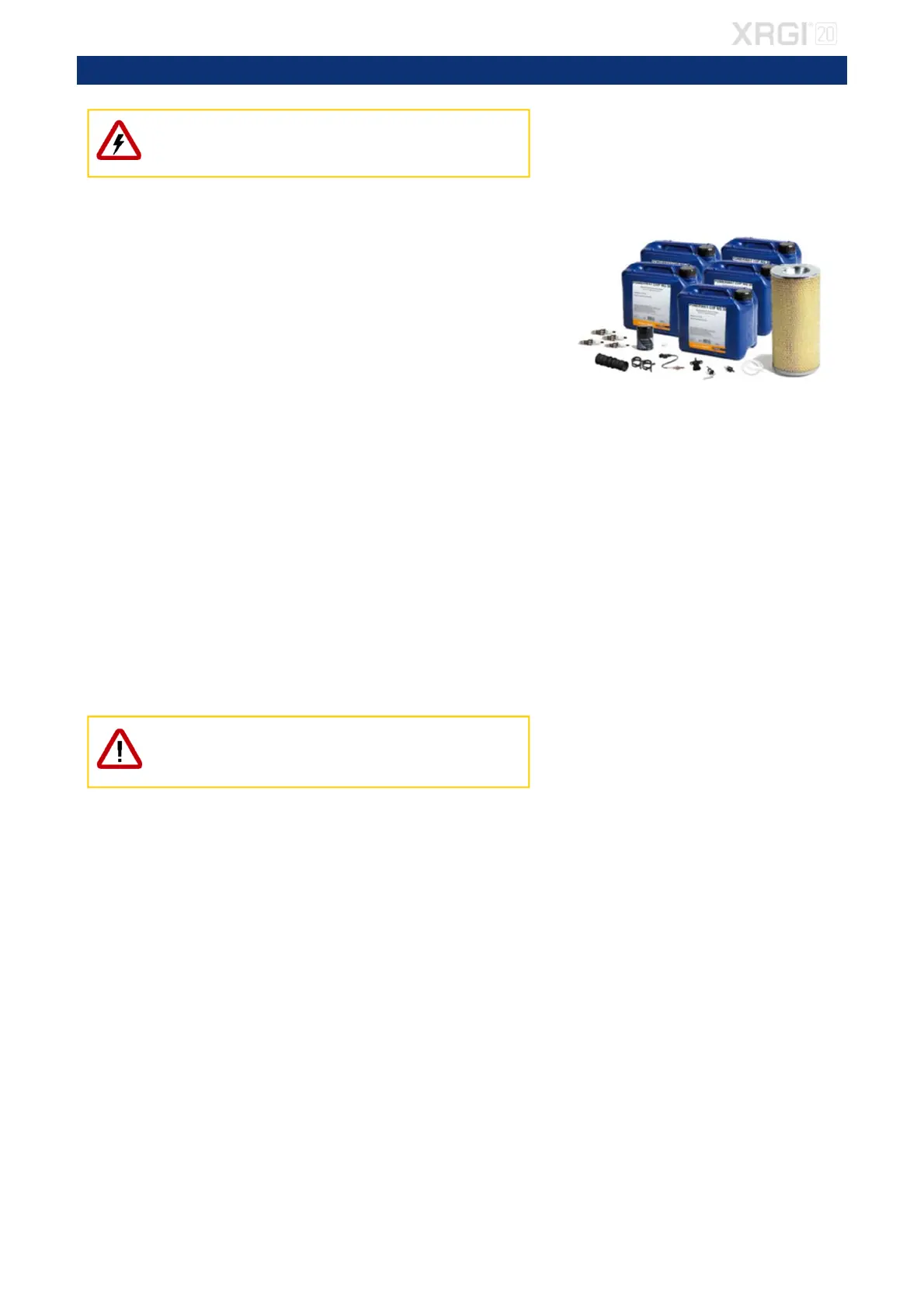

Fig. 7.01
Only perform maintenance work on the XRGI
®
system when it is not in
operation and is fully cooled down! Otherwise, there is a risk of burns from
hot components and/or scalding if substances should escape.
REQUIRED MATERIAL
EC POWER service kit for XRGI
®
20 (Item No.: 01KIT2583) consisting of:
 1 pc. exhaust gas compensator  5 pcs. engine oil
 2 pcs. hose clamps Ø47  1 pc. zero pressure hose Ø2,0x1,5
 1 pc. hose clamps Ø21  1 pc. plug for measuring point
 1 pc. foam gasket  1 pc. vacuum sensor
 1 pc. injector  1 pc. vacuum filter
 1 pc. lambda sensor  4 pcs. spark plugs
 1 pc. air filter  1 pc. oil filter
EXTRA
 1 pc. Power Wrap  1 pc. Rubber plug
REQUIRED TOOLS
 Oil suction pump  Flue gas analyser
 Oil filter spanner  Lambda sensor top long ½
 Torque wrench  Retaining ring pliers
 Water pump pliers  20.8 mm spark plug wrench
 Hose clamp pliers  17 mm socket insert
 Funnel  3 mm Allen screwdriver
 Feeler gauge  5 mm Allen screwdriver
 FS2009USB programming device  17 mm open-ended spanner
Before commencing maintenance work, shut down the XRGI
®
system at
the user level on the iQ-Control Panel and at the main switch. Close the
gas valve and unplug the Q-Heat Distributor.
7. MAINTENANCE XRGI® 20
