Incorporating ECG and DA Signals
38 KOSMOS User Guide

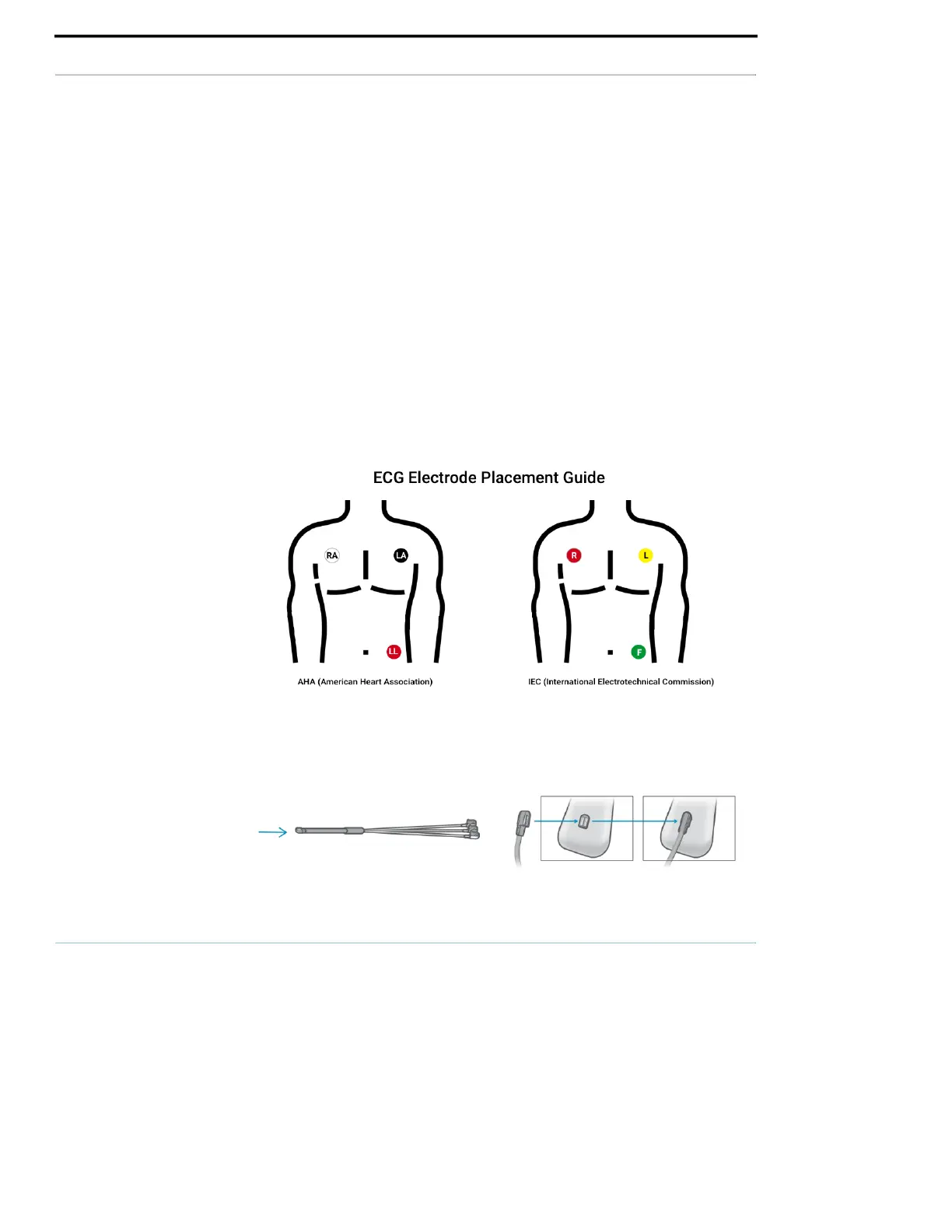

To use the Kosmos ECG patient cable:
1. Place the ECG electrodes of your choice (this is where the ECG clips will be
attached to) on the patient, making sure they are placed symmetrically
opposite from each other and match the color coding.
USA recommendation (American Heart Association):
• RA: Right arm (white clip)
• LA: Left arm (black clip)
• LL: Left leg (red clip)
IEC recommendation:
• R: Right arm (red clip)
• L: Left arm (yellow clip)
• F: Left leg (green clip)
2. Plug the connector end of the Kosmos ECG patient cable into the
magnetic slot on Kosmos Torso.
