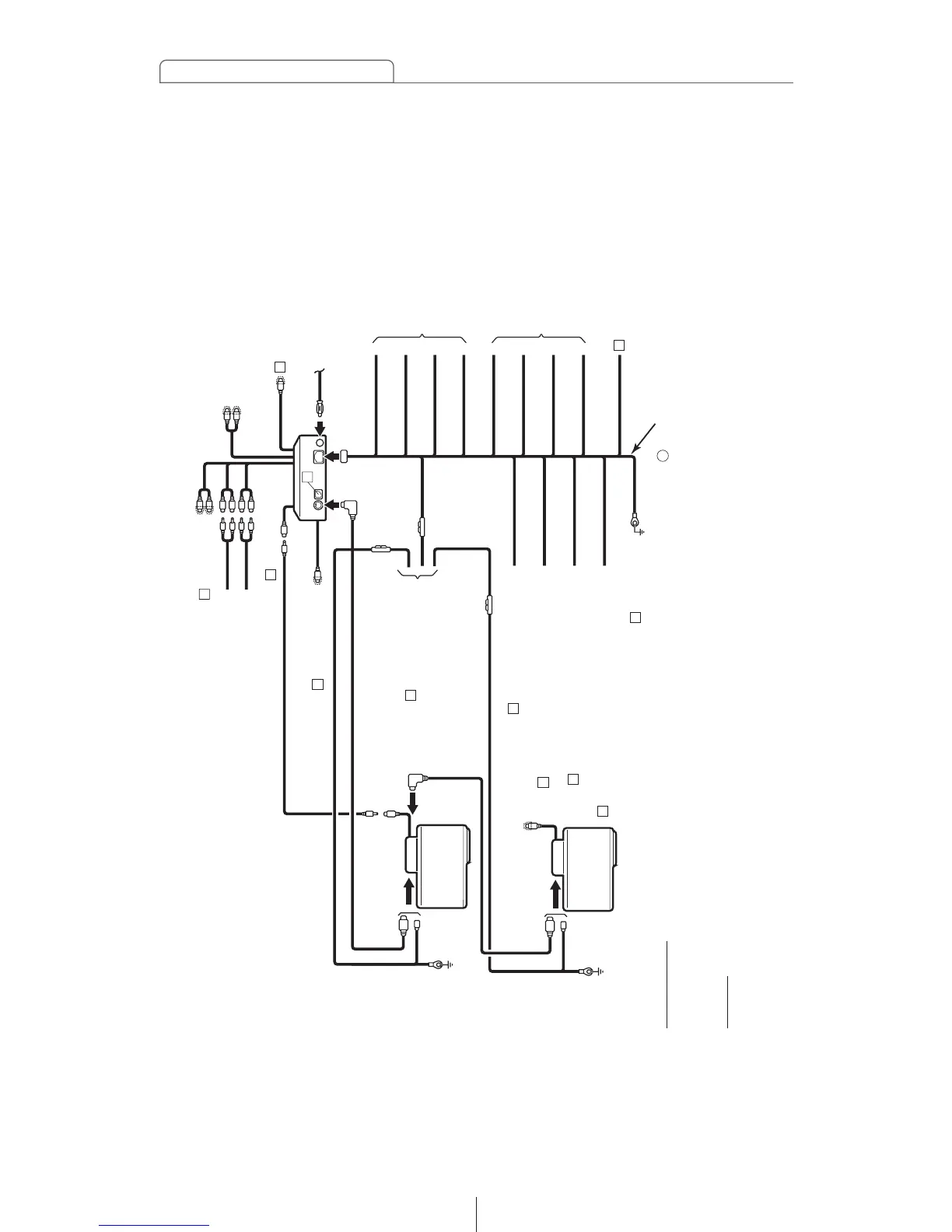

TO POWER ANTENNA RELAY (Supply)
TO HEADLIGHT SWITCH (Illumination)
TO TURN-ON LEAD OF EACH UNIT (Supply)
TO ACC (Power Supply)
1
TO BATTERY+12V
(Permanent Supply)
2
TO GROUND
Pink (+)
Purple/Black (
-
)
Black
Purple (+)
Green/Black (
-
)
Blue/White
Orange/White
Blue
Red
Yellow
Green (+)
Gray/Black (
-
)
White/Black (
-
)
White (+)
13P
13P
13P
16P
CD5444
2P
CH3083
CH3083
13P
2P
ANTENNA PLUG
Gray (+)
3
4
5
6
CELLULAR PHONE
(For mute)
12
E-COM OUTPUT
DIGITAL IN
13
CD5444+ CH3083 + CH3083 + Power Amplifier
3)
INTERCONNECTING CABLE
12
INSULATE EACH
WIRE WITH TAPE
INSULATE EACH
WIRE WITH TAPE
(A)
(B)
NO CONNECTION
TO SIGNAL INPUT
OF AUXILIARY
POWER AMPLIFIER
To Portable unit
(MP3 Player, MD Player, etc)
NON-FADER
10
14
16
15
3) CD5444 + CH3083 + CH3083 + Power Amplifier
Caution
Never connect the power supply to the speaker leads, otherwise it cause damage to the main unit.
Note
1.The switch on the back side of CD changer (A) must be set the "L" position.
2.The switch on the back side of CD changer (B) must be set the "H" position.
3.CD changer (B) does not have digital output.
