Eclipse Rotary Actuator Instruction Manual 904-7/24/06
29
This parameter resets the actuator to the default
setpoints. The default setpoints are as follows:
• Automatic input signal;
• Normally open (NO) contact;
• Clockwise (CW) rotation;
• 0° for LO, or control signal loss position;
• 0° for LF, or low re contact stop;
• 0° for LL, or low re contact release;
• 5° for LS, or low re contact sense;
• 85° for HS, or high re contact sense;
• 90° for HH, or high re contact release, and
• 90° for HF, or high re contact stop.
To reset the parameters to the default setting:

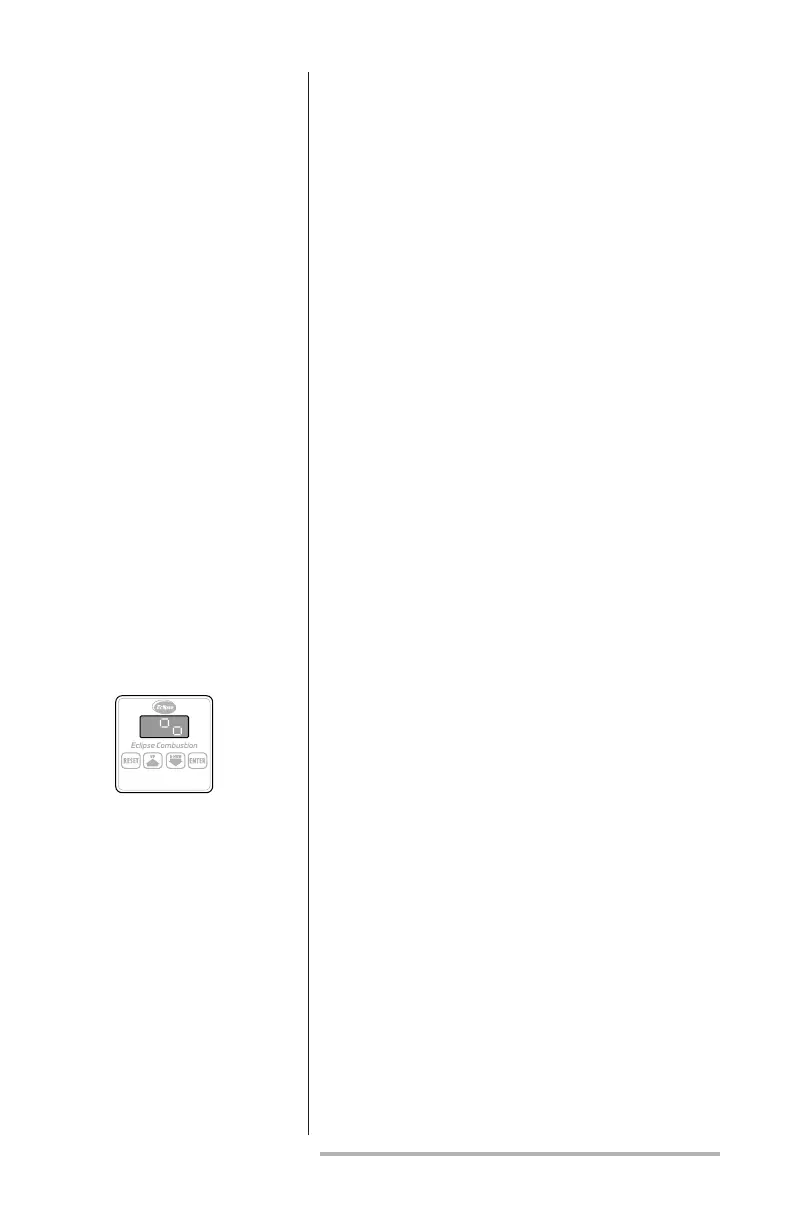

1. Press the ENTER key; the message “SC” will
appear on the display.
2. Press either the UP or DOWN key until the
number “20” appears on the display.
3. Press the RESET key to complete the sequence.
If the motor is stalled for more than 30 seconds,
the motor will stop and the display will indicate
the percentage (%) sign.
Normal display and operation will resume auto-
matically when the actuator is commanded to
move in the opposite direction from the stall. To
reverse direction while in the automatic mode,
change either the analog input signal, apply a digital
low re or high re input, or change to the manual
mode. In some cases it may be necessary to dis-
connect the mechanical coupling to the valve.
stalleD motor
Default setpoints
