Eclipse Rotary Actuator Instruction Manual 904-7/24/06
25
high fire ContaCt
sense (hs)
4. Press the DOWN key; the message “LS” will
appear on the display.
5. Press either the UP or DOWN key until your
desired number (the desired degree of shaft
rotation) appears on the display; this number
must be of greater value than the desired low
re contact release (LL) number.
6. Press the RESET key to complete the sequence.
Note:
Please refer to Figure 5 on page 24 for an illustra-
tion of the next two parameters.
This description of the contact state is for the
normally open mode. As the shaft travels from
low to high, the HS parameter sets where the
high re contact closes. For most applications this
value should be kept at least 5 degrees below HF.

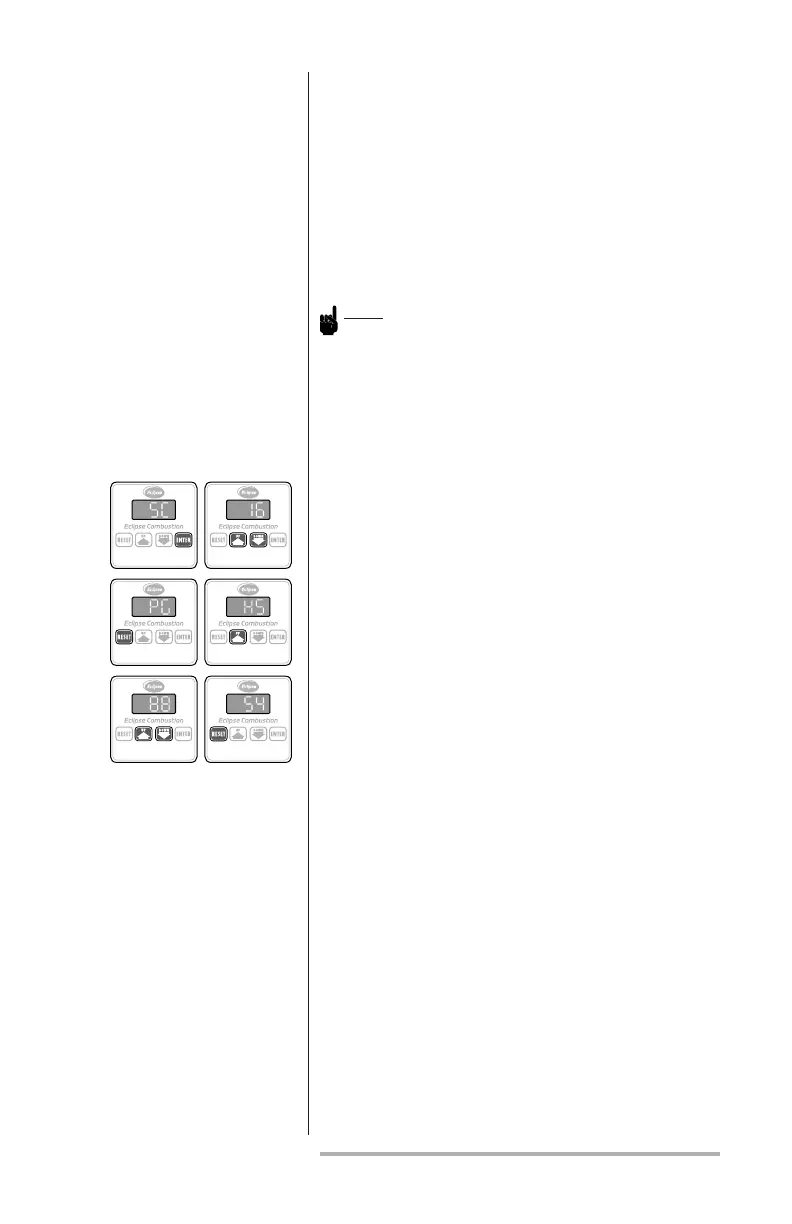

1. Press the ENTER key; the message “SC” will
appear on the display.
2. Press either the UP or DOWN key until the
number “16” appears on the display.
3. Press the RESET key; the message “PG” will ap-
pear on the display.
4. Press the UP key; the message “HS” will appear
on the display.
5. Press either the UP or DOWN key until your
desired number (the desired degree of shaft
rotation) appears on the display; this number
must be of lesser value than the desired high
re contact release (HH) number.
6. Press the RESET key to complete the sequence.
