Eclipse Rotary Actuator Instruction Manual 904-7/24/06
23
This description of the contact state is for the nor-
mally open mode. As the shaft travels from high
to low, the LL parameter sets where the low re
contact opens back up after having closed at the
LS setting. For most applications this value should
be kept at zero (0). Set LF to 0 rst if you need to
set LL to 0. Do not view LL through code 17 after
it is set. Instead, press the RESET key twice to see
all parameters (See p. 28, "Examine Setpoints.")

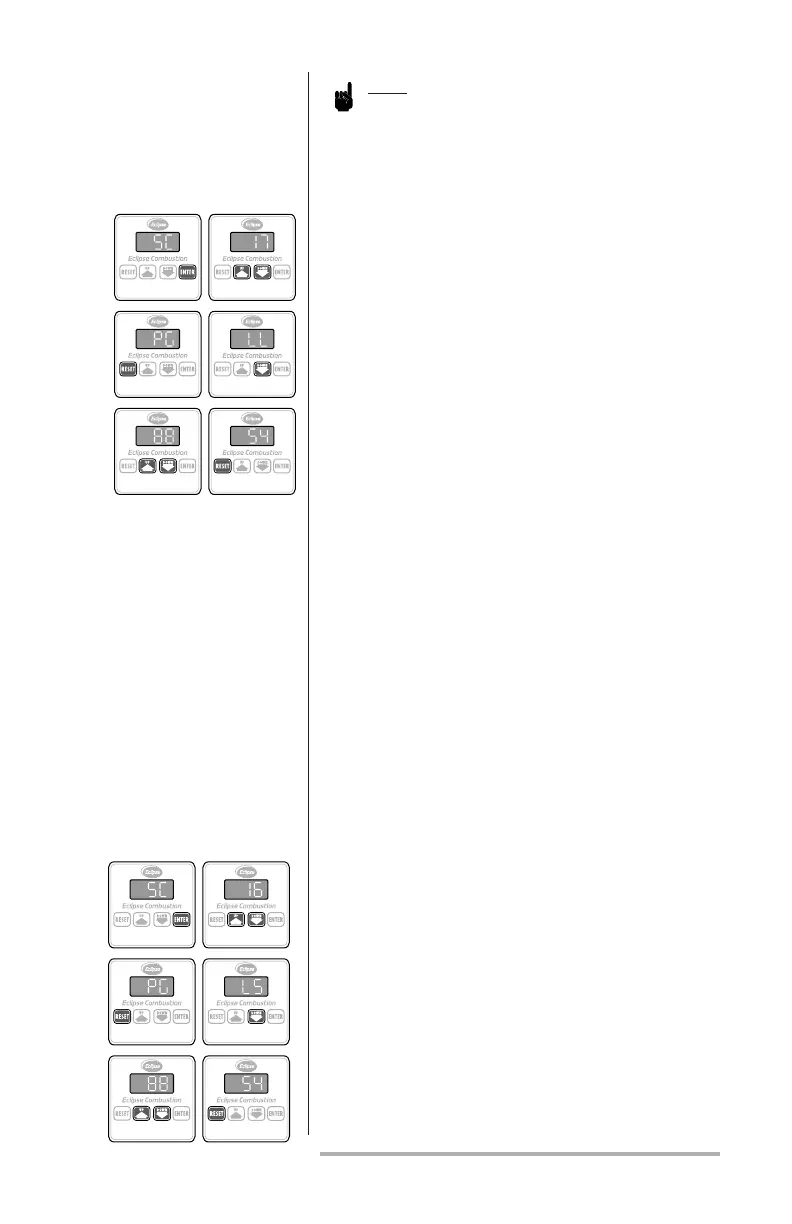

1. Press the ENTER key; the message “SC” will
appear on the display.
2. Press either the UP or DOWN key until the
number “17” appears on the display.
3. Press the RESET key; the message “PG” will ap-
pear on the display.
4. Press the DOWN key; the message “LL” will
appear on the display.
5. Press either the UP or DOWN key until your
desired number (the desired degree of shaft
rotation) appears on the display; this number
must be of lesser value than the desired low
re contact sense (LS) number.
6. Press the RESET key to complete the sequence.
This description of the contact state is for the nor-
mally open mode. As the shaft travels from high
to low, the LS parameter sets where the low re
contact closes. For most applications this value
should be kept at least ve degrees above LF or
LO, whichever is higher.
1. Press the ENTER key; the message “SC” will
appear on the display.
2. Press either the UP or DOWN key until the
number “16” appears on the display.
3. Press the RESET key; the message “PG” will ap-
pear on the display. (Continued on page 25)
low fire ContaCt
release (ll)
low fire ContaCt
sense (ls)
Note:
Please refer to Figure 5 on page 24 for an
illustration of the next two parameters.
