In this section you will nd the information about the
actuators various selectable parameters, and how they
can be programmed through the keypad.

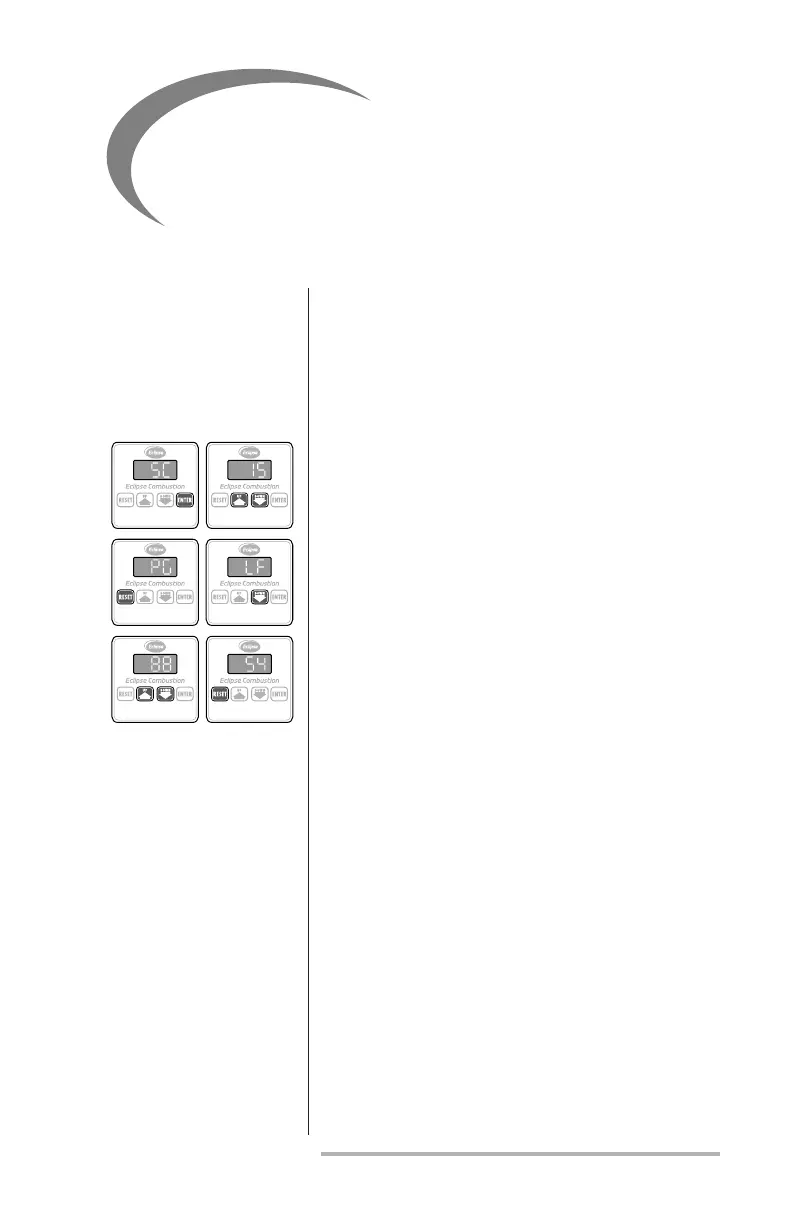

This parameter sets the minimum shaft travel position:
1. Press the ENTER key; the message “SC” will ap-
pear on the display.
2. Press either the UP or DOWN key until the
number “15” appears on the display.
3. Press the RESET key; the message “PG” will ap-
pear on the display.
4. Press the DOWN key; the message “LF” will ap-
pear on the display.
5. Press either the UP or DOWN key until your
desired number (the desired degree of shaft rota-
tion) appears on the display.
6. Press the RESET key to complete the sequence.
3
Parameter Selection
low fire stop
(lf)
introDuCtion
1 2
3
4
5 6
