4.8 Measurement procedure gas analysis: Data processing

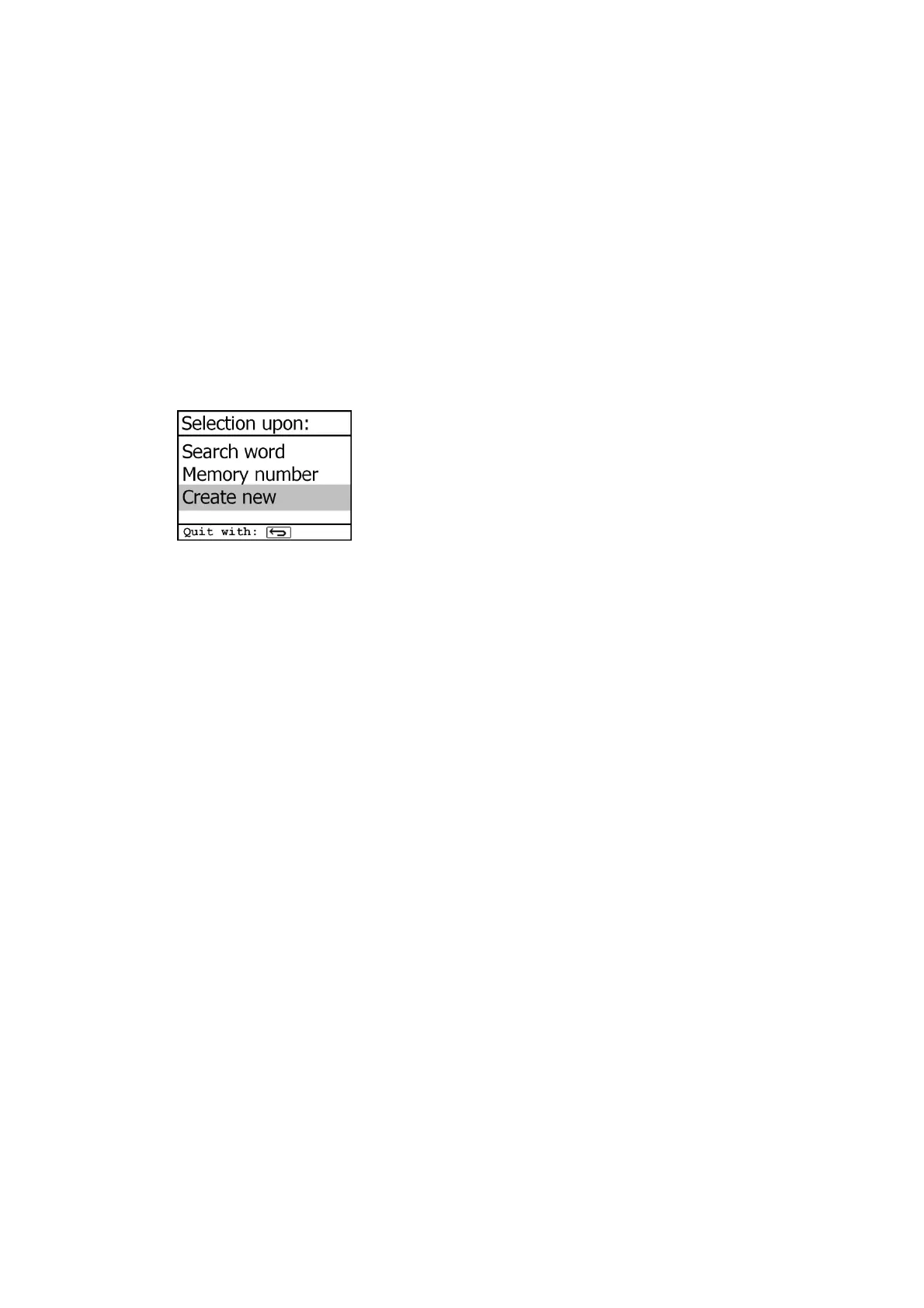

To call up plant data already recorded or to create a new file, the following possibilities are available:
4.8.1 Create new
(is automatically selected by first use of a MM card)
To create a new file, a numerical number should be assigned. Select „Create new“ and
confirm with <Enter>. Input a random number (max. 16 figures) using the keyboard:
- use the cursor keys <Up/Down/Right/Left> to select
the figure (selected figure outlined by a black background)
- press <Enter> to accept the figure (press <F2> to delete
the last figure if needed)
- repeat this procedure until the desired number is complete.
Example: "25.09.2009"
Tip: We suggest a date-related input to easily find the data
record later on via the search function.
After confirming with <F1> it is possible to enter a text via the keyboard (max. 6 lines
with 20 characters each) which is printed out and can be used for data processing
purposes. Proceed as follows:
- select text line 1 using the cursor keys <Up/Down> and confirm with
<Enter>
- select with <F3> the keyboard mode (4 keyboard modes are available)
- select with the cursor keys <Up/Down/Right/Left> the desired
character (selected character outlined by a black background)
- press <Enter> to accept the character
(press <F2> to delete the last character)
- repeat this procedure until the desired text is complete.
- proceed as follows to correct a character:
- press <F4> to interrupt the character selection
- use the cursor keys <Right/Left> to select the character requiring correction
- activate with <F4> the character selection and correct character
- return with <F1> to character selection and call up next line for
process
The input is closed with <ESC> and the next available data record is activated. Press
<ESC> to return to the gas analysis menu.
Memory number: For check of the plant already stored in the instrument, the selection
upon record number is most appropriate.
