6.2 delta-T Measurement
With the ecom-EN3 a difference temperature measurement is possible. For measurements at
pipes (e.g. water-in and water-out of heating systems), special temperature sensors are
needed, available from your authorized ecom agency. Out of the main menu point
"Diagnostics" select the sub-menu "dT measurement" and confirm with <Enter>.

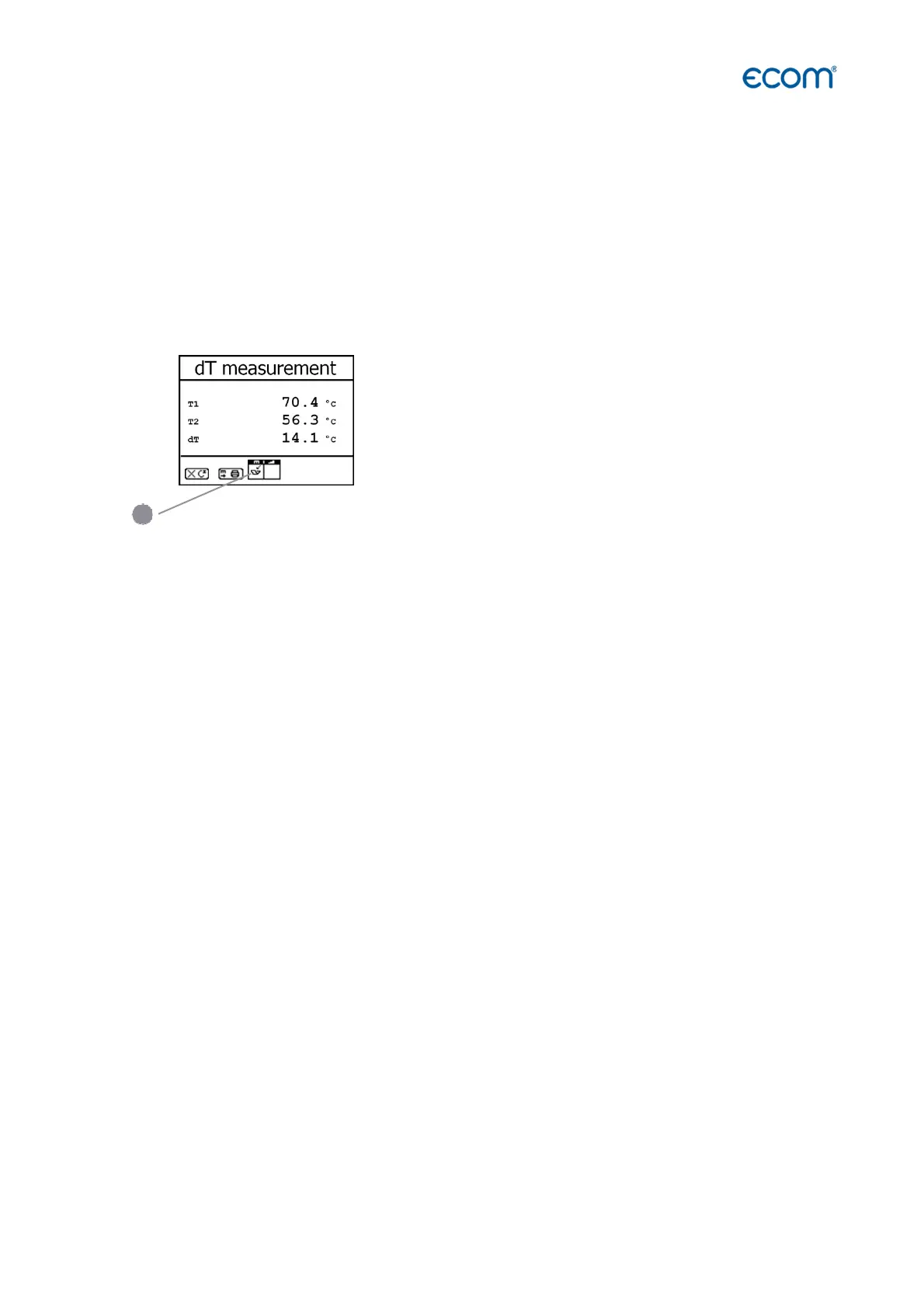

The instrument indicates the temperature T1 (sensor at connection „Gas temperature“), the
temperature T2 (sensor at connection „Air temperature“) and the difference between both
temperatures (T1 - T2). Press <Save> to store the result in the intermediate memory. A
printout can be started with <Print>.
Measurement stored in intermediate memory
1
