Page 56
ecom-EN3

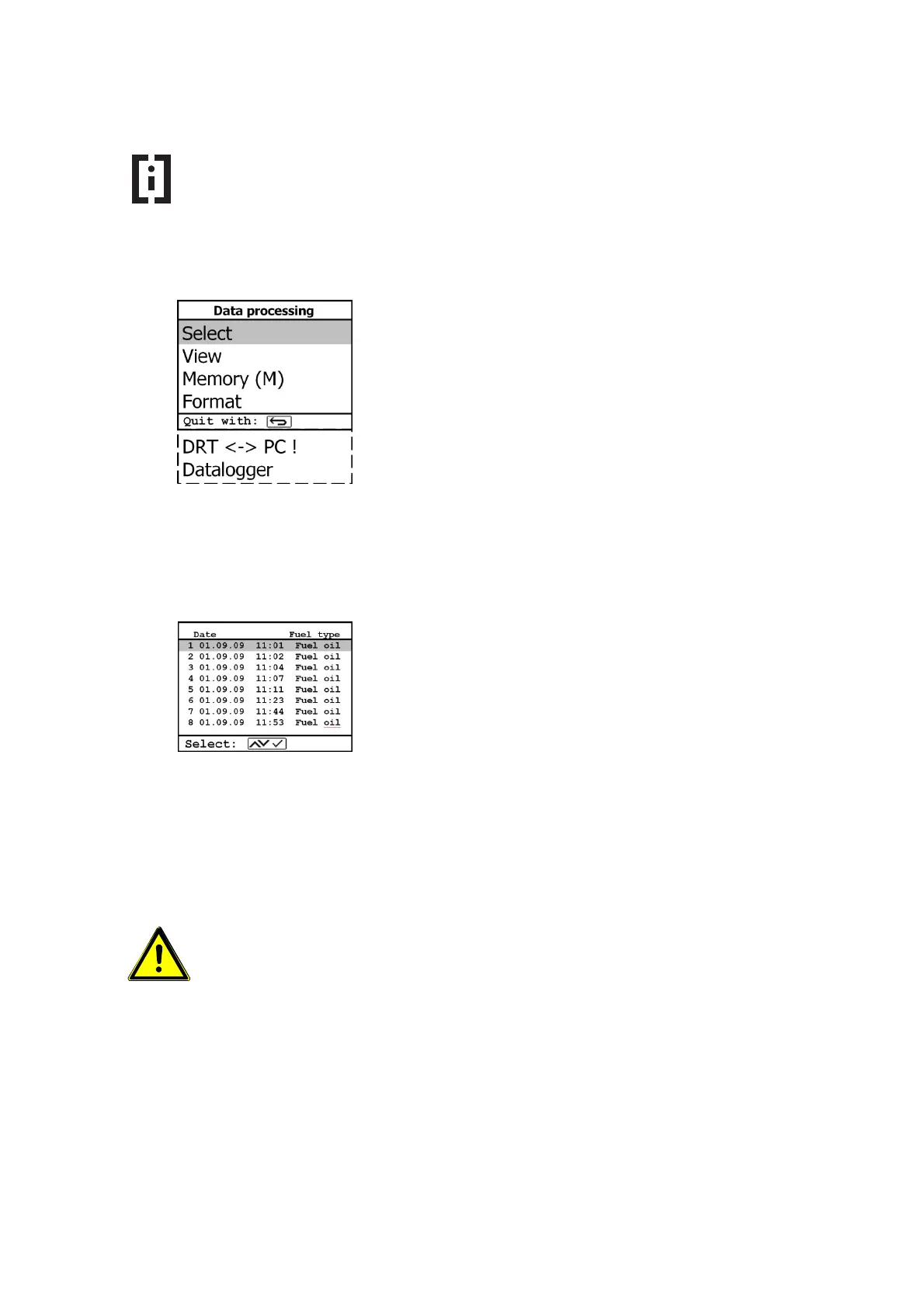

10. Data processing
10.1 Storage on MM card
Hint
When an MM card is inserted into the instrument, it is used to store measured
values and plant data. This storage must be triggered manually or can be
automated (data logger)
By selecting the menu item "Select", plants for the
assignment of measured values can be searched for or
set up (for further information see chapter "Measurement
procedure gas analysis: Data processing").
By selecting the menu item "View", stored measured
values can be viewed (for further information see chapter
"Measurement procedure gas analysis: Data
processing").
By selecting the menu item "Memory (M)", all stored
measurements (sorted by record number) can be viewed.
Single measurement results can be called up as
follows:
- Select desired record number with the
cursor keys and confirm with <Enter>
- confirm desired record number with
<Enter>
- Scroll with the cursor keys <up/down>
- Press <ESC> to exit
By selecting the "Format" menu item, the entire MM card can be formatted. This
function is usually needed by initial adjustment of the instrument at our factory
(preparation of MM card for data recording).
WARNING When the "Format" menu item is selected and confirmed, all stored data on
the MM card inserted in the instrument will be irrevocably deleted.
Select the menu item "Format" only if ALL data present on
the MM card are no longer required.
